RPDU SWITCHED UNIT LEVEL MONIT ORING EC 20A 120V 1.9KW VERTICA

SKU: JV7781VPN: VP5N20A4

Limited Stock

$1,306.66

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Switched Rack PDU allows remote rebooting of outlets to power cycle unresponsive IT equipment
VP5N20A4 is a rack mount PDU with (24) NEMA 5-20R receptacles and an L5-20P plug

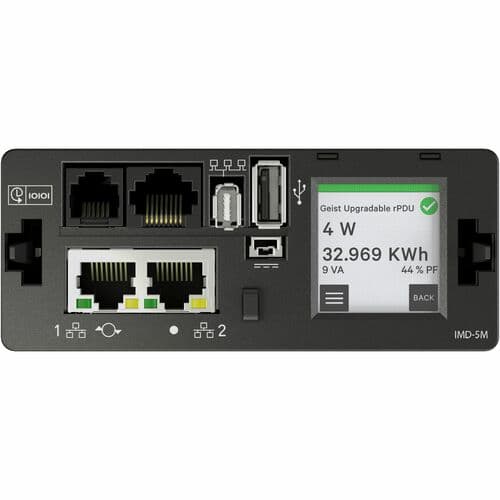

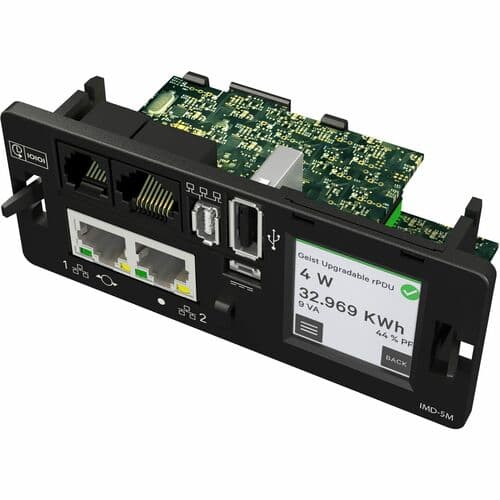

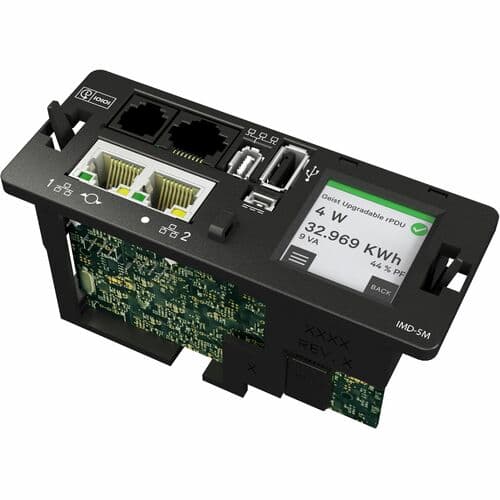

Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
Helps ensure that data and operations are protected with the enhanced security features
Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The Vertiv Geist Switched RPDU VP5N20A4 is a 20A, 120V, 0U, vertical rack power distribution unit with input power monitoring and outlet level switching. It has (24) NEMA 5-20R receptacles and an L5-20P plug providing 1.9kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.

Tech Specs

RPDU SWITCHED UNIT LEVEL MONIT ORING EC 20A 120V 1.9KW VERTICA specifications
USB	Yes
Depth	2.6"
Width	2"
Height	66.3"
Features	Touch Screen Display
PDU Type	Switched Outlet Monitored
Brand Name	Vertiv Geist
Management	<li>DHCP </li><li>HTTP </li><li>HTTPS </li><li>IPv4 </li><li>IPv6 </li><li>LDAP </li><li>NTP </li><li>RADIUS </li><li>RSTP </li><li>SSH </li><li>SMTP </li><li>SNMP (v1/v2c/v3) </li><li>Syslog </li><li>TACACS+</li>
Mount Type	Rack-mountable
Cord Length	10 ft
Form Factor	Rack
Rack Height	0U

Show all 45 specs

Serial Port	Yes
Color Family	Black
Manufacturer	Vertiv
Product Line	Geist Upgradeable
Product Name	GU VP5N20A4 PDU
Product Type	PDU
Input Current	20 A
Input Voltage	120 V AC
Modem (RJ-11)	No
Modem (RJ-12)	Yes
Modem (RJ-22)	No
Product Color	Black
TAA Compliant	Yes
Product Family	Geist Upgradeable N
Product Series	N
Network (RJ-45)	Yes
Receptacle Type	NEMA 5-20R
Country of Origin	United States
Receptacle Detail	24 x NEMA 5-20R
Input Voltage Range	100 V AC - 120 V AC
Plug/Connector Type	NEMA L5-20P
Power Rating (Watt)	1900 W
Mounting Orientation	Vertical
Output Voltage Range	100 V AC - 120 V AC
Weight (Approximate)	18 lb
Plug/Connector Detail	1 x NEMA L5-20P
Remote Outlet Switching	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	VP5N20A4
Certifications & Standards	<li>UL</li><li>c-UL Listed 62368</li><li>c-UL Listed 60950</li>
Manufacturer Website Address	http://www.vertiv.com/
Additional Warranty Information	5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
