VERTIV - GEIST - MTS & BTO

RPDU RACK TRANSFER SWITCH MONITORED UNIT LEVEL 20A 120V 1.9KW

SKU: NP5766VPN: VA4N21A0

RPDU RACK TRANSFER SWITCH MONITORED UNIT LEVEL 20A 120V 1.9KW

Key Features

  • Vertiv Geist Rack Transfer Switch gives backup power to single corded devices in case of power loss
  • VA4N21A0 is a 20A, 120V, rPDU with 1.9kW power capacity and (10) NEMA 5-20R receptacles

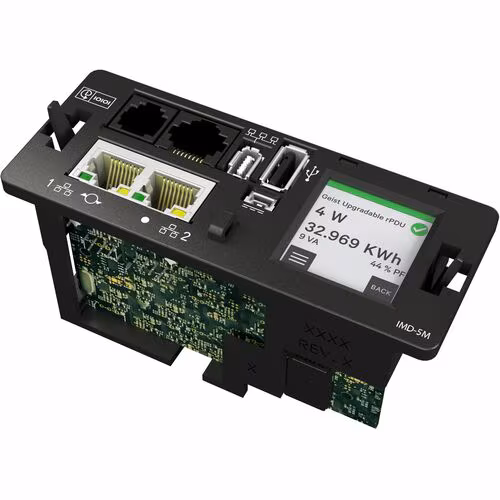

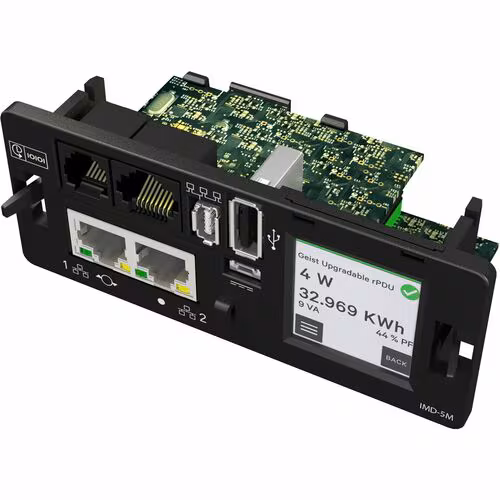

  • Vertiv Geist Next-Generation IMD has a 128x128 high-contrast LCD for monitoring data
  • Helps ensure that data and operations are protected with the enhanced security features
  • Vertiv Geist rPDUs are individually tested, UL-Listed, TAA-Compliant, and RoHS certified
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The Vertiv Geist Rack Transfer Switch VA4N21A0 is a 20A, 120V, single phase unit level monitored rPDU with (10) NEMA 5-20R receptacles and (2) NEMA 5-20P plug that provides 1.9kW of power capacity. This unit provides backup power to single-corded devices and helps ensure continuity in the event of power loss. It quickly detects power loss on the main source and automatically switches to the secondary source within less than 4 to 8 milliseconds. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.

Tech Specs

RPDU RACK TRANSFER SWITCH MONITORED UNIT LEVEL 20A 120V 1.9KW specifications
USBYes
Depth18"
PhaseSingle Phase
Width17"
Height1.7"
FeaturesTouch Screen Display
PDU TypeMonitored
Brand NameVertiv Geist
Management<li>DHCP </li><li>HTTP </li><li>HTTPS </li><li>IPv4 </li><li>IPv6 </li><li>LDAP </li><li>NTP </li><li>RADIUS </li><li>RSTP </li><li>SSH </li><li>SMTP </li><li>SNMP (v1/v2c/v3) </li><li>Modbus TCP/IP </li><li>Syslog </li><li>TACACS+</li>
Mount TypeRack-mountable
Cord Length20 ft
Form FactorRack
Show all 47 specs
Rack Height1U
Serial PortYes
Color FamilyBlack
ManufacturerVertiv
Product LineGeist Upgradeable
Product NameGU VA4N21A0 PDU
Product TypePDU
Input Current20 A
Input Voltage120 V AC
Modem (RJ-11)No
Modem (RJ-12)Yes
Modem (RJ-22)No
Product ColorBlack
Product ModelAN03E1R5-10S203-2ST5ST5A011-D
TAA CompliantYes
Product FamilyGeist Upgradeable N
Product SeriesN
Network (RJ-45)Yes
Receptacle TypeNEMA 5-20R
Country of OriginUnited States
Receptacle Detail10 x NEMA 5-20R
Input Voltage Range100 V AC - 120 V AC
Plug/Connector TypeNEMA 5-20P
Power Rating (Watt)1900 W
Mounting OrientationHorizontal
Output Voltage Range100 V AC - 120 V AC
Weight (Approximate)19 lb
Plug/Connector Detail2 x NEMA 5-20P
Remote Outlet SwitchingNo
Environmental ComplianceChina Restriction of Hazardous Substances (China RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberVA4N21A0
Certifications & Standards<li>UL</li><li>c-UL Listed 62368</li>
Manufacturer Website Addresshttp://www.vertiv.com/
Additional Warranty Information5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
