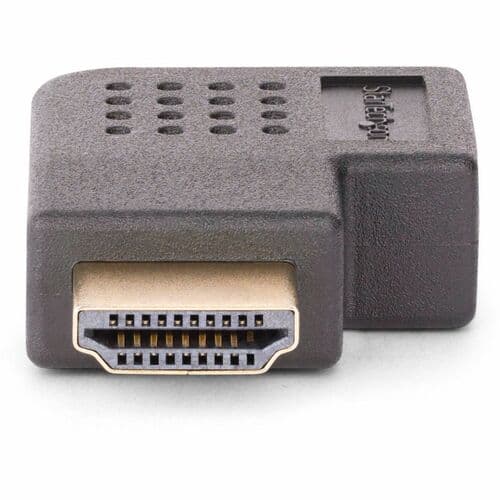

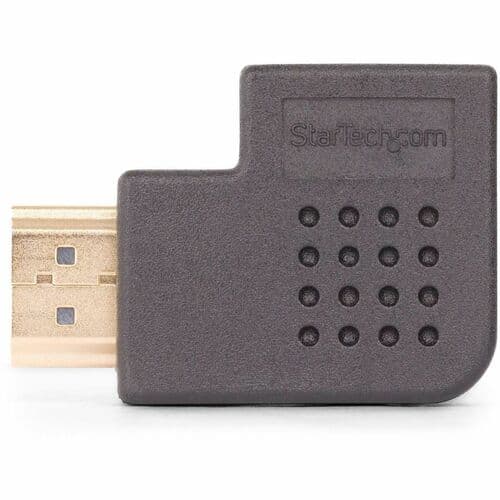

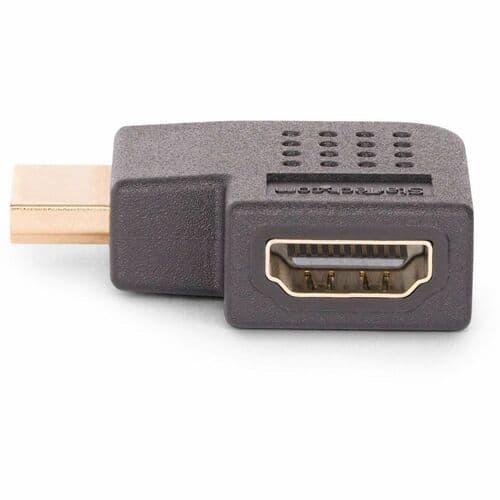

RIGHT ANGLE HDMI ADAPTER M/F 90-DEGREE/HDMI 2.0/4K 60HZ
SKU: JW4640VPN: HDMI2HDMIMFRA
RIGHT ANGLE HDMI ADAPTER M/F 90-DEGREE/HDMI 2.0/4K 60HZ
Key Features
- REDUCE CONNECTOR STRAIN: Compact Right Angle HDMI Adapter attaches an HDMI port to a cable to alleviate port, connector, and cable strain from bending; Bi-directional HDMI male-to-female adapter serves as a Port Saver, reducing wear on HDMI ports
- FULL-FEATURED HDMI 2.0: High Speed HDMI supports Dynamic HDR10 w/10-bit processing for vibrant picture quality; 7.1 and 32-ch audio w/Audio Channel Return (ARC); Connect to UHD displays, cameras, and dedicated video/media devices; HDMI 1.4/1.2 compatible
- QUALITY CONSTRUCTION: Durable Gold-plated contacts tested beyond 10,000 insertions to ensure long-term physical connector integrity; Textured PVC outer shell provides enhanced grip and protects against wear and tear

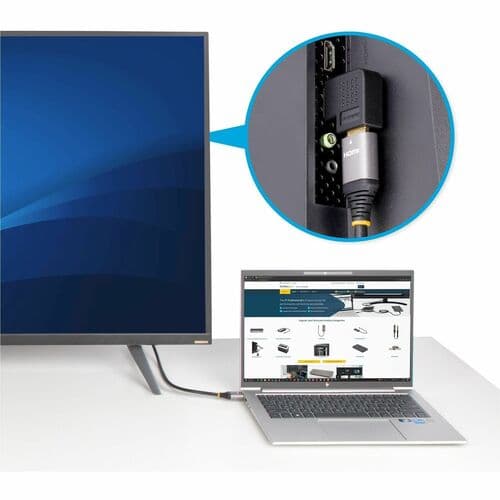

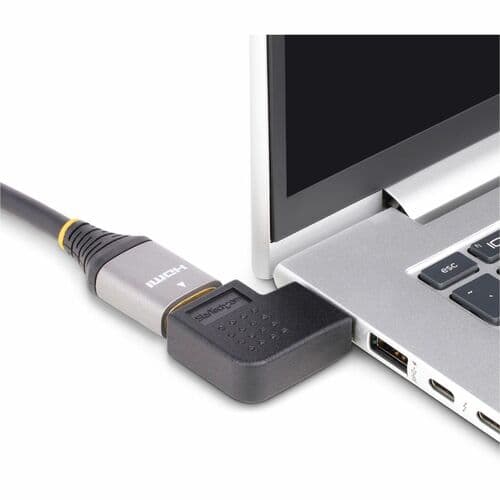

- APPLICATIONS: Ideal for installations with limited clearance behind devices (i.e., mounted TVs or AV cabinets); Facilitate better access to concealed or rear and side-facing HDMI ports; HDMI 2.0 Port Saver reduces strain on HDMI ports from frequent use
- TECHNICAL SPECIFICATIONS: Black; Right-Angled HDMI Male to Female; Bi-directional; Bus-powered; High Speed HDMI 2.0; 4K 60Hz; Supports HDR10/HDCP 2.2/CEC/ARC; 32 & 7.1ch audio; 18Gbps Bandwidth
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
This compact Right-Angled HDMI Adapter acts as a port saver, mitigating strain on HDMI ports and connectors. Ideal for installations with limited depth, it enables access to concealed or rear-facing HDMI ports, and reduces wear and tear resulting from frequent connections.

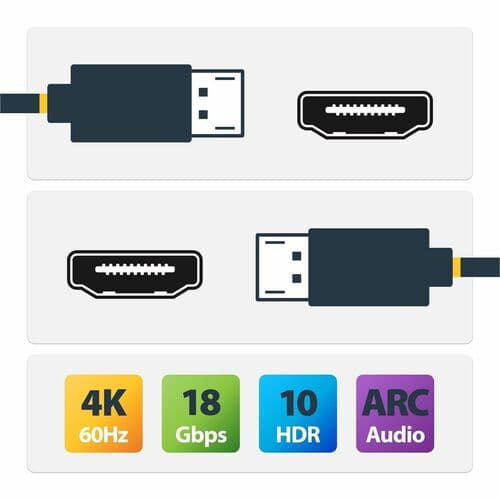

Full HDMI Capability
This Right Angle HDMI adapter supports all HDMI 2.0 specifications:
- Resolutions up to 4K 60Hz
- High speeds with a bandwidth of up to 18Gbps
- High Dynamic Range (HDR) for higher contrast ratio and vibrant colors
- Crystal clear sound with up to 32 channels of digital audio
- Supports 21:9 cinema aspect ratio and 3D video
- Backward compatible with previous versions of HDMI
- Supports Consumer Electronics Control (CEC)
Enjoy Optimal Picture Quality
Fully compatible with HDMI 2.0 equipment, this HDMI 2.0 Port Saver maintains optimal picture quality at resolutions up to 4K 60Hz and bandwidths up to 18Gbps. Backward compatibility ensures seamless integration with existing HDMI devices.
Tech Specs
| Width | 1.1" |
|---|---|
| Height | 0.5" |
| Length | 1.3" |
| Features | Passive |
| Brand Name | StarTech.com |
| Adapter Type | HDMI |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Product Name | HDMI Audio/Video Adapter |
| Product Type | A/V Adapter |
| Product Color | Black |
| Contact Plating | Gold |
Show all 27 specsShow fewer
| Material Details | <p>Textured PVC - Outer Shell</p> |
|---|---|
| Product Material | Polyvinyl Chloride (PVC) |
| Connector Plating | Gold |
| Packaged Quantity | 1 |
| Number of Conductors | 19 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Manufacturer Part Number | HDMI2HDMIMFRA |
| Connector Type on First End | HDMI 2.0 Digital Audio/Video |
| Connector Type on Second End | HDMI 2.0 Digital Audio/Video |
| Manufacturer Website Address | http://www.startech.com |
| Maximum Resolution Supported | 3840 x 2160 |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
| Connector on First End Details | 1 x HDMI 2.0 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x HDMI 2.0 Digital Audio/Video - Female |
