RACK ATS 100/120V 15A 5-15 IN 10 5-15R OUT

SKU: 08RQ69VPN: AP4450A

In Stock

$2,115.00$1,370.77

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Rack automatic transfer switch
PDU
Apc ats
Rack ats
Power distribution

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

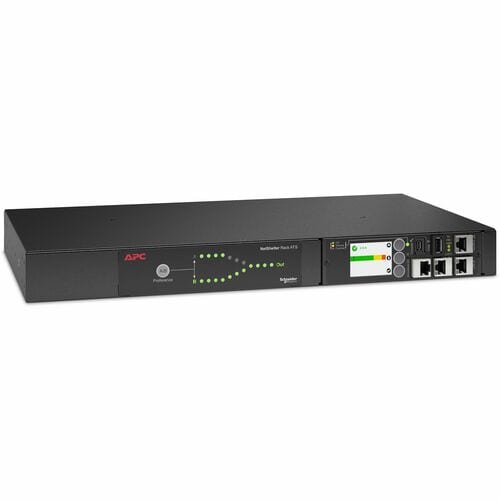

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4450A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4450A is single phase 1U Rack ATS with 15A rated current, 100V/120V rated voltage and 1440VA load capacity. For North America region, the Regulatory Derated Input Current is 12A. It comes with 2 NEMA 5-15P inlet and 10 NEMA 5-15R outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.

Tech Specs

RACK ATS 100/120V 15A 5-15 IN 10 5-15R OUT specifications
Depth	9.3"
Width	17"
Height	1.7"
Current	15 A
Brand Name	APC by Schneider Electric
Cord Length	95.64"
Form Factor	Rack-mountable
Rack Height	1U
Receptacles	10 x NEMA 5-15R
Color Family	Black
Manufacturer	Schneider Electric SA
Product Line	NetShelter

Show all 38 specs

Product Name	NetShelter Automatic Transfer Switch
Product Type	Automatic Transfer Switch
Input Voltage	100 V AC
Product Color	Black
Output Voltage	120 V AC
WEEE Statement	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Package Contents	<ul> <li>NetShelter Automatic Transfer Switch</li> <li>Mounting Hardware</li> <li>Rack Mounting Brackets</li> <li>Serial Configuration Cable</li> </ul>
Country of Origin	Philippines
Mounting Location	Front
For Country/Region	United States
REACH free of SVHC	No
Mounting Preference	No Preference
Plug/Connector Type	NEMA 5-15P 12A (2P + E)
Weight (Approximate)	9.70 lb
REACH Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP4450A_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
EU RoHS Declaration URL	https://download.schneider-electric.com/files?p_Doc_Ref=AP4450A_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	AP4450A
Product Take Back Program	No
Certifications & Standards	PSE\|TÜV-C\|TÜV-NURTL\|VCCI Class A
RoHS Exemption Information	https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP4450A_ROHS_DECLARATION&p_FileName=AP4450AKIT_ROHS_DECLARATION_US.pdf
Environmental Certification	RoHS
Manufacturer Website Address	http://www.schneider-electric.com
End of Life Manual Availability	https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712015_EN
Environmental Profile Availability	https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712015EN
