QUAD M.2 PCIE ADAPTER CARD MKEY AHCI NVME M2 SSD PCIE 4.0

SKU: 06HK36VPN: QUAD-M2-PCIE-CARD-B

In Stock

$155.65

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

HIGH PERFORMANCE: Install 4x PCIe M.2 SSDs (NVMe or AHCI) into a computer or server through an available x16 PCI Express 4.0 slot for ultra-fast data access, capable of reaching high performance read and write speeds up to 7.8GBps per drive
WIDE COMPATIBILITY: This Quad M.2 PCIe Adapter card was extensively tested to ensure compatibility with Samsung 980 Pro, 970 EVO, 950 EVO, SM951, and other 2242/2260/2280/22110mm PCIe M-Key M.2 SSDs | Not compatible with SATA based M.2 drives
BACKWARDS COMPATIBILITY: Compatible with PCIe 3.0 motherboards with PCIe bifurcation and an available x16 PCIe slot | PCIe bifurcation is required | This M.2 Adapter works with most workstation and server OS's such as Windows, Windows Server, and Linux
SOFTWARE RAID FUNCTIONALITY: The M.2 PCI Express adapter enables access to the M.2 PCIe SSDs individually | With OS or 3rd party RAID software, build an array to add redundancy, more capacity, or performance through RAID 0, RAID 1, RAID 5, RAID 10 or JBOD
VENTED BRACKETS: This PCIe M.2 NVMe Adapter Card comes with a pre-installed full profile bracket | The vented bracket allows for better air flow which helps maintain optimal and reliable performance while helping to avoid drive throttling

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

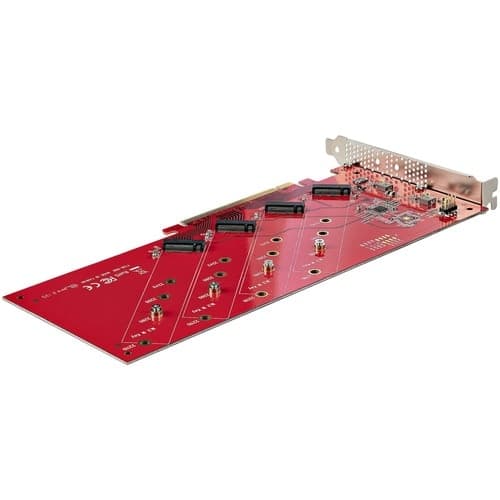

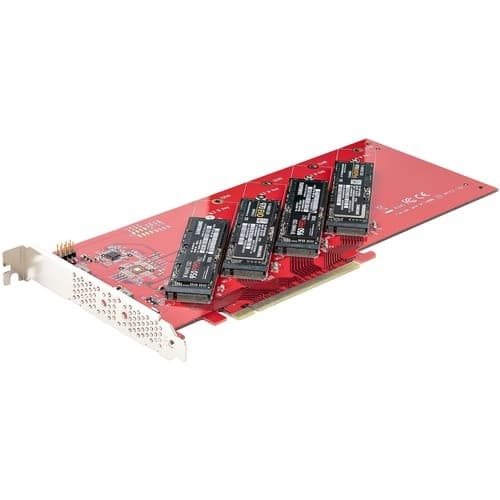

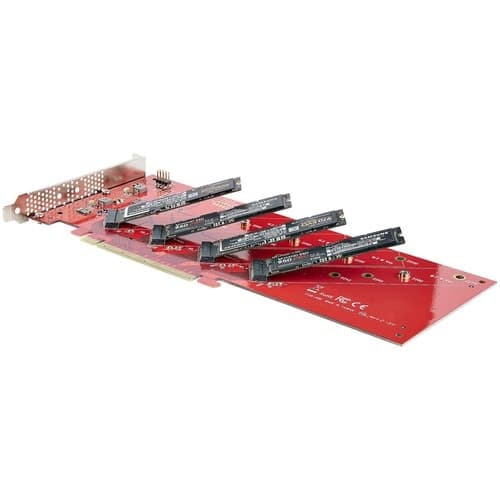

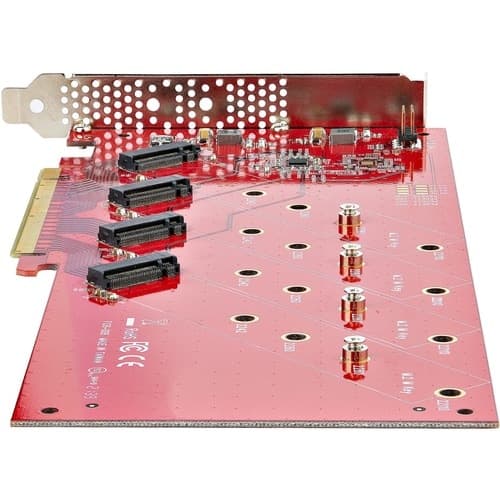

This Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.

Boost System Performance

Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.

Access Four M.2 PCIe SSDs Simultaneously

No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.

Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy or enhancing system performance.

Wide Compatibility

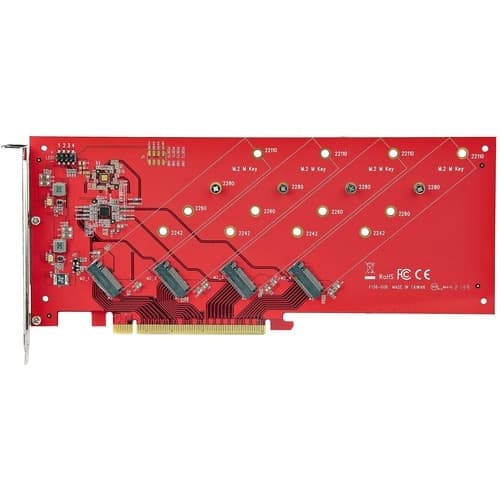

The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M2. Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation.

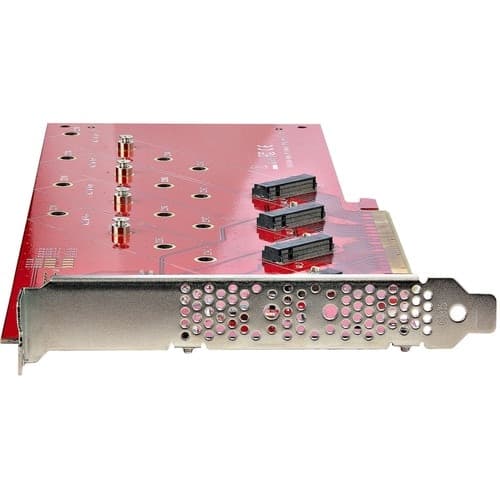

Vented Brackets

The pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.

The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance

Tech Specs

QUAD M.2 PCIE ADAPTER CARD MKEY AHCI NVME M2 SSD PCIE 4.0 specifications
Brand Name	StarTech.com
Color Family	Red
Manufacturer	StarTech.com
Product Name	PCI Express x16 to Quad M.2 PCIe SSD Adapter with Bifurcation
Product Type	M.2 to PCI Express Adapter
Compatibility	<p>Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)</p>
Product Color	Red
Package Contents	<ul> <li>PCI Express x16 to Quad M.2 PCIe SSD Adapter with Bifurcation</li> <li>1 x Quick-Start Guide</li> <li>1 x Set of Mounting Screws</li> </ul>
Country of Origin	Taiwan
Packaged Quantity	1
Additional Information	<p><b>Hardware</b></p> <ul> <li>Interface: M.2 PCIe</li> </ul> <ul> <li>Bus Type: PCI Express</li> <li>Number of Drives: 4</li> <li>Drive Size: 22 mm - M.2 NVMe</li> <li>Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)</li> <li>Drive Installation: Fixed</li> <li>SupportedDriveHeight(s):</li> <ul> <li>2242<br />2260<br />2280<br />22110</li> </ul> </ul> <p><b>Performance</b></p> <ul> <li>Type and Rate: PCI Express 4.0 (16 Gbps)</li> <li>Hardware Raid Supported: No</li> <li>Hot Swap Capability: No</li> <li>MTBF: 4,353,192 hrs</li> </ul> <p><b>Connector(s)</b></p> <ul> <li>DriveConnectors: 4 - M.2 (NVMe, M-Key, PCIe x4)</li> <li>HostConnectors: 1 - PCI Express x16</li> </ul> <p><b>Software</b></p> <p>OS Compatibility: No Drivers or Software Required</p>
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)

Show all 16 specs

Environmentally Friendly	Yes
Manufacturer Part Number	QUAD-M2-PCIE-CARD-B
Certifications & Standards	<ul> <li>CE</li> <li>FCC</li> </ul>
Manufacturer Website Address	http://www.startech.com
