QDD-4QSFP28-400-CU2-5M COMP TAA 200G-CU PASSIVE TWINAX DAC 2.5M
SKU: 9CA689VPN: QDD4QS28400CU2-5M-AO
QDD-4QSFP28-400-CU2-5M COMP TAA 200G-CU PASSIVE TWINAX DAC 2.5M
Key Features
- Compliant with QSFP-DD MSA Specification Rev 3.4
- SFF-8679 electrical interface compliant
- SFF-8636 management interface support
- Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd
- Supports aggregate data rates of 100 and 200Gbps
- I2C for EEPROM communication
- Pull-to-release slide latch design
- 28AWG through 32AWG cable
- Excellent EMI/EMC performance 360-degree cable shield termination
- Advantage dual side pre-solder automated assembly technologies
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

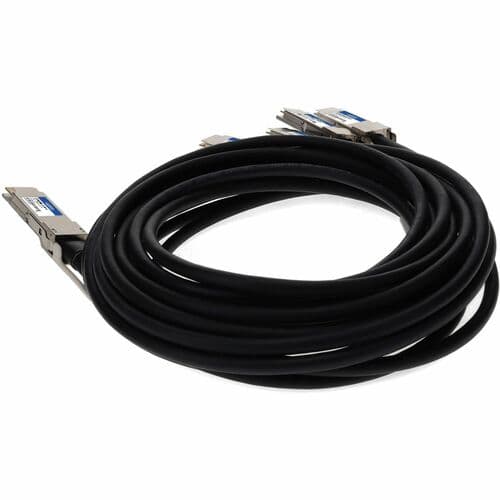

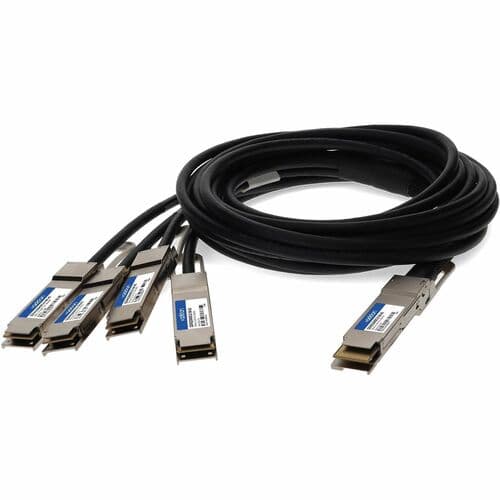

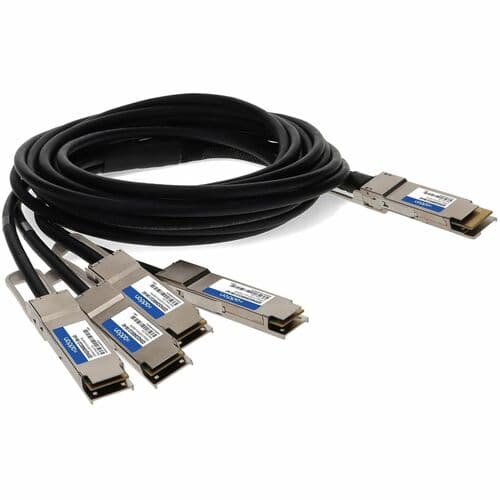

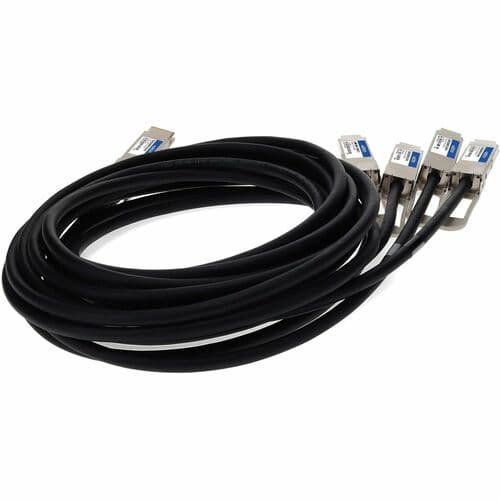

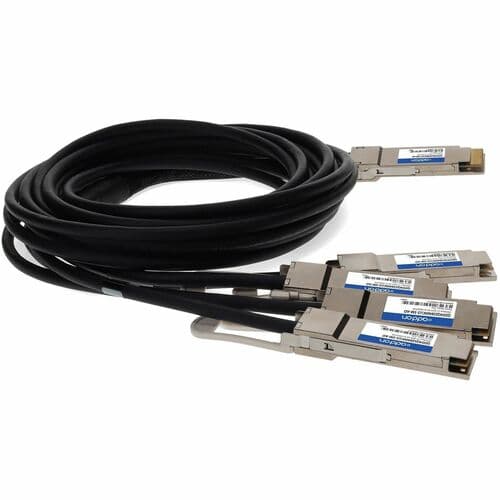

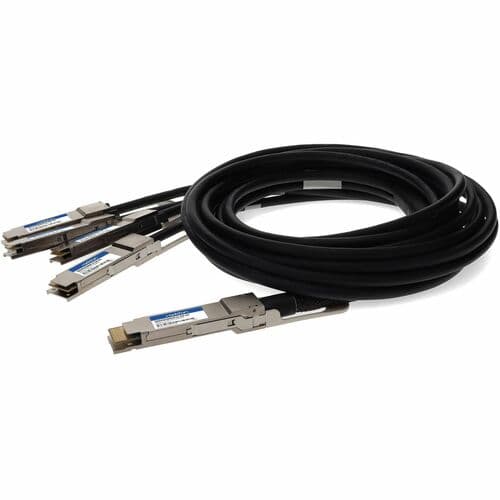

This is a Cisco QDD-4QSFP28-400-CU2-5M compatible TAA compliant 200GBase-CU QSFP-DD 200G to 4xQSFP28 50G NRZ direct attach cable that operates over passive copper with a maximum reach of 2.5m (8.2ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Tech Specs
| Width | 0.5" |
|---|---|
| Height | 0.5" |
| Length | 98.4" |
| Features | Passive |
| Shielding | Yes |
| Brand Name | AddOn |
| Cable Type | Twinaxial |
| Jacket Type | VW-1 |
| Cable Length | 8.20 ft |
| Manufacturer | AddOn |
| Product Name | Cisco Twinaxial Network Cable |
| Product Type | Network Cable |
Show all 32 specsShow fewer
| TAA Compliant | Yes |
|---|---|
| Jacket Material | Polyvinyl Chloride (PVC) |
| Device Supported | Server |
| Product Material | Copper |
| Country of Origin | United States/United Kingdom |
| Packaged Quantity | 1 |
| Data Transfer Rate | 200 Gbit/s |
| American Wire Gauge | 28 AWG |
| Weight (Approximate) | 0.30 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | QDD4QS28400CU2-5M-AO |
| Certifications & Standards | MSA Compliant |
| Connector Type on First End | QSFP-DD Network - Male |
| Connector Type on Second End | QSFP28 Network - Male |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x QSFP-DD Network - Male |
| Connector on Second End Details | 4 x QSFP28 Network - Male |
