PLUGABLE TBT4 USB4 HDMI DOCK THUNDERBOLT 4 USB4 DUAL HDMI DOCK

SKU: JL7690VPN: TBT4-UD5

In Stock

$279.99$194.13

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Thunderbolt Certified & Award-Winning Performance: Officially recognized as the Best Thunderbolt Dock 2025 by Wirecutter, this Thunderbolt docking station is Intel Evo certified. With 13 high-performance ports, dual 4K 60Hz HDMI, 100W Power Delivery (96W Certified), and 40Gbps Thunderbolt 4 speed.

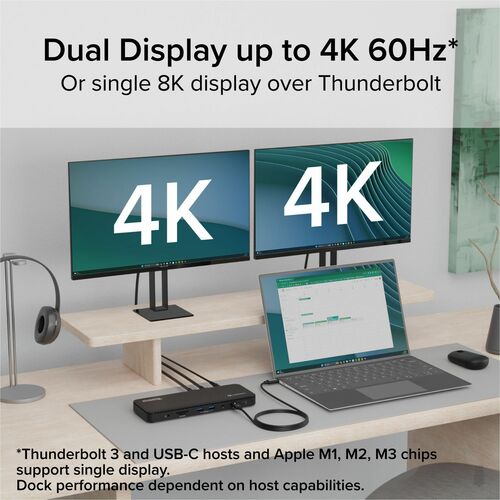

Dual 4K or Single 8K Display Support: This Thunderbolt 4 laptop docking station connects two 4K 60 Hz HDMI displays or one 8K monitor when used with Thunderbolt 4, Thunderbolt 5, or USB4 laptops.
Thunderbolt 3 and non-Thunderbolt USB-C ports can only output a single external display. On macOS, base M1 and M2 systems support a single external display. Base M3 supports dual display in clamshell mode.
Thunderbolt 4 Performance: This premium Thunderbolt dock delivers ultra-fast 40Gbps speeds, 15W charging via the downstream Thunderbolt 4 port, and robust performance for USB-C peripherals, high-speed storage, and dual displays.
Compatibility: A top-tier Mac docking station and perfect for modern setups. This USB C dock works seamlessly with Thunderbolt 4, Thunderbolt 5, or USB4 systems running Windows 10+. On macOS, dual display is only supported on M4, M5 M3 Pro/Max, M2 Pro/Max and M1 Pro/Max models, as well as base M3 models in clamshell mode. Single display is supported on Windows Thunderbolt 3 and non-Thunderbolt USB-C ports, as well as base M1 and M2 MacBooks

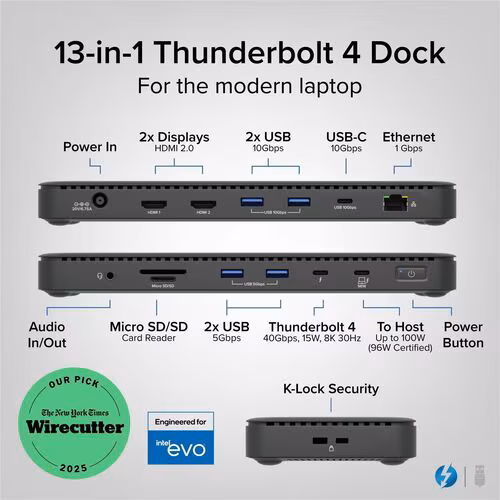

Comprehensive 13-Port Design: 2× HDMI, 1× Thunderbolt 4 downstream (40Gbps, 15W charging, 8K), 4× USB (10Gbps and 5Gbps), 1× USB-C (10Gbps), SD/microSD, audio combo jack, Gigabit Ethernet, and K-lock slot. Plugable quality testing ensures long-term reliability.

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

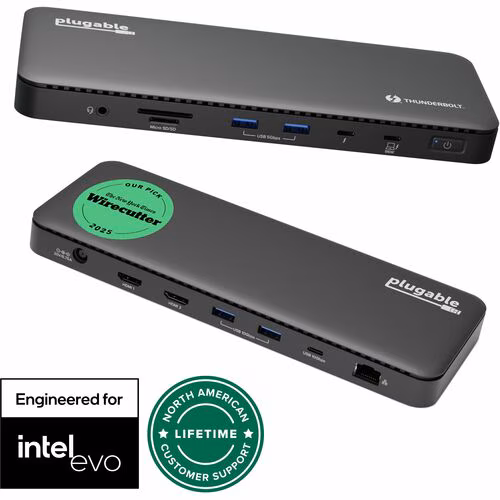

A "do-it-all" dock, the Thunderbolt Certified TBT4-UD5 Plugable Docking Station was awarded The Best Thunderbolt Docking Station by Wirecutter in 2025. It stands out as a versatile and powerful hub for modern workspaces. Its robust design includes an array of 13 ports, catering to a wide range of connectivity needs.Starting with the 40Gbps Thunderbolt 4 host port, this TB4 dock offers plenty of bandwidth to support two HDMI ports, each capable of driving dual 4K 60Hz displays. A downstream 40Gbps Thunderbolt 4 port is also included to provide high-speed connectivity for advanced Thunderbolt-based applications, such as fast storage devices.

In addition to its display options, this Thunderbolt USB4 dock boasts a USB-C port with a 10Gbps transfer rate, ideal for quick file transfers and efficient data management. There are also 4x USB 3.0 ports (2x 10Gbps, 2x 5Gbps), perfect for connecting a variety of peripherals like keyboards, mice, and external drives. Throw in SD and Micro SD slots, a combo audio jack, Gigabit Ethernet, and a slot for a K lock, and this setup ensures that users can create a powerful and integrated workstation.

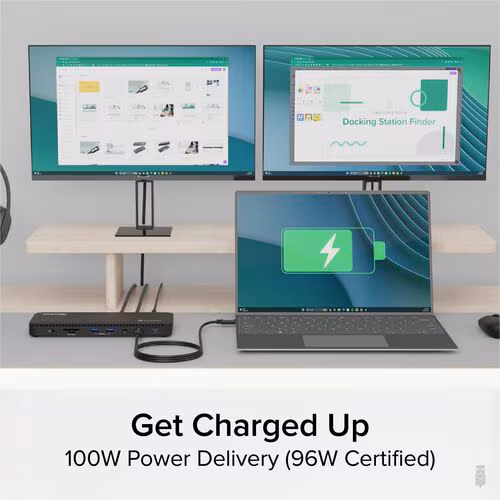

Speaking of power, the TBT4-UD5 docking station Thunderbolt 4 packs it in with up to 100W Power Delivery (96W certified) - more than enough for most power-hungry laptops. Especially useful in business and education environments, the Plugable TBT4-UD5 Docking Station delivers exceptional functionality and convenience.

Tech Specs

PLUGABLE TBT4 USB4 HDMI DOCK THUNDERBOLT 4 USB4 DUAL HDMI DOCK specifications
HDMI	Yes
Width	8.90"
Height	0.90"
Features	Power Delivery Pass-through
Brand Name	Plugable
Thunderbolt	Yes
Manufacturer	Plugable Technologies
Product Name	Docking Station
Product Type	Docking Station
Device Supported	Notebook
Packaged Quantity	1
USB Power Delivery	96W

Show all 17 specs

Charging Capability	Yes
Number of HDMI Ports	2
Weight (Approximate)	12.90 oz
Manufacturer Part Number	TBT4-UD5
Manufacturer Website Address	http://www.plugable.com
