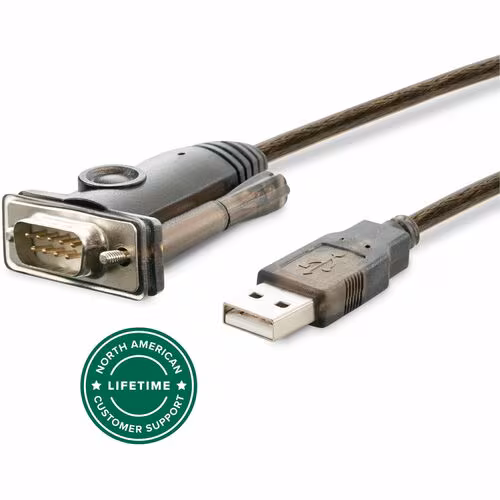

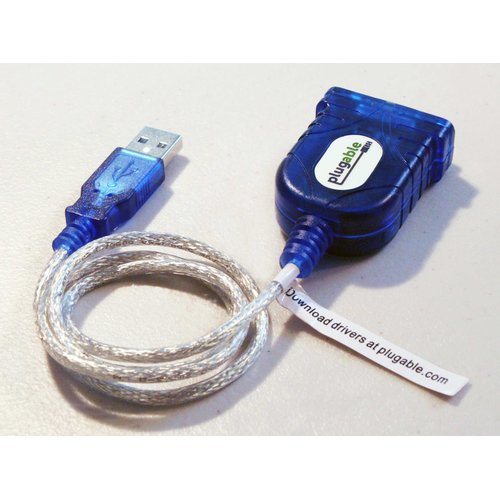

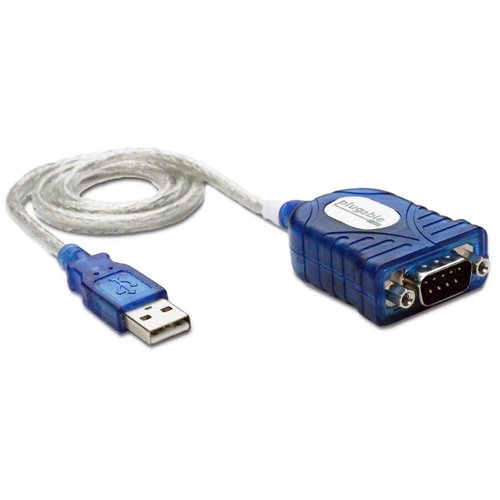

PLUGABLE PL2303-DB9 USB TO SERIAL ADAPTER

SKU: 1N4665VPN: PL2303-DB9

In Stock

$28.46

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

USB To RS232 Serial Adapter (5ft) - Connect legacy DB-9 serial communications devices to a modern computer over USB. Powered by USB; no external power needed
Legacy Support - Add a 9-pin DB9 RS-232 serial port to any modern computer, replaces built-in or PCIe serial adapters, recommended for use with a serial cable or NULL modem cable
Compatibility Guarantee - Genuine Prolific PL2303GT Chipset for widest possible compatibility with Windows (11, 10, 8.x, 7, and Vista), Mac, Linux, and other platforms
Flexible - The USB RS-232 adapter supports a programmable baud rate from 75bps to 1Mbps. This RS232 USB Adapter allows for a plug-and-play creation of a COM port. Features COM retention to maintain port number and settings across reboots
Warranty and Support - Questions only an expert can answer? When you contact our support team, you're connecting with the engineers who design our devices. Every Plugable product is backed by our North American support team-even before purchase, and a 2-year limited parts and labor warranty after purchase

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Features a Prolific PL2303GT chipset for the best combination of performance and wide driver support. Drivers available for Windows 11, 10, 8.1, 8. 7, and Vista through Windows Update or downloaded from our website, macOS and Linux rely on embedded serial port drivers for modern operating systems. Not compatible with ARM-based Windows (MS Surface).
Compatibility
Works with devices with RS-232 serial ports like: other PCs with RS-232 ports, Bluetooth serial adapters, PDAs, GPS receivers, routers, firewalls, modems, printers, embedded character displays, scan tools, sonar units, embedded boards, etc. Works with software like: HyperTerminal, TeraTerm, WinDBG, all open source serial software on Linux, etc.
Connector compatibility note

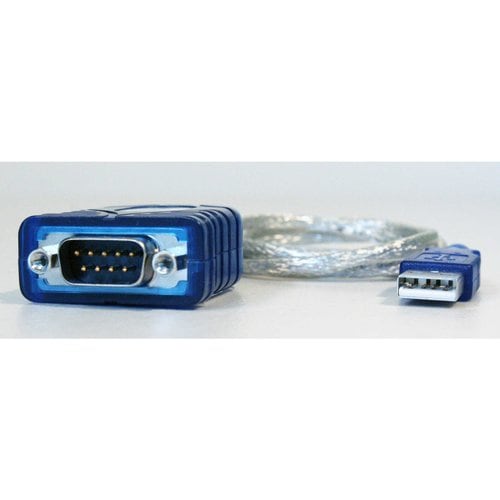

The DB9 DTE male connector with retention screws. NULL Modem or straight through serial adapter cables may be required for connecting to some devices.
Updated
This adapter uses the latest Prolific PL2303GT chipset with a robust molded plastic adapter end and 2-foot USB cable.

Tech Specs

PLUGABLE PL2303-DB9 USB TO SERIAL ADAPTER specifications
Width	0.6"
Features	Screw Lock
Brand Name	Plugable
Cable Type	Serial/USB
Cable Length	2 ft
Manufacturer	Plugable Technologies
Product Name	USB to Serial Adapter Compatible with Windows, Mac, Linux
Product Type	Data Transfer Cable
Device Supported	Router
Package Contents	<ul> <li>USB to RS-232 DB9 Serial Adapter (Prolific PL2303HX Rev D Chipset)</li> <li>Driver CD</li> <li>Quick Installation Guide</li> </ul>
Country of Origin	China
Packaged Quantity	1

Show all 20 specs

Data Transfer Rate	230 kbit/s
Weight (Approximate)	0.16 lb
Manufacturer Part Number	PL2303-DB9
Connector Type on First End	USB Type A - Male
Connector Type on Second End	DB-9 RS-232 Serial - Male
Manufacturer Website Address	http://www.plugable.com
Connector on First End Details	1 x USB Type A - Male
Connector on Second End Details	1 x 9-pin DB-9 RS-232 Serial - Male
