VERTIV-1 PHASE UPS
PDU BASIC SURGE 1U 15A 120V (10 )5-15R
SKU: 5PF263VPN: 27819

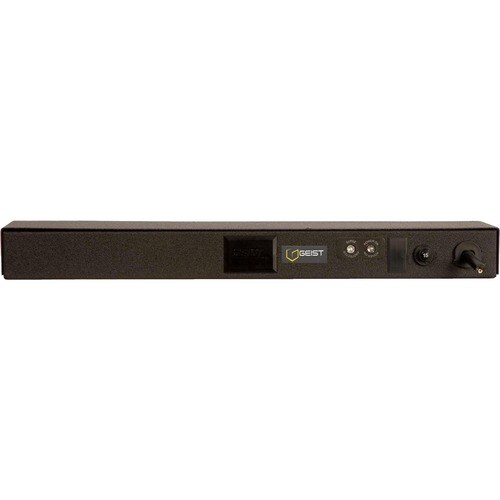

PDU BASIC SURGE 1U 15A 120V (10 )5-15R
Key Features
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- With basic PDU it becomes the easiest way to distribute facility UPS or generator power to multiple rack loads
- NEMA 5-15R receptacle type to ensure maximum dependability and optimal performance
- NEMA 5-15P plug/connector type for better, dependable connectivity and desired power output
- 120 V AC input voltage for maximum feasibility and added productivity
- 120 V AC output voltage for optimal performance with maximum feasibility
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
SPFN104-10 is ideal for smaller environments that don't have protective surge suppression at the facility level, or just when additional protection is needed. Parallel circuitry keeps the SPFN104-10 working as a power strip, even if a surge or spike disables surge suppression.
Tech Specs
| Depth | 4.5" |
|---|---|
| Width | 17" |
| Height | 1.7" |
| PDU Type | Basic |
| Brand Name | Vertiv Geist |
| Mount Type | Rack-mountable |
| Cord Length | 10 ft |
| Rack Height | 1U |
| Color Family | Black |
| Manufacturer | Vertiv |
| Product Line | Basic |
| Product Name | Basic 10-Outlet PDU |
Show all 33 specsShow fewer
| Product Type | PDU |
|---|---|
| Input Current | 15 A |
| Input Voltage | 120 V AC |
| Product Color | Black Powder Coat |
| Output Voltage | 120 V AC |
| Product Family | Basic |
| Circuit Breaker | Yes |
| Protection Type | Surge Protection |
| Receptacle Type | NEMA 5-15R |
| Country of Origin | United States |
| Receptacle Detail | 10 x NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Power Rating (Watt) | 1400 W |
| Surge Energy Rating | 720 J |
| Mounting Orientation | Horizontal |
| Plug/Connector Detail | 1 x NEMA 5-15P |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | 27819 |
| Certifications & Standards | <ul><li>UL 1449</li><li>c-UL Listed 60950</li></ul> |
| Manufacturer Website Address | http://www.vertiv.com/ |
