STARTECH.COM

PCIE WIRELESS CARD WIFI ADAPTER NETWORK DUAL BAND WIRELESS ADAPTER

SKU: XQ5296VPN: PEX867WAC22

PCIE WIRELESS CARD WIFI ADAPTER NETWORK DUAL BAND WIRELESS ADAPTER

Key Features

  • Wireless AC1200 compatible (867 Mbps + 300 Mbps)
  • Compliant with 802.11 a/b/g/n/ac standards
  • Dual band 2.4 / 5 GHz support (802.11ac is 5 GHz only)
  • PCI Express host interface
  • 2 Transmitter/2 Receiver (2x2:2) antenna configuration

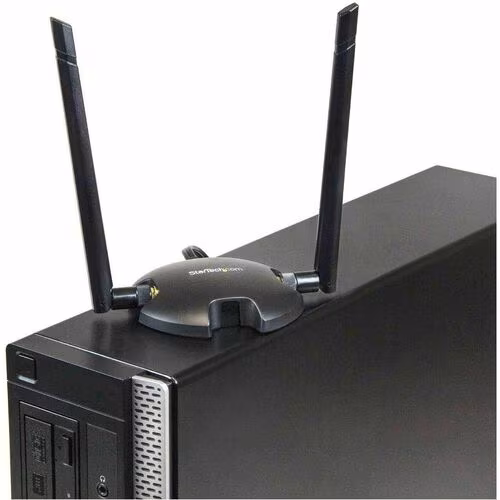

  • Included magnetic antenna stand for side-mounting on your PC case
  • Supports WEP (64-128-bit), WPA and WPA2 wireless security
  • Supports WMM Quality of Service
  • Supports Soft AP mode
  • Configured with standard profile bracket, low profile/half-height bracket included
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

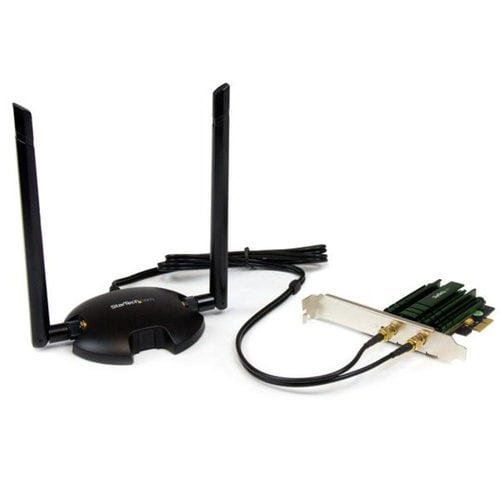

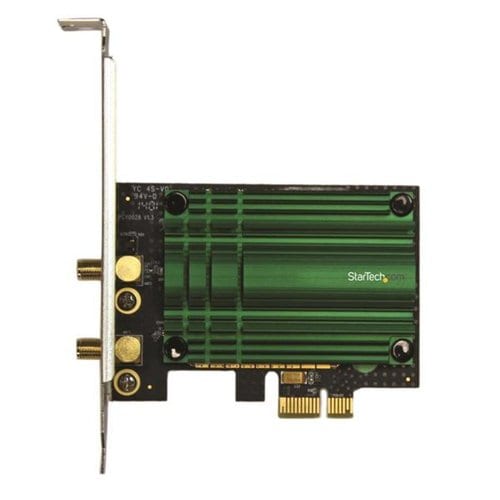

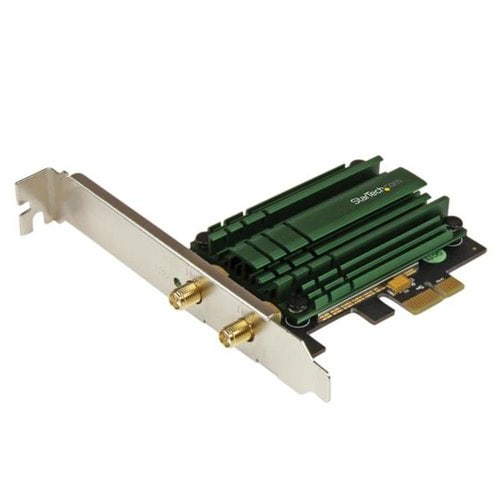

The PEX867WAC22 PCI Express AC1200 Wireless Network Adapter lets you add dual-band Wireless-AC connectivity to a desktop computer through a PCIe slot. With increased demand on network resources, this Wireless-AC adapter gives you exceptional speed and range for your office or home wireless network when paired with an 802.11ac router. This dual-band WiFi adapter supports maximum data rates of up to 867 Mbps on the 5GHz band (3x the speed of Wireless-N), plus up to 300 Mbps on the 2.4GHz band, making it the perfect solution for applications like HD video streaming, online conferencing, file transfers and gaming. This versatile PCIe wireless card features a 2T2R (2 transmitter, 2 receiver) detachable antenna design, with an included magnetic antenna stand that can easily be mounted to the top or side of your PC case. Plus, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. To integrate with all of your networking devices, the adapter is also backward compatible with 802.11a/b/g/n networks. Backed by a StarTech.com 2-year warranty, with free lifetime technical support.

Tech Specs

PCIE WIRELESS CARD WIFI ADAPTER NETWORK DUAL BAND WIRELESS ADAPTER specifications
Width0.7"
Height4.7"
Length3.4"
FeaturesLED Indicator
ISM BandYes
UNII BandYes
Brand NameStarTech.com
Form FactorInternal
ManufacturerStarTech.com
Product NamePCI Express Wireless AC Card
Product TypeWi-Fi Adapter
TAA CompliantYes
Show all 41 specs
Host InterfacePCI Express x1
WEEE Statementhttps://media.startech.com/cms/pdfs/pex867wac22_weee.pdf
Device SupportedDesktop Computer

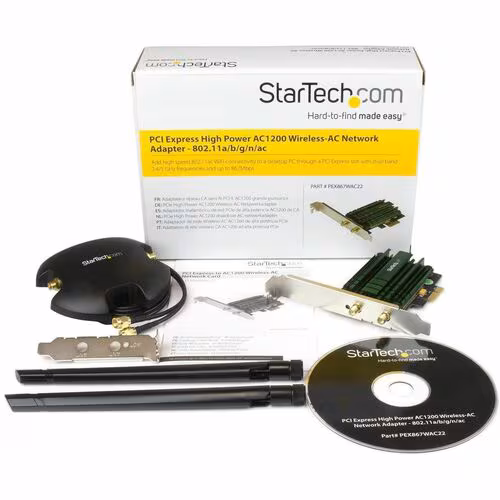

Package Contents<ul><li>PCI Express Wireless AC Card</li><li>2 x 5 dBi Dual Band Antennas</li><li>1 x Antenna Stand</li><li>1 x Low Profile Bracket</li><li>1 x Driver CD</li><li>1 x Instruction Manual</li></ul>
Wi-Fi GenerationWi-Fi 5

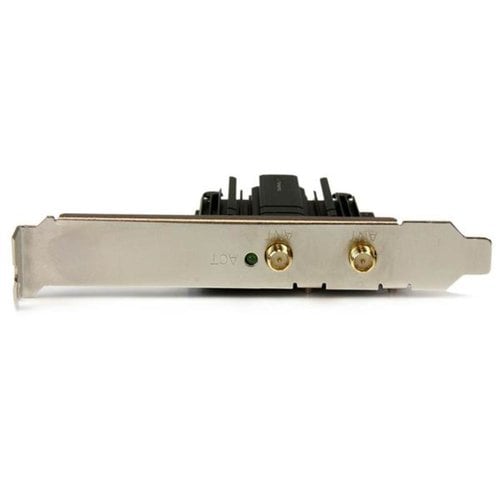

Antenna ConnectorRP-SMA Connector
Country of OriginTaiwan
Packaged Quantity1 Each
Wireless Security<ul><li>WEP (64/128-bit)</li><li>WPA</li><li>WPA2</li><li>TKIP</li><li>AES</li></ul>
Number of Antennas2
REACH free of SVHCYes
System Requirements<ul> <li>Windows® XP, 7, 8, 8.1, 10</li> <li>Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 </li> </ul>
Weight (Approximate)2.90 oz
ISM Maximum Frequency2.48 GHz
ISM Minimum Frequency2.40 GHz
REACH Declaration URLhttps://media.startech.com/cms/pdfs/pex867wac22_rohs.pdf
Wireless LAN StandardIEEE 802.11ac
UNII Maximum Frequency5.85 GHz
UNII Minimum Frequency5.18 GHz
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/pex867wac22_rohs.pdf
Antenna Gain (Isotropic)5 dBi
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2
Environmentally FriendlyYes
Manufacturer Part NumberPEX867WAC22
Certifications & Standards<ul><li>CE</li><li>FCC</li></ul><b>IEEE Standards:</b><br><ul><li>802.11ac</li><li>802.11a</li><li>802.11b</li><li>802.11g</li><li>802.11n</li></ul>
Environmental CertificationEU RoHS
Wireless Transmission Speed1.17 Gbit/s
Manufacturer Website Addresshttp://www.startech.com
End of Life Manual AvailabilityYes
