P1245 MK II MODULAR STANDARD CAMERA
P1245 MK II MODULAR STANDARD CAMERA
Key Features
- Small, thumb-sized sensor unit
- HDTV 1080p with 111° field of view
- Detachable cable up to 15 m
- Support for analytics with deep learning
- AXIS Object Analytics pre-installed
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Ideal for mounting in tight spaces, AXIS P1245 Mk II features a small, thumb-sized sensor unit that's easy to install and blends into any indoor environment. Featuring a deep learning processing unit, it enables the use of advanced analytics.
Compact and discreet
With a small, thumb-sized sensor unit, AXIS P1245 Mk II can be recessed mounted to blend into almost any indoor environment. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.

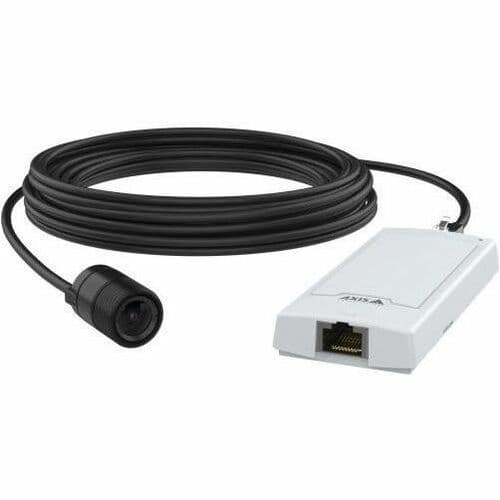

AXIS P1245 Mk II Modular Standard Camera with 8 meter cable option.
Highly flexible
Based on the divided modular camera concept, AXIS P1245 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won't fit. Plus, it can be mounted on a bracket, swivel mount, or similar. And it's easy to integrate with other devices. Including a standard sensor unit, thisindoor camera suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade
Great image quality and support for advanced analytics
AXIS P1245 Mk II offers1080p resolution with a wide, 111° field of view. AxisZipstreamsignificantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there's both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. And, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy
Tech Specs
| Features | AI Analytics |
|---|---|
| Lens Type | Fixed |
| Protocols | SNMPv1/v2c/v3 (MIB2) |
| AI-powered | Yes |
| Brand Name | AXIS |
| Mount Type | Recessed Mount |
| Camera Iris | Fixed |
| Color Family | White |
| HD Recording | Yes |
| Manufacturer | Axis Communications |
| Product Name | P1245 Mk II Modular Standard Camera |
| Product Type | Network Camera |
Show all 55 specsShow fewer
| Storage Type | Memory Card |
|---|---|
| Field of View | Horizontal: 111°, Vertical: 61° |
| Lens Included | Yes |
| Product Color | White |
| Product Model | P1245 Mk II |
| TAA Compliant | Yes |
| Video Formats | Motion JPEG |
| Indoor/Outdoor | Indoor/Outdoor |
| Product Family | P12 |
| Product Series | P12 |
| Color Supported | Color |
| Lens Mount Type | M12-mount |
| Network (RJ-45) | Yes |
| Maximum Aperture | f/2.0 |

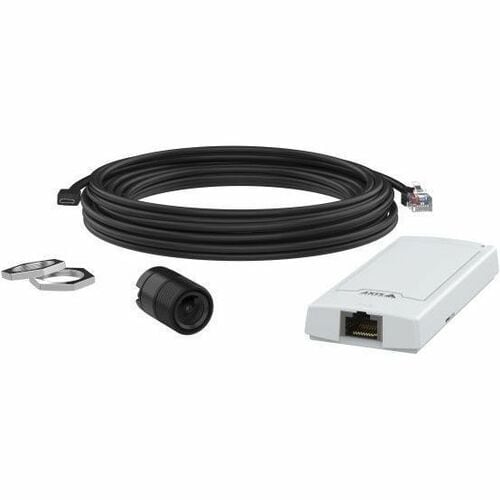

| Package Contents | <ul><li> P1245 Mk II Modular Standard Camera</li><li> Installation Guide</li><li> Owner Authentication Key</li><li> Sensor Unit</li><li> 8 m (26 ft) Black Cable</li><li> 2 x Locking Nuts</li></ul> |
| Product Material | Steel |
| Image Sensor Size | 1/2.9" |
| Image Sensor Type | RGB CMOS |
| Languages Support | Turkish |
| Power Source Type | PoE |
| Recording Formats | Full HD |
| Remote Management | Yes |
| Maximum Frame Rate | 30 fps |
| Operating Humidity | 85% |
| Ethernet Technology | Fast Ethernet |
| Maximum Focal Length | 2.80 mm |
| Weight (Approximate) | 2.65 oz |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/16500 Second |
| Connectivity Technology | Wired |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | 02857-001 |
| Maximum Storage Humidity | 95% |
| Maximum Video Resolution | 1920 x 1080 |
| Minimum Storage Humidity | 5% |
| Ingress Protection Rating | IP3X |
| Maximum Power Consumption | 4.10 W |
| Maximum Operating Humidity | 85% |
| Maximum Storage Temperature | 149°F (65°C) |
| Minimum Storage Temperature | -40°F (-40°C) |
| Manufacturer Website Address | http://www.axis.com |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
