NETCLOUD MOBILE COMPLETE ANDR920 ROUTER WITH WIFI 3YR GA
NETCLOUD MOBILE COMPLETE ANDR920 ROUTER WITH WIFI 3YR GA
Key Features
- Gain fast, reliable connectivity with Cat 7 LTE providing fast upload for video and data
- Add a second LTE or 5G cellular modem for multi-link dependability
- Deploy Wi-Fi 6 for the best possible connections
- Prioritize access to public safety networks for reliable, secure connectivity
- Enable unified edge security with application-aware multizone firewalls, IDS/IPS, and available FIPS 140-3 Level 1 Implementation Under Test
- Extend your deployment and enable customized solutions with powerful edge compute capabilities, including containers, connectors, SDKs, and API support
- Utilize the R920-C7A on private cellular networks with Band 48 CBRS
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

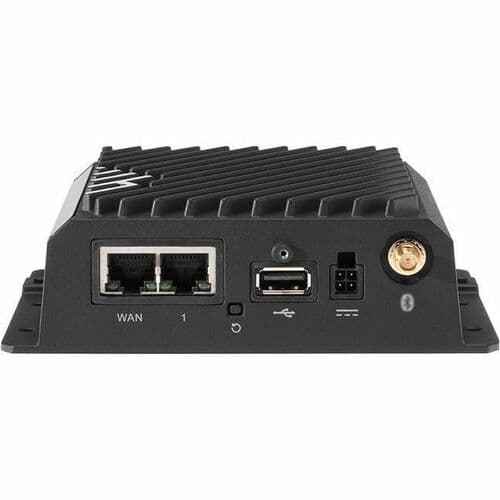

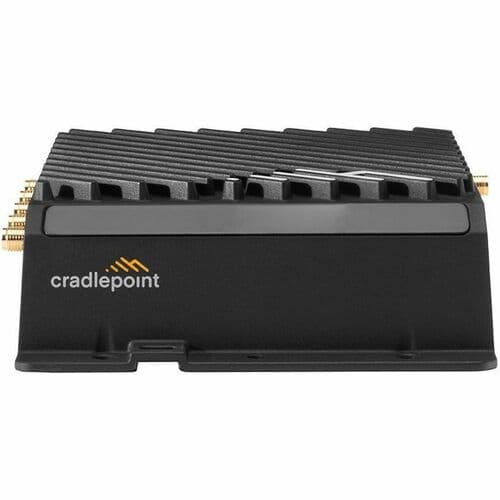

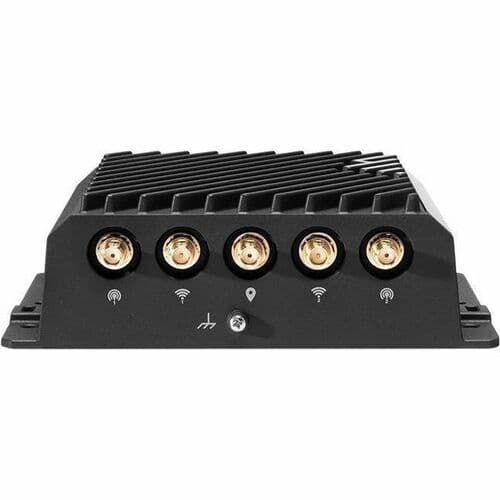

The Ericsson Cradlepoint R920 ruggedized router is a uniquely agile cellular networking solution that meets organizations' needsforflexible connectivity andproductstandardization for vehicles and IoT. The R920 is a ruggedized LTE networking platform available with either Mobile or Ruggedized IoT EricssonNetCloudService plans,providing features optimized for the needs of the differing deployments.
High-Performance Vehicle Connectivity
The Ericsson Cradlepoint R920 router with the Ericsson NetCloud Mobile Service plan provides a ruggedized GNSS/GPS-enabled in-vehicle network solution. Combined with the Ericsson Cradlepoint RX20 managed accessory, the R920 can be field upgraded to include a second LTE or 5G modem. When coupled with the Advanced Mobile Service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality such as location tracking and cellular coverage maps. The R920 also supports NetCloud Exchange services, which provide Zero Trust Network Access and cellular-optimized SD-WAN.
Ruggedized IoT Solution
When combined with the Ericsson NetCloud Ruggedized IoT Service plan, the R920 provides a versatile, ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. It can be deployed in a wide range of environmentally harsh IoT use cases such as kiosks, building automation, oil and gas, utility, and smart city infrastructure deployments. The ruggedized design and the CBRS band support make it ideal for private networks. In addition, the solution is highly extensible with APIs, SDKs, and integrations into IoT platforms, and the generous memory supports onboard edge containers. The R920 also supports NetCloud Exchange services, which provide Zero Trust Network Access and cellular-optimized SD-WAN.
Tech Specs
| USB | Yes |
|---|---|
| Depth | 4.8" |
| Width | 5.3" |
| Height | 1.6" |
| ISM Band | Yes |
| UNII Band | Yes |
| Brand Name | CradlePoint |
| Form Factor | DIN Rail Mountable |
| Manufacturer | ERICSSON |
| Network Band | Dual Band |
| Product Name | R920-C7B Modem/Wireless Router |
| Product Type | Modem/Wireless Router |
Show all 45 specsShow fewer
| USB Standard | USB 2.0 Type A |
|---|---|
| Product Model | R920-C7B |
| VPN Supported | Yes |
| Processor Core | Dual-core (2 Core) |
| Product Family | R920 |
| Product Series | R920 |
| Standard Memory | 921 MB |
| Package Contents | <ul><li>R920-C7B Modem/Wireless Router</li><li>GPIO Cable, Small 2x2, Black, 3 Meters, 20 AWG</li><li>Mounting Template</li></ul> |
| Wi-Fi Generation | Wi-Fi 6 |
| MU-MIMO Technology | Yes |
| SIM Size Supported | Nano |
| Cellular Generation | 4G |
| Encryption Standard | WPA-Personal |
| Ethernet Technology | Gigabit Ethernet |
| Multi-SIM Supported | Yes |
| Maximum Upload Speed | 18.75 MB/s |
| Weight (Approximate) | 1.31 lb |
| Flash Memory Capacity | 8 GB |
| ISM Maximum Frequency | 2.40 GHz |
| Wireless LAN Standard | IEEE 802.11k/v/ax |
| UNII Maximum Frequency | 5 GHz |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | MAA3-0920-C7B-GA |
| Cellular Network Supported | LTE 1500 |
| Certifications & Standards | <ul><li>UL/cUL</li><li>CB Scheme</li><li>EN 62368-1</li><li>E-Mark</li><li>SAE J1455 Operating Sinusoidal Vibe, Category 2</li><li>EN 61373 Category 1, Class B (Railway rolling stock)</li><li>MIL-STD-810G Method 514.6, Annex C-2.1, Category 4 (Vibration)</li><li>MIL-STD-810G Section 2.2.2 Procedure 1 (Shock, Vibration)</li><li>Class I Div 2</li></ul> |
| Manufacturer Website Address | http://www.ericsson.com/us |
| Number of SIM Card Supported | 2 |
| Total Number of Network Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Broadband Transmission Technology | Ethernet |
| Number of Broadband (RJ-45) Ports | 1 |
| Total Wireless Transmission Speed | 226.56 MB/s |
| Cellular Data Connectivity Technology | DC-HSPA+ |
