NC IOT ESS + ADV PLAN AND S700 W/WIFI AND AC PWR SPLY 3YR GA 3-YR
NC IOT ESS + ADV PLAN AND S700 W/WIFI AND AC PWR SPLY 3YR GA 3-YR
Key Features
- Savor simultaneous downloading and seamless streaming
- Gigabit Ethernet port for ultra-fast wired network speeds
- Maximize the throughput for smoother and faster HD video streaming and file transfer by utilizing the ISM Band
- For USB-enabled devices accessibility, the router comes with a built-in USB port
- Extremely portable! Enjoy wireless connectivity and instant access to the internet
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

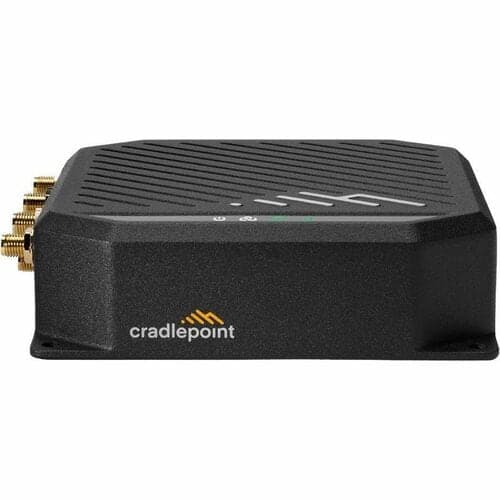

The Cradlepoint S700 Series Semi-Ruggedized Router for IoT networks is a semi-ruggedized, cloud-managed LTE router, built for light industrial, IoT, and portable applications where security is a foundational requirement. Offering connectivity through LTE plus wired and Wi-Fi options, the S700 accommodates a variety of use cases in high-availability, portable, or fixed uses. The S700 Series is available with IoT NetCloud Service Plans, which provide features optimized for each unique deployment.
Semi-Ruggedized IoT Solution
When coupled with the NetCloud IoT service plan, the S700 router provides a compact, semi-ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. With an IP30-rated aluminum housing built to withstand vibration and temperature extremes and designed for DIN rail mounting, the S700 is ideal for use in light industrial applications such as oil and gas monitoring or in portable or fixed applications such as surveillance cameras, digital signs, and parallel networking. With an extensive list of features, it can be confidently deployed in the field, in buildings, or in embedded systems to deliver complete visibility, security, and control of connected devices anywhere.
Advanced, Cloud-Managed IoT Solution
For organizations requiring robust connectivity for IoT networks - with installed routers numbering from hundreds to many thousands - Cradlepoint's NetCloud Service for IoT with the S700 router provides a comprehensive cloud managed network solution. When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in-band and Out-of-Band Management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. Cradlepoint's NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.
Key Software Capabilities
Cradlepoint NetCloud Service for the S700 Series Router includes the appropriate router software with powerful cloud management features for managing IoT at scale. The NetCloud Service includes cloud-based management for optimizing routing, secure tunneling, traffic steering, and foundational security capabilities. The cloud capabilities include defining and applying policies, at-a-glance status insights, reports, troubleshooting, and analytics dashboards. The service includes a warranty for as long as an active IoT Essentials or Essentials + Advanced subscription on the router, online training, live and online support, and all software and firmware updates.
Encrypted Routing Services
The NetCloud Service plus the S700 Series Router provides local processing power to handle demanding, router-delivered services, such as support for VPN tunneling encryption including DMVPN, IPsec, GRE, and other tunneling technologies.
Security Services
Cradlepoint zero trust security networking, delivered through NetCloud Exchange (NCX) Secure Connect, protects the Cradlepoint IoT routers and any connected devices through connect-and-go ease. IoT or other devices simply connect to the router with encrypted tunnels to build micro networks that are instantly hidden from internal and external sites. Access policies are easily defined to enable IoT devices to communicate only with their authorized resources or applications and nothing else. The simple and secure zero trust access, delivered through NCX ZTNA, also enables authorized third parties' remote access to IoT devices on the WAN for remote monitoring and maintenance.
Tech Specs
| USB | Yes |
|---|---|
| Depth | 4.6" |
| Width | 4.8" |
| Height | 1.3" |
| ISM Band | Yes |
| UNII Band | Yes |
| Brand Name | CradlePoint |
| Form Factor | Portable |
| Manufacturer | ERICSSON |
| Network Band | Dual Band |
| Product Name | NetCloud S700 Modem/Wireless Router |
| Product Type | Modem/Wireless Router |
Show all 44 specsShow fewer
| USB Standard | USB 2.0 Type A |
|---|---|
| VPN Supported | Yes |
| Processor Core | Dual-core (2 Core) |
| Product Family | S700 |
| Product Series | S700 |
| Standard Memory | 512 MB |
| Product Material | Aluminum |
| Wi-Fi Generation | Wi-Fi 6 |
| MU-MIMO Technology | Yes |
| SIM Size Supported | Nano |
| Cellular Generation | 4G |
| Encryption Standard | WPA3-Personal |
| Ethernet Technology | Gigabit Ethernet |
| Multi-SIM Supported | Yes |
| Weight (Approximate) | 1.14 lb |
| Flash Memory Capacity | 8 GB |
| ISM Maximum Frequency | 2.40 GHz |
| Wireless LAN Standard | IEEE 802.11ax |
| UNII Maximum Frequency | 5 GHz |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | TBA3-0700C4E-GM |
| Cellular Network Supported | LTE 850 |
| Certifications & Standards | <ul><li> UL/cUL</li><li> CB Scheme</li><li> EN 62368-1</li><li> FIPS 140-3 Level 1 Module in Process</li><li> SAE J1455 Operating Sinusoidal Vibe, Category 2</li><li> EN 61373 Category 1, Class B (Railway rolling stock)</li><li> EN 61373 Category 2</li><li> MIL SD 810H Method 514.8, Annex C-1, Category 4</li><li> MIL SD 810H Method 516.8, Procedure 1</li><li> MIL SD 810H Method 516.8, Procedure V</li></ul> |
| Manufacturer Website Address | http://www.ericsson.com/us |
| Number of SIM Card Supported | 2 |
| Total Number of Network Ports | 2 |
| Number of Network (RJ-45) Ports | 1 |
| Broadband Transmission Technology | Ethernet |
| Number of Broadband (RJ-45) Ports | 1 |
| Total Wireless Transmission Speed | 221.75 MB/s |
| Cellular Data Connectivity Technology | WCDMA |
