MSA Q400G-4Q56G-PDAC2M COMP TAA 400G-CU QSFP-DD/4XQSFP56 DAC 2M

SKU: 9CA698VPN: Q400G-4Q56GPDAC2M-AO

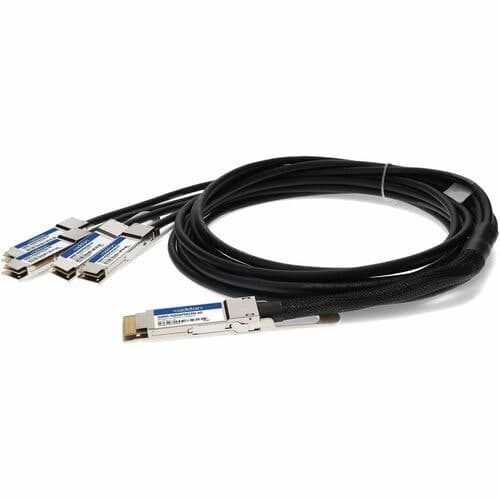

MSA Q400G-4Q56G-PDAC2M COMP TAA 400G-CU QSFP-DD/4XQSFP56 DAC 2M

Key Features

  • Compliant with QSFP-DD MSA Specification Rev 3.4
  • SFF-8679 electrical interface compliant
  • SFF-8636 management interface support
  • Compatible with IEEE 802.3bj, IEEE 802.3by, IEEE 802.3cd
  • Supports aggregate data rates of 100 and 400Gbps
  • I2C for EEPROM communication
  • Pull-to-release slide latch design
  • 28AWG through 32AWG cable
  • Excellent EMI/EMC performance 360-degree cable shield termination
  • Advantage dual side pre-solder automated assembly technologies
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This is an industry standard 400GBase-CU QSFP-DD 400G to 4xQSFP56 100G PAM-4 direct attach cable that operates over passive copper with a maximum reach of 2.0m (6.6ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Tech Specs

MSA Q400G-4Q56G-PDAC2M COMP TAA 400G-CU QSFP-DD/4XQSFP56 DAC 2M specifications
Width0.5"
Height0.5"
Length78.7"
FeaturesPassive
ShieldingYes
Brand NameAddOn
Cable TypeTwinaxial
Jacket TypeVW-1
Cable Length6.56 ft
ManufacturerAddOn
Product NameTwinaxial Network Cable
Product TypeNetwork Cable
Show all 32 specs
TAA CompliantYes
Jacket MaterialPolyvinyl Chloride (PVC)
Device SupportedNetwork Device
Product MaterialCopper
Country of OriginUnited States/United Kingdom
Packaged Quantity1
Data Transfer Rate400 Gbit/s
American Wire Gauge28 AWG
Weight (Approximate)0.30 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberQ400G-4Q56GPDAC2M-AO
Certifications & StandardsMSA Compliant
Connector Type on First EndQSFP-DD Network - Male
Connector Type on Second EndQSFP56 Network - Male
Manufacturer Website Addresshttp://www.addoncomputer.com
Connector Gender on First EndMale
Connector Gender on Second EndMale
Connector on First End Details1 x QSFP-DD Network - Male
Connector on Second End Details4 x QSFP56 Network - Male
