STARTECH.COM
MSA COMPLIANT SFP25GLRS 25G SFP28 1310NM 10KM DDM LC
SKU: JN6178VPN: SFP-25G-LR-S-M-ST
MSA COMPLIANT SFP25GLRS 25G SFP28 1310NM 10KM DDM LC
Key Features
- SFP28 is the single answer to all your desired and specified application execution needs
- 25GBase-LR network technology for convenient, easy sharing of data and information with maximum feasibility
- Uses 25 Gigabit Ethernet technology to fulfill the high bandwidth requirement
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- For transmitting data at gigabit speed over hundreds of miles with little integrity loss, single-mode fiber optic is an ideal solution
- SFP28 with data networking application/usage for reliability and maximum efficiency
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

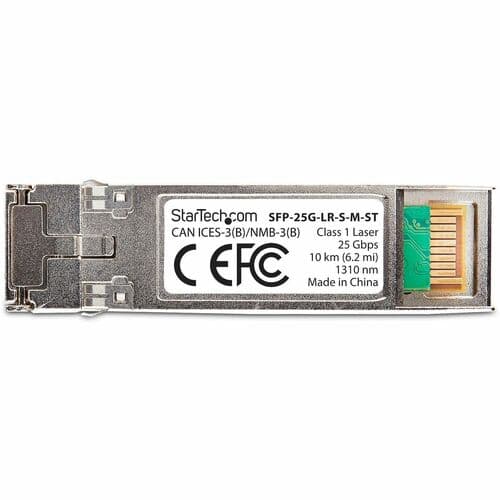

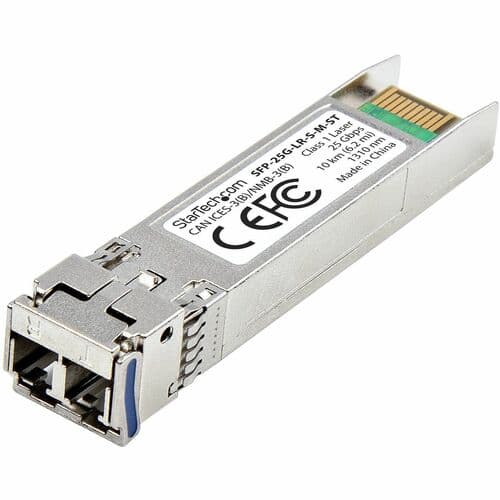

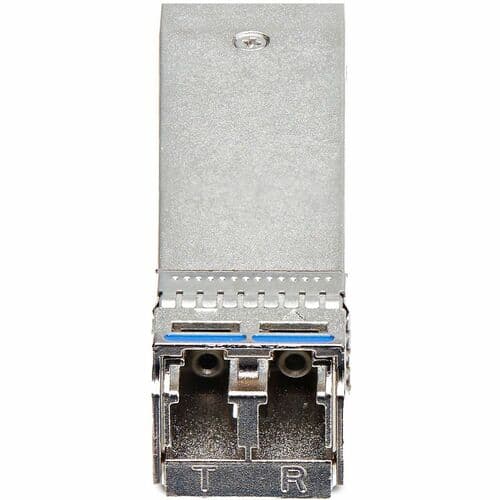

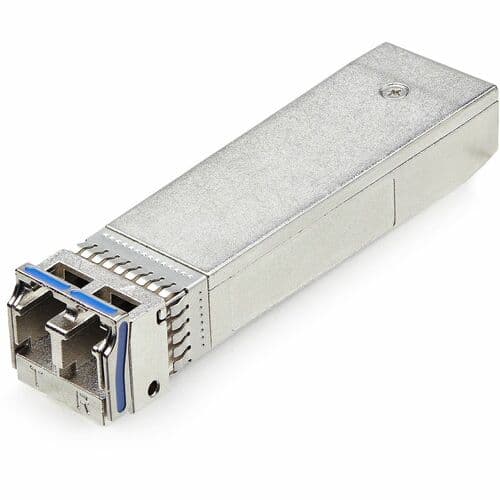

MSA-compliant fiber optic transceiver with 25Gbps connectivity up to 10km (6.2mi) over LC-terminated Single Mode Fiber (SMF) cable. The optical module has been programmed and tested for seamless integration with MSA-compatible switches and routers to ensure compatibility and reliability.
Maximize Bandwidth
The 25GbE SFP28 excels in bandwidth-intensive tasks such as virtualization, efficient data migrations, high-performance storage, high-performance computing (HPC), future-proofing a network, and rapid online content uploads.
Technical Specifications
- 25GBASE-LR SFP28
- Data Rate: 25Gbps
- Fiber Type: Single Mode Fiber (SMF)
- Connector: LC
- Wavelength: 1310nmTx/Rx
- Distances: Up to 10km (6.2mi)
- Supports Digital Diagnostics Monitoring (DDM/DOM)
Compatibility
This MSA-compliant SFP works with network equipment from manufacturers that accept uncoded optical modules.
Optimized Network Reach
The Short Range (SR) capability facilitates low-latency and scalable onsite connections within a data center or subnetworks within a building.
Tech Specs
| Width | 0.5" |
|---|---|
| Height | 0.3" |
| Length | 2.20" |
| Brand Name | StarTech.com |
| Manufacturer | StarTech.com |
| Product Name | SFP28 Module |
| Product Type | SFP28 |
| Compatibility | <ul><li> MSA Compliant</li></ul> |
| Connector Type | LC |
| Application/Usage | Optical Network |
| Packaged Quantity | 1 |
| Network Technology | 25GBase-LR |
Show all 24 specsShow fewer
| Ethernet Technology | 25 Gigabit Ethernet |
|---|---|
| Fiber Mode Supported | Single-mode |
| Media Type Supported | Optical Fiber |
| Weight (Approximate) | 0.44 lb |
| Total Number of Ports | 2 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmentally Friendly | Yes |
| Interfaces/Ports Details | 2 x Full Duplex LC 25GBase-LR Network |
| Manufacturer Part Number | SFP-25G-LR-S-M-ST |
| Maximum Data Transfer Rate | 25.78 Gbit/s |
| Maximum Distance Supported | 10 km |
| Manufacturer Website Address | http://www.startech.com |
