MS-98L1 INTEL CLF-S C246 MITX 2 DDR4 SODIMM 4 LAN 2 DP 1 HDMI

SKU: 8YN807VPN: 919-98L1-005

MS-98L1 INTEL CLF-S C246 MITX 2 DDR4 SODIMM 4 LAN 2 DP 1 HDMI

Key Features

  • Experience high performance, built-in security and remote management capabilities with compatible Intel Xeon processor
  • DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
  • RAID supported levels provide data reliability and fault tolerance
  • HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
  • DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
  • Mini ITX form factor builds a perfect symmetry of hardware components needed in media server or NAS box
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

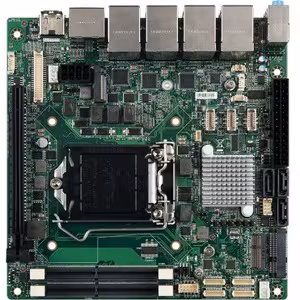

Mini-ITX with 9th/8th Gen Intel® Coffee Lake Refresh-S/Coffee Lake-S Xeon®, Core™ i7/i5/i3, Pentium®, Celeron® Processor & Intel® C246/Q370/H310 for High-Performance Solution

  • Intel® 8th/9th Gen Coffee Lake-S/Coffee Lake Refresh-S Series with C246/Q370/H310
  • 2 DDR4 2666 MHz ECC/non-ECC SODIMM slots up to 64GB
  • Triple independent displays: 2DP, HDMI (DP by option), LVDS
  • 4 GbE LAN with RJ-45
  • 1 PCIe x16 (Gen 3) Slot, M.2 E key (with CNVi), 1 Mini-PCIe (Full size, with SIM Holder) slots
  • M.2 M key, 3 SATA 3.0 for storage
  • SATA RAID 0/1/5/10 (RAID 10 Configured with M.2 M Key)
  • 4 USB 3.2 Gen 2, 6 USB 3.2 Gen 1, 2 USB 2.0, 6 COM (2 RS-485), GPIO, Audio, S/PDIF, System FAN
  • Onboard TPM 2.0 (by option)
  • SMBus, iAMT 12.x
  • ATX Power

Tech Specs

MS-98L1 INTEL CLF-S C246 MITX 2 DDR4 SODIMM 4 LAN 2 DP 1 HDMI specifications
HDMIYes
Depth6.7"
Width6.7"
Brand NameMSI
DisplayPortYes
Form FactorMini ITX
RAID Levels5
ManufacturerMSI
Product NameMS-98L1 Desktop Motherboard
Product TypeDesktop Motherboard
Chipset ModelC246
Product ModelMS-98L1
Show all 43 specs
Audio Channels7.1
Maximum Memory64 GB
RAID SupportedYes
Controller TypeSerial ATA/600
Gigabit EthernetYes
Package Contents<ul> <li>MS-98L1 Desktop Motherboard</li> <li>1 x SATA Cable, 500mm</li> <li>1 x COM Port Cable, 250mm</li> <li>1 x I/O SHIELDING</li> <li>1 x Driver CD</li> </ul>
Processor SocketSocket H4 LGA-1151
Country of OriginChina
Memory TechnologyDDR4 SDRAM
Memory Form FactorSODIMM
Processor SupportedCeleron
Chipset ManufacturerIntel
Weight (Approximate)14.29 oz
Memory Speed Supported2666 MHz
Number of Memory Slots2
Number of USB 3.2 Ports4
Manufacturer Part Number919-98L1-005
Maximum Memory Supported64 GB
Number of M.2 Interfaces2
Number of SATA Interfaces3
Total Number of USB Ports8
Total Processor Supported1
Manufacturer Website Addresshttp://www.msi.com
Number of USB 3.2 Gen 1 Ports4
Number of Network (RJ-45) Ports4
Number of Onboard USB 2.0 Ports2
Number of Onboard USB 3.2 Ports2
Number of PCI Express x16 Slots1
Total Number of Expansion Slots2
Total Number of Onboard USB Ports4
Total Number of PCI Express Slots1
