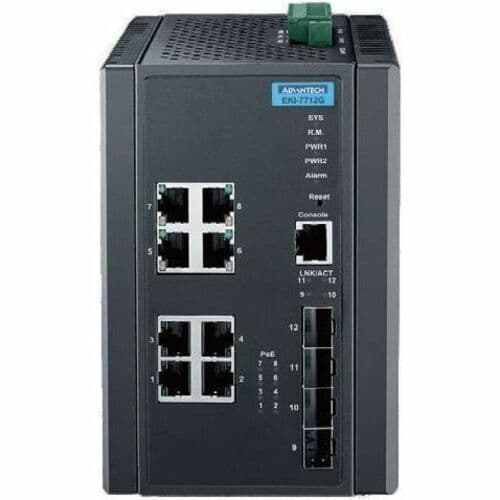

ADVANTECH (B+B SMARTWORX)

MNGD INDUSTRIAL SWTCH 8G +4SFP 2 MEGA POE++ 90W 6 POE. WIDE TEMP

SKU: 8CL177VPN: EKI-7712G-4FMPI-AE

MNGD INDUSTRIAL SWTCH 8G +4SFP 2 MEGA POE++ 90W 6 POE. WIDE TEMP

Key Features

  • 8 x Gigabit Ethernet ports + 4 x SFP ports
  • Support 2 IEEE 802.3bt class 8 90W and 6 IEEE 802.3af/at PoE ports
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time,
  • IXM function for fast deployment
  • Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • Supports NMS for easy and visualized to monitor and manage network remotely
  • Dual 53 ~ 57 VDC power inputs and 1 x relay output
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The EKI-7712G-4FMPI is a next generation PoE switch which supports IEEE 802.3bt Class 8 90W PoE for high-powered application. Combined with 6 x 802.3 af/at PoE Gigabit ports, 2 x 802.3 bt PoE Gigabit ports, and 4 x SFP ports, the EKI-7712G-4FMPI provides multiple usage for different scenario. The EKI-7712G-4FMPI is embedded with Advantech’s IXM function, which can benefit users with fast deployment and can save considerably engineering time and costs. It also supports NMS to help IT managers with networking maintenance and failure prevention. The series are also equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of

Tech Specs

MNGD INDUSTRIAL SWTCH 8G +4SFP 2 MEGA POE++ 90W 6 POE. WIDE TEMP specifications
MTBF992320 Hour
Depth4.1"
Width3.8"
Height6"
FeaturesRemote Monitoring (RMON)
Brand NameAdvantech
ManageableYes
PoE Budget370 W
Form FactorDIN Rail Mountable
ManufacturerAdvantech Co., Ltd
Power SourceDC
Product NameEKI-7712G-4FMPI Ethernet Switch
Show all 39 specs
Product TypeEthernet Switch
Input Voltage57 V DC
Product ModelEKI-7712G-4FMPI
Product FamilyEKI-7712G
Product SeriesEKI-7712G
Layer Supported2
Network (RJ-45)Yes
PoE (RJ-45) PortYes
Product MaterialMetal
Application/UsageNetwork
Power Consumption12 W
Network Technology10/100/1000Base-TX
Ethernet TechnologyGigabit Ethernet
Expansion Slot TypeSFP (mini-GBIC)
Number of SFP Slots4
Plug/Connector TypeTerminal Block
Media Type SupportedOptical Fiber
Networking StandardsIEEE 802.1Q
Weight (Approximate)2.43 lb
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Manufacturer Part NumberEKI-7712G-4FMPI-AE
Maximum Data Transfer Rate128 MB/s
Port/Expansion Slot Details6 x 10/100/1000BASE-T/TX Gigabit Ethernet PoE+ RJ-45 Network Port
Manufacturer Website Addresshttp://www.advantech.com
Total Number of Network Ports8
Total Number of Expansion Slots4
Redundant Power Supply SupportedYes
