MINI PCI EXPRESS FIREWIRE CARD ADAPTER 3 PORT PCIE 1394 FIREWIRE
SKU: GU5368VPN: MPEX1394B3
MINI PCI EXPRESS FIREWIRE CARD ADAPTER 3 PORT PCIE 1394 FIREWIRE
Key Features
- 2 external 9-pin FireWire-800 ports with support for data transfer rates up to 800 Mbps
- 1 external 6-pin FireWire-400 port with supported transfer rates up to 400 Mbps
- Compliant with PCI Express Mini Card specification 1.2
- Optional external power support for high-powered FireWire devices
- Compliant with IEEE 1394b and backward compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
- Plug-and-Play and hot-swap compatible
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

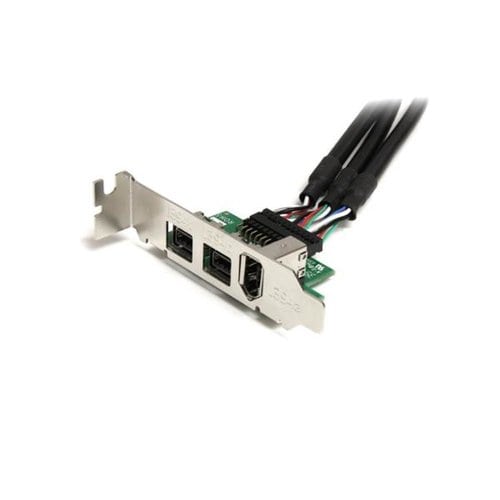

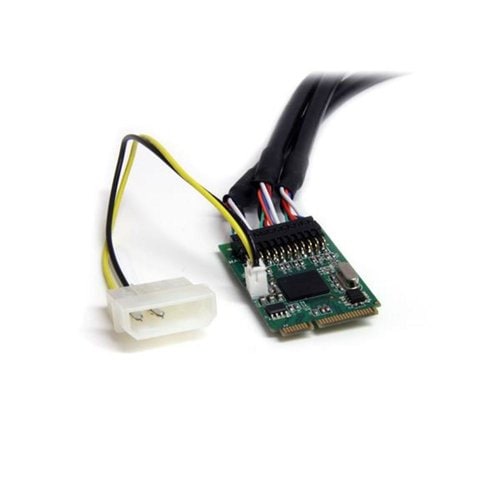

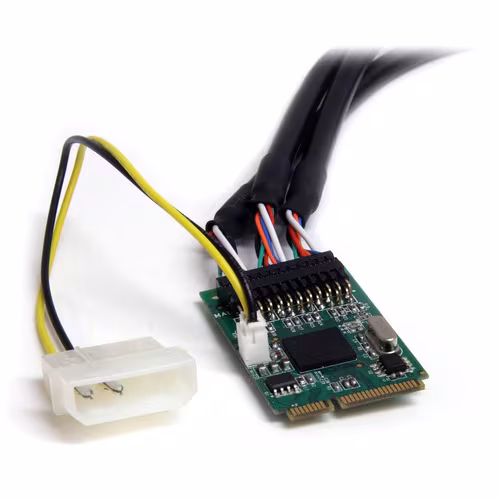

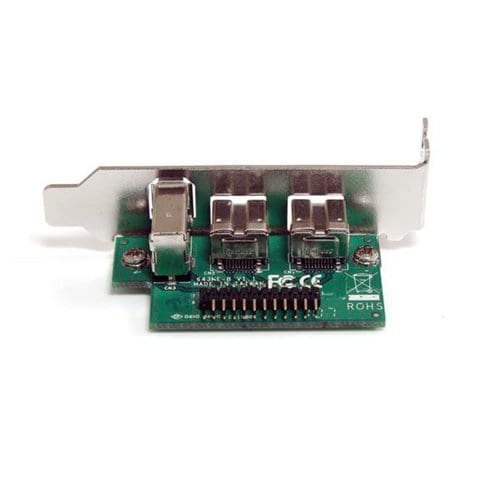

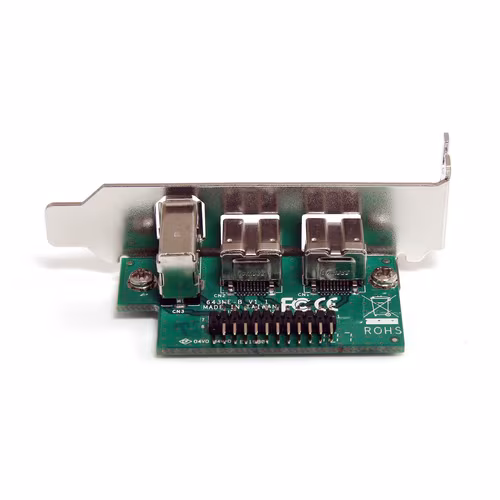

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps. Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Tech Specs
| Width | 1.2" |
|---|---|
| Height | 0.2" |
| Length | 2" |
| Brand Name | StarTech.com |
| Form Factor | Plug-in Card |
| Manufacturer | StarTech.com |
| Product Name | 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter |
| Product Type | FireWire Adapter |
| TAA Compliant | Yes |
| Host Interface | Mini PCI Express |
| Package Contents | <ul> <li>3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter</li> <li>1 x Internal Data Cable</li> <li>1 x 4xpin LP4 Molex Adapter Cable</li> <li>1 x Full Profile Bracket</li> <li>1 x Video Editing Software CD</li> <li>1 x Instruction Manual</li> </ul> |
| Country of Origin | Taiwan |
Show all 24 specsShow fewer
| Packaged Quantity | 1 Each |
|---|---|
| Data Transfer Rate | 800 MB/s |
| Platform Supported | PC |
| Weight (Approximate) | 3.20 oz |
| Additional Information | <ul> <li>A Mini PCI Express form factor designed for use in some small form factor and embedded systems</li> <li>Backed by a StarTech.com 2-year warranty and free lifetime technical support</li> </ul> <p><b>OS Compatibility:</b></p> <ul> <li>Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11</li> <li>Windows Server® 2003, 2008 R2, 2012, 2016, 2019</li> <li>macOS 10.6 to 10.15, 11.0, 12.0, 13.0</li> <li>Linux 3.5.x and up - LTS Versions only</li> </ul> |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | MPEX1394B3 |
| Operating System Supported | Windows 10 |
| Manufacturer Website Address | http://www.startech.com |
| Number of FireWire/i.LINK 400 Ports | 1 |
| Number of FireWire/i.LINK 800 Ports | 2 |
| Total Number of FireWire/i.LINK Ports | 3 |
