AXIOM

MINI-MEDIA CONVERTER RACK MOUNT CHASSIS 1U 12 SLOTS

SKU: 8UK821VPN: MCR0-CH-1U12-AX

MINI-MEDIA CONVERTER RACK MOUNT CHASSIS 1U 12 SLOTS

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

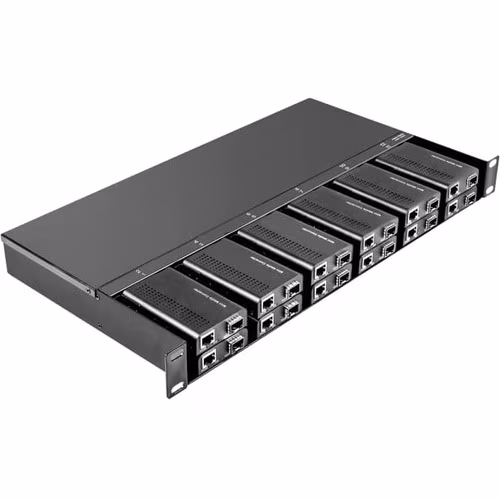

The Axiom 1U Rack Mount 12 Slot Media Converter Chassis is specifically designed to accommodate our MC01, MC03, MC08, & MC10 Series Mini-Media Converter line up. The 1U rack mount system is designed for space saving by providing power with a single, internal, universal power supply that eliminates the need for the multiple power connections which is usually associated associated with multiple converter installations. It provides hot-swap capability so individual units can be replaced as your network needs change.

  • Media Converter Capacity: 12-slots in front for silde-in-modules
  • LED Indicators: Power, Fan A, Fan B (On: operating; Off: device or fan fail)
  • Power: Universal input 100~240V, 50/60Hz, 3.0~1.5A Redundant Power Supply
  • Temperature Rating: 0~50 degrees C (operating), -20~70 degrees C (storage)
  • Humidity: 0~90% (non-condensing)
  • Enclosure: Metal
  • Dimensions: 440mm×245mm×45mm
  • Weight: 3.2kg
  • Compliance: FCC Class A, CE-mark

Tech Specs

MINI-MEDIA CONVERTER RACK MOUNT CHASSIS 1U 12 SLOTS specifications
Depth9.6"
Width17.3"
Height1.8"
Brand NameAxiom
Form FactorRack-mountable
ManufacturerAxiom Memory Solutions
Product NameMini-Media Converter Rack Mount Chassis - 1U, 12 Slots, Dual AC 220v
Product TypeMedia Converter Chassis
Compatibility<p><b>Axiom Mini-Media Converter series:</b></p> <ul> <li>MC01</li> <li>MC03</li> <li>MC08</li> <li>MC10</li> </ul>
Input Voltage120 V AC
Compatible Rack Unit1U
Weight (Approximate)7.05 lb
Show all 18 specs
Power Supply InstalledYes
Manufacturer Part NumberMCR0-CH-1U12-AX
Certifications & Standards<ul> <li>FCC Class A</li> <li>CE Mark</li> </ul>
Manufacturer Website Addresshttp://www.axiommemory.com
Total Number of Expansion Slots12
Number of Power Supplies Installed1
