ADDON
MELLANOX MCP1600-C001 COMP DAC TAA 100G-CU QSFP28 PASSIVE 1M
SKU: NT7259VPN: MCP1600-C001E30N-AO
MELLANOX MCP1600-C001 COMP DAC TAA 100G-CU QSFP28 PASSIVE 1M
Key Features
- Up to 100 Gbps bi-directional data links
- AC coupled inputs and outputs
- Compliant with QSFP28 MSA specifications
- All-metal housing for superior EMI performance
- Single power supply 3.3V, low power consumption
- 100 Ohm differential impedance
- ROHS Compliant
- Operating Temperature: 0 to 70 Celsius
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

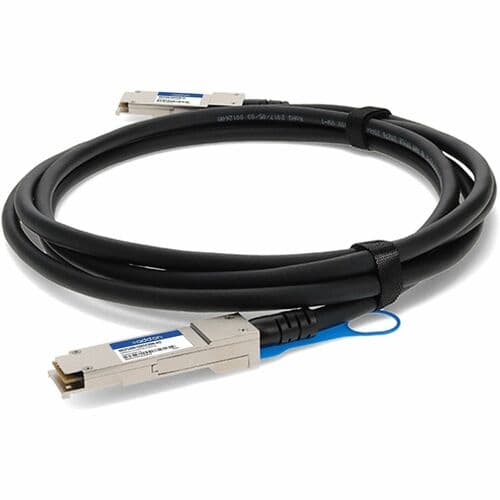

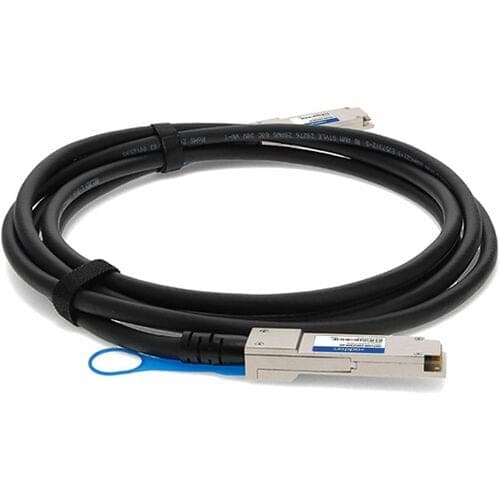

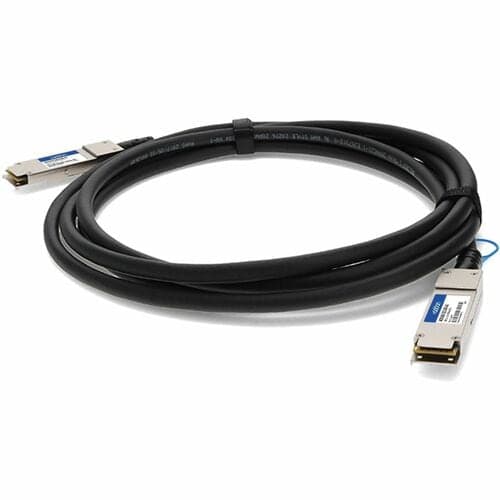

This is a Mellanox® MCP1600-C001 compatible 100GBase-CU QSFP28 to QSFP28 direct attach cable that operates over passive copper with a maximum reach of 1.0m (3.3ft). It has been programmed, uniquely serialized, and data-traffic and application tested to ensure it is 100% compliant and functional. This direct attach cable is TAA (Trade Agreements Act) compliant, and is built to comply with MSA (Multi-Source Agreement) standards. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Tech Specs
| Features | Passive |
|---|---|
| Brand Name | AddOn |
| Cable Type | Twinaxial |
| Cable Length | 3.28 ft |
| Manufacturer | AddOn |
| Product Name | Twinaxial Network Cable |
| Product Type | Network Cable |
| TAA Compliant | Yes |
| Jacket Material | Metal |
| Device Supported | Network Device |
| Product Material | Copper |
| Packaged Quantity | 1 |
Show all 23 specsShow fewer
| Data Transfer Rate | 100 Gbit/s |
|---|---|
| American Wire Gauge | 30 AWG |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | MCP1600-C001E30N-AO |
| Connector Type on First End | QSFP28 Network |
| Connector Type on Second End | QSFP28 Network |
| Manufacturer Website Address | http://www.addoncomputer.com |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x QSFP28 Network |
| Connector on Second End Details | 1 x QSFP28 Network |
