CISCO - HW STORAGE

MDS 9396S SWITCH W/ 96 ACTIVE PORTS PORT-SIDE INTAKE

SKU: 8A6250VPN: DS-C9396S-96IK9

MDS 9396S SWITCH W/ 96 ACTIVE PORTS PORT-SIDE INTAKE

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

MDS 9396S SWITCH W/ 96 ACTIVE PORTS PORT-SIDE INTAKE Overview

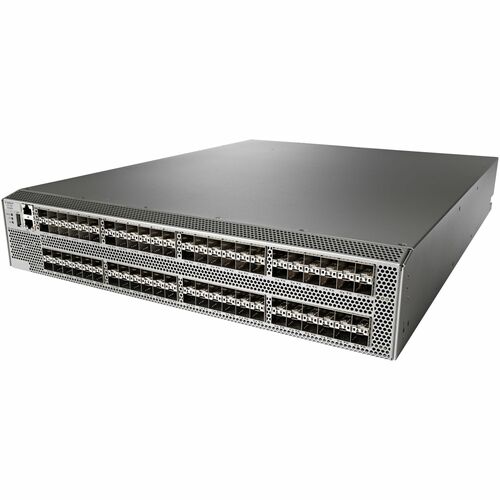

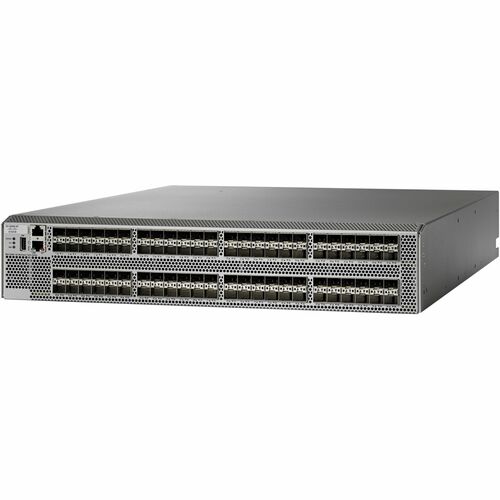

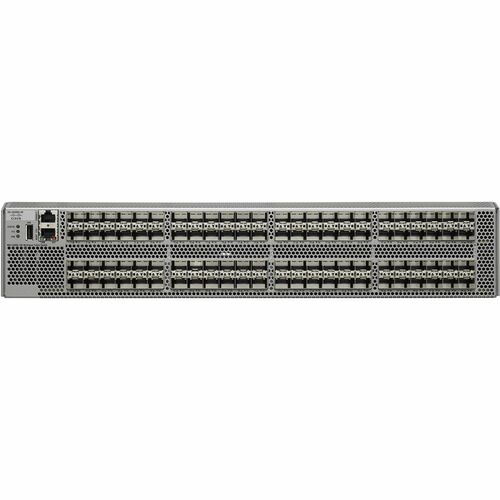

The Cisco® MDS 9396S 16G Multilayer Fabric Switch (Figure 1) is the next generation of the high performance, high density and highly reliable Cisco MDS Series Fabric switches. It combines high performance with exceptional flexibility and cost effectiveness. This powerful, compact, 2-rack-unit (2RU) switch scales from 48 to 96 line-rate 16-Gbps Fibre Channel ports.

The Cisco MDS 9396S is excellent for:

  • A standalone SAN in large departmental storage environments
  • A middle-of-row or top-of-rack switch in medium-sized redundant fabrics
  • An edge switch in enterprise data center core-edge topologies

The Cisco MDS 9396S is powered by Cisco NX-OS Software and Cisco Prime™ Data Center Network Manager (DCNM) software. It delivers advanced storage networking features and functions with ease of management and compatibility with the entire Cisco MDS 9000 Family portfolio for reliable end-to-end connectivity.

MDS 9396S SWITCH W/ 96 ACTIVE PORTS PORT-SIDE INTAKE Tech Specs

MDS 9396S SWITCH W/ 96 ACTIVE PORTS PORT-SIDE INTAKE specifications
Depth22.3"
Width17.4"
Height3.4"
Brand NameCisco
ManageableYes
Form FactorRack-mountable
ManufacturerCisco Systems, Inc
Product NameMDS 9396S Fibre Channel Switch
Product TypeFibre Channel Switch
Product ModelMDS 9396S
Product FamilyMDS 9300
Product SeriesMDS 9300
Show all 25 specs
Data Transfer Rate16 Gbit/s
Ethernet Technology16 Gigabit Ethernet
Plug/Connector TypeC15 to C16
Compatible Rack Unit2U
Weight (Approximate)39.24 lb
Total Number of Ports96
Number of Active Ports96
Redundant Power SupplyYes
Manufacturer Part NumberDS-C9396S-96IK9
Certifications & Standards<ul><li>CE Marking</li><li>UL 60950</li><li>CAN/CSA-C22.2 No. 60950</li><li>EN 60950</li><li>IEC 60950</li><li>TS 001</li><li>AS/NZS 3260</li><li>IEC60825</li><li>EN60825</li><li>21 CFR 1040</li><li>EMC compliance</li><li>FCC Part 15 (CFR 47) Class A</li><li>ICES-003 Class A</li><li>EN 55022 Class A</li><li>CISPR 22 Class A</li><li>AS/NZS 3548 Class A</li><li>VCCI Class A</li><li>EN 55024</li><li>EN 50082-1</li><li>EN 61000-6-1</li><li>EN 61000-3-2</li><li>EN 61000-3-3</li></ul>
Hot Swappable Power SupplyYes
Manufacturer Website Addresshttp://www.cisco.com
Number of Fibre Channel Ports96

MDS 9396S SWITCH W/ 96 ACTIVE PORTS PORT-SIDE INTAKE Datasheets and Resources
