STARTECH.COM

M.2 SSD ENCLOSURE USB M2 SATA USB3 SATA M.2 SSD PORTABLE ADAPTER

SKU: YW7228VPN: SM2NGFFMBU33

M.2 SSD ENCLOSURE USB M2 SATA USB3 SATA M.2 SSD PORTABLE ADAPTER

Key Features

  • NOTE: Not compatible with M.2 NVMe or AHCI PCI-Express SSDs. Please confirm you have a SATA M.2 drive before purchasing by referring to your M.2 drive specifications, or contact the drive manufacturer to confirm
  • BROAD COMPATIBILITY: The enclosure supports most common SATA M.2 SSDs including 30mm, 42mm, 60mm and 80mm and is also compatible with SATA revisions I/II/III (1.5 / 3.0 / 6.0 Gbps).
  • INCREASED PERFORMANCE: Boost external performance with this M.2 SDD enclosure by turning your SATA M.2 solid state drive into a high speed USB 3.0 thumb drive; The enclosure also supports UASP
  • PORTABLE & NO DRIVER INSTALLATION: This black lightweight M.2 SATA SSD enclosure offers perfect portability; It supports any operating system with no additional software or drivers required
  • BUILT TO LAST: This portable hard drive enclosure protects your drive from damage; The M.2 NGFF features specially engineered ventilation holes which help maintain a cooler operating environment
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

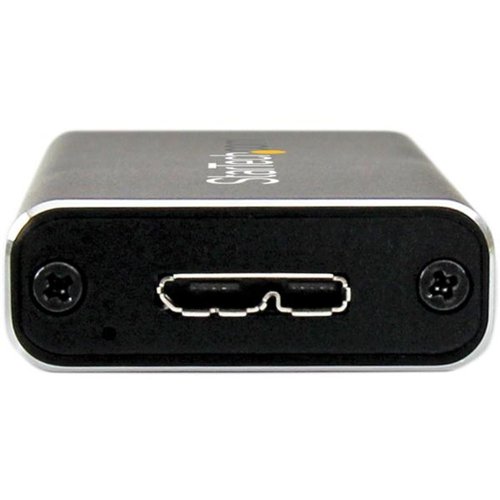

The SM2NGFFMBU33 external USB 3.0 to M.2 (NGFF) enclosure turns your SATA M.2 solid state drive into a portable, high speed USB 3.0 drive. Get higher external performance by using an M.2 SSD in place of a platter drive, harnessing the full potential of your USB 3.0 computer system. The enclosure supports UASP, enabling you to achieve transfer speeds up to 70% faster than traditional USB 3.0 when used with a UASP-enabled host computer. This slim, pocket-sized SSD enclosure has been specifically engineered for mobility. The enclosure features a lightweight yet durable design, which fits easily into your pocket or laptop bag. For further convenience, the enclosure is powered entirely using the USB host bus and requires no external power adapter. Durable aluminum construction helps to ensure your drive won't be damaged while you're on the move. Plus, to maximize heat dissipation the enclosure features specially engineered ventilation holes which help maintain a cooler operating environment for optimal performance and a longer life span for your drive. For wide compatibility with all of the common M.2 solid state drives, the enclosure can mount multiple drive heights including: 2242, 2260, and 2280. The M.2 enclosure is backed by a StarTech.com 2-year warranty and free lifetime technical support. Improved Performance with UASP UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing UASP also shows an 80% reduction in required processor resources. Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.

Tech Specs

M.2 SSD ENCLOSURE USB M2 SATA USB3 SATA M.2 SSD PORTABLE ADAPTER specifications
Depth3.9"
Width1.4"
Height0.6"
Brand NameStarTech.com
Form FactorExternal
Color FamilyBlack
ManufacturerStarTech.com
Product NameUSB 3.0 to M.2 SATA External SSD Enclosure with UASP
Product TypeDrive Enclosure
UASP SupportYes
Wireless LANNo
Product ColorBlack
Show all 28 specs
TAA CompliantYes
Host InterfaceUSB 3.0 Micro-B
Drive InterfaceM.2
Package Contents<ul><li>USB 3.0 to M.2 SATA External SSD Enclosure with UASP</li><li>1 x USB 3.0 Cable</li><li>1 x SSD screw kit</li><li>1 x Mini Screw Driver</li><li>1 x Instruction Manual</li></ul>
Product MaterialAluminum
Country of OriginTaiwan
Packaged Quantity1 Each
Weight (Approximate)1.76 oz
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberSM2NGFFMBU33
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
Number of Total Expansion Bays1
Number of Solid State Drive InstalledNo
Number of Solid State Drive Supported1
