VERTIV-IT SYSTEMS

LONGVIEW SINGLE VGA USB AUDIO CATX 300M

SKU: 3A0183VPN: LV3010P-001

LONGVIEW SINGLE VGA USB AUDIO CATX 300M

Key Features

  • KVM EXTENDER: Delivers seamless KVM control while moving computing assets away from the workspace to secure, climate-controlled environments.
  • USB POWERED TRANSMITTER: Supports VGA transmission common to many computer monitors and also supports isochronous USB devices, such as webcams, USB audio and touchscreens.
  • PURCHASE INCLUDES: 1x transmitter and 1x receiver, 2x VGA cables, 1x 3.5 mm audio cable, 2x USB B to A cables, and 2x power supplies with power cords.
  • PRECISION VIDEO: Provides high-resolution (1920x1200) video images and high-quality audio for single and multi-screen desktops
  • LOCAL FEED THROUGH PORT: Desktop pass-through port allows use of a local console. Also features plug-and-play design with no drivers or software to install, and no on-site configuration required.
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

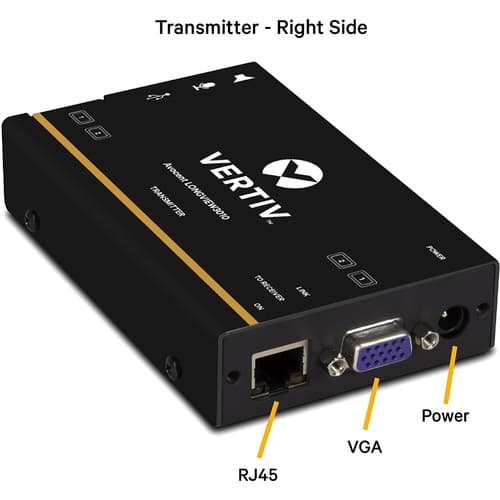

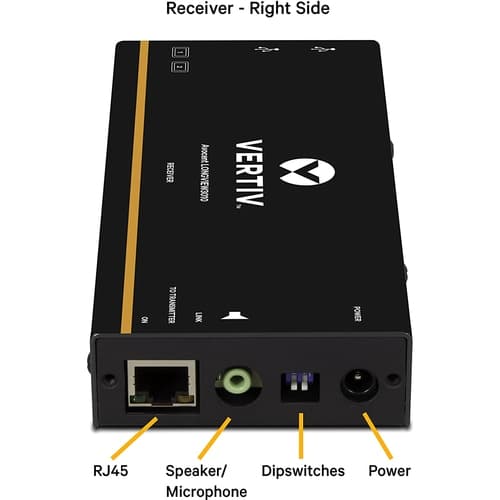

The Vertiv™ Avocent® LongView LV3010 KVM Extender offers industry-leading video clarity, seamless compatibility, and high-density rack performance. Designed for single-screen desktops, this USB, VGA, and audio extender delivers sharp, high-resolution video and crisp audio. The LV3010 provides superb video quality at extended distances up to 1,000 feet (300 meters) via a single CATx cable, thanks to advanced video compensation and a built-in variable noise filter. A local access port at the transmitter enables easy console use, while the receiver includes a 4-port USB hub for connecting peripherals. The LV3010 supports dual-user setups, allowing two units to control one computer simultaneously, with USB arbitration ensuring smooth operation.

Tech Specs

LONGVIEW SINGLE VGA USB AUDIO CATX 300M specifications
USBYes
VGAYes
Brand NameVertiv AVOCENT
Device TypeKVM Extender
Form FactorRack-mountable
Rack Height2U
Graphic ModeWUXGA
ManufacturerVertiv
Product LineLV
Product NameLV3010 Single VGA KVM Extender
Product TypeKVM Console/Extender
Input Voltage240 V AC
Show all 40 specs
Product ModelLV3010
Product FamilyLV 3000
Product Series3000

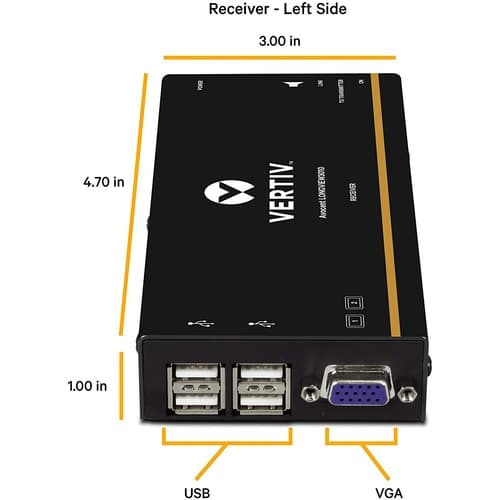

Receiver Depth1"
Receiver Width6.10"
Network (RJ-45)Yes
Receiver Height3"
Country of OriginUnited Kingdom
Packaged Quantity1
Power Consumption12 W

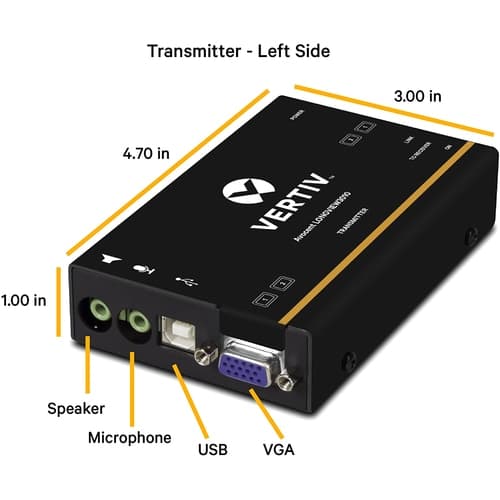

Transmitter Depth1"
Transmitter Width6.10"
Platform SupportedPC
Transmitter Height3"
Input Voltage Range100 - 240VAC
Number of USB Ports5
Number of VGA Ports2
Connectivity TechnologyWired
Manufacturer Part NumberLV3010P-001
Maximum Video Resolution1920 x 1200
Maximum Operating Distance1000 ft
Manufacturer Website Addresshttp://www.vertiv.com/
Number of Computers Supported1
Receiver Weight (Approximate)12.35 oz
Number of Local Users Supported1
Number of Network (RJ-45) Ports2
Number of Remote Users Supported1
Transmitter Weight (Approximate)15.17 oz
