LG ELECTRONICS

LG MED 31IN 12MP DIAG DISP ALL MODALITIES+BREAST CALIBRATE SOFT

SKU: 8JT056VPN: 31HN713D-B

LG MED 31IN 12MP DIAG DISP ALL MODALITIES+BREAST CALIBRATE SOFT

Key Features

  • 31-inch 12MP (4200x2800) IPS Display
  • Multi-resolution Mode (12/6MP)
  • 1080 cd/? (Typ.)
  • Pathology Mode, Focus View Mode
  • Lighting (Down/Wall Lighting)
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

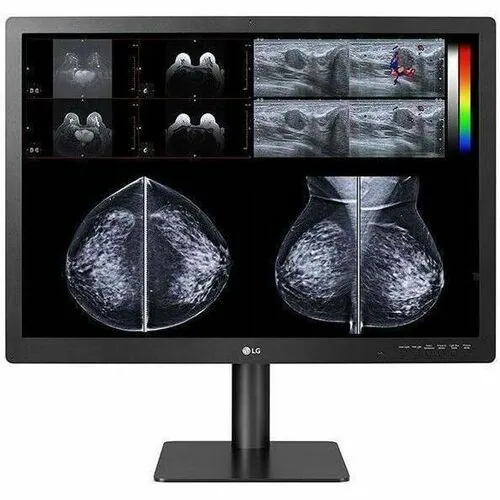

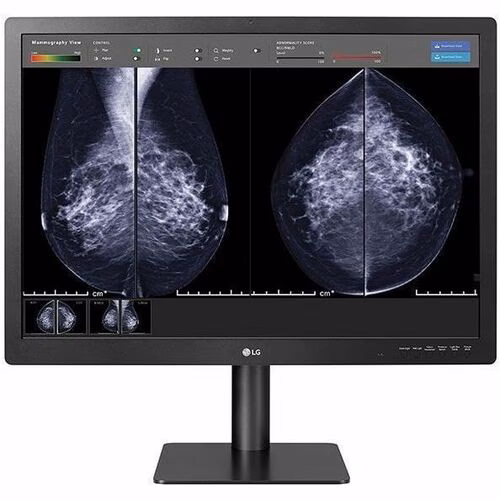

31-inch 12MP IPS Display | Designed for Mammography

The 12MP display creates a clear image that allows details to be visible.

Accuracy

31-inch 12MP IPS Display
Self-calibration with Front Sensor

Efficiency

Focus View
Picture by Picture & Dual Controller

Convenience

6 Hot Key
Ergonomic Design

Accurate Imaging | Multi-resolution Mode | Multi-resolution Mode for Compatibility

Diagnostic monitors often need to be connected to various modalities, sometimes with differing resolutions. The 31HN73D-B has a multi-resolution mode you can adjust to optimize to the connected device.

Pathology Mode | Realistic Color Reproduction

In Pathology Mode, the 31HN713D-B Diagnostic Monitor reproduces virtually the same level of detail and color as seen directly under a microscope.

Self-calibration | Consistency in Medical Images

The front-sensor allows for automatic, self-calibration without the need for additional measuring equipment. Get quality and consistency of medical images that are displayed by maintaining accurate values.

Presence Sensor

The Presence Sensor on the 31HN713D-B diagnostic monitor automatically turns off the display when no motion is detected. Be more secure against exposing patient information and other sensitive data with this feature.

Auto Luminance Sensor

Auto Luminance sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by aging for a consistently stable display during the usage life.

Focus View | Fully Focus on the Important part

LG 31HN713D-B includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the important part of the image to help achieve a more accurate and efficient diagnosis.

Down Lighting & Wall Lighting | Optimal Reading Condition

Down and Wall Lighting Modes help reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.

6 Hot Keys | Intuitive Control

The 31HN713D-B's 6 Hot Keys make changing between screen modes easy. The 6 Hot Keys are quick and easy to operate while working, allowing you to change mode, screen resolution, and lighting settings without disrupting your workflow.

Easy to Install and Ergonomic Design

The One-Click Stand and ultra-lightweight body make installing the 31HN713D-B simple. The ergonomically designed stand allows users to freely adjust the tilt, height, and swivel.

Tech Specs

LG MED 31IN 12MP DIAG DISP ALL MODALITIES+BREAST CALIBRATE SOFT specifications
USBYes
HDMINo
Depth3.3"
Width27.7"
Height19.7"
FeaturesBrightness Uniformity Function
Frequency50 Hz
HeadphoneYes
Brand NameLG
Brightness1080 Nit
Color Depth10-bit
Color Gamut97% sRGB
Show all 58 specs
DisplayPortYes
Pixel Pitch0.18159 mm x 0.18159 mm
Aspect Ratio16:9
Color FamilyBlack
ManufacturerLG Electronics
Product Name31HN713D-B LCD Monitor
Product TypeLCD Monitor
Product ColorMatte Black
Product Model31HN713D-B
Response Time5 ms
TAA CompliantYes
Contrast Ratio1,800:1
Glass Hardness3H
Screen SurfaceAnti-glare
Adjustable StandYes
Depth with Stand11.02"
Package Contents<li>31HN713D-B LCD Monitor</li><li>Calibration Report</li><li>DisplayPort Cable</li><li>Power Cord</li><li>Power Adapter</li><li>USB Cable</li>
Panel TechnologyIn-plane Switching (IPS) Technology
Width with Stand27.74"
DisplayPort InputYes
Height with Stand26.09"
Number of Screens1
Screen Size Class31"
DisplayPort OutputNo
Maximum Resolution4200 x 2800
Input Voltage Range120V to 230V
Backlight TechnologyLED
Viewable Screen Size31"
Weight (Approximate)23.59 lb
Response Time Details14 ms GTG Off Mode
Additional Information<li>ecommerceUse:No</li> <li>HDR:No</li> <li>HDR Effect:No</li> <li>Screen Flip:No</li> <li>Quick Charge:No</li> <li>DDC/CI.1:No</li> <li>Original Ratio:No</li> <li>Uniformity Compensation:No</li> <li>Key Lock:No</li> <li>Calibration Software:LG Calibration Studio</li> <li>DICOM Mode:No</li> <li>DPM:No</li> <li>Failover Input Switch:No</li> <li>User Preset Quick Setting:No</li> <li>4 Screen Split:No</li> <li>Color Temperature:No</li> <li>Uniformity:No</li> <li>DynaMic Sync Mode (Thru Mode):No</li> <li>HDCP.1:No</li> <li>DICOM Calibrated:No</li> <li>BLS (ALS):No</li> <li>Gamma:No</li> <li>Picture Mode:No</li> <li>Base Detachable:No</li> <li>HDMI In:No</li> <li>3G-SDI In:No</li> <li>RS-232C In (D-sub 9-pin):No</li> <li>DVI In:No</li> <li>DVI Out:No</li> <li>Audio Output Jack Location:No</li> <li>12G-SDI Out (3.5 mm):No</li> <li>DC In (4 pin):No</li> <li>AC In:No</li> <li>3G-SDI Out:No</li> <li>12G-SDI In (3.5 mm):No</li> <li>Anti-Fingerprint:No</li> <li>Anti-Reflective:No</li> <li>Thickness:No</li> <li>Hot Key:No</li> <li>Lighting</li> <li>Picture-in-Picture (PIP):No</li> <li>Smart Energy Saving:No</li> <li>Black Stabilizer:No</li> <li>USB Plug & Play:No</li> <li>Impact Protection:No</li> <li>ICES-003:No</li> <li>Windows 10:No</li> <li>CE MDD (EU):No</li> <li>ANSI/AAMI ES 60601-1:No</li> <li>CMDR (Canada):No</li> <li>GMP:No</li> <li>IP Rating (Solid / Liquid Ingress) (Front):No</li> <li>TGA / RCM (Australia):No</li> <li>CE (MDD 93/42/EEC, 2007/47/EC):No</li> <li>CISPR (Global):No</li> <li>RCM (Australia):No</li> <li>CSA (CAN/CSA C22.2 No.60601-1, CSA 22.2 No.601.1-M90):No</li> <li>kgMP:No</li> <li>ISO13485:No</li> <li>IP Rating (Solid / Liquid Ingress) (Rear):No</li> <li>UL/cUL Certification</li> <li>Auto Luminance Sensor</li> <li>Brightness Stabilization</li> <li>Text Mode</li> <li>Multi-resolution Mode</li> <li>Country of Assembly:Korea</li>
Number of DisplayPorts2
Pixel Pitch (Vertical)0.18159 mm
Vertical Viewing Angle178°
Environmental ComplianceRegistration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Environmentally FriendlyYes
Horizontal Viewing Angle178°
Manufacturer Part Number31HN713D-B
Pixel Pitch (Horizontal)0.18159 mm
Maximum Adjustable Height4.33"
Maximum Power Consumption180 W
Certifications & Standards<li>MFDS (KR)</li> <li>FCC Part 15 Class A</li> <li>IEC (IEC 60601-1 / IEC 60601-1-2)</li> <li>CSA (CAN/CSA-C22.2 NO. 60601-1):Yes</li> <li>EN (EN 60950-1/EN55032, 55024):Yes</li> <li>CE (Regulatory):Yes (MDR)</li> <li>IEC (IEC 60950-1/EN (EN 60950-1/EN 55032, 55035):Yes</li> <li>FDA (US):FDA (510 (k) (Class II))</li> <li>IEC (IEC 60950-1/IEC 55032, 55024):Yes</li>
Environmental CertificationRoHS
Manufacturer Website Addresshttps://solutions.lg.com/us
Number of Audio Line Out Ports1
Weight with Stand (Approximate)30.86 lb
