BLACK BOX CORPORATION

KVX SERIES DVI-D KVM EXTENDER SH TX+RX

SKU: 12MX99VPN: KVXLC-100-R2

KVX SERIES DVI-D KVM EXTENDER SH TX+RX

Key Features

  • Supports DVI-D video resolution up to 1920x1200 at 60 Hz
  • Local and remote units connect at distances of up to 330 feet (100m) using standard CAT5e/6 cables
  • Transparent USB 2.0 extension supports HID devices, mass storage devices
  • Supports RS-232 peripheral (serial) devices
  • Bi-directional audio via speaker/mic connection
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Extend KVM signals up to 100m over CAT5 cable. The KVX DVI-D KVM Extender lets you control a server or computer over a standard CAT5 or CAT6 UTP network cable connection at distances of up to 330 feet (100 meters). PC connection cables are included with this product making it a solution that is ready to use right out of the box. You can use your existing keyboard mouse and monitor to access both the server room and your office computer saving space and avoiding the need for a dedicated remote console. Available with support for one or two monitors KVX is the perfect low-cost solution for transportation control centers medical facilities industrial warehouses and extended workstations. KVX is equipped with an RS-232 serial channel that connects to a serial terminal or to serial devices such as touchscreens and barcode scanners. It eliminates the need for traveling back and forth between the local computer and remote console making it an efficient and flexible solution. KVX also includes local video allowing access to an additional monitor at the transmitter side. It's perfect for any situation that requires monitoring of connected PCs. This extender is TAA compliant and backed by free lifetime technical support. KVX is ideal for applications that require the console to be in a conveniently accessible location while the system equipment needs to reside in a safe place - away from dust dirt and harsh environmental influences. It also provides a cost-effective way of keeping sensitive data such as financial and personal information safe in a heavily secured data center while still allowing remote access to users.

Tech Specs

KVX SERIES DVI-D KVM EXTENDER SH TX+RX specifications
DVIYes
USBYes
Brand NameBlack Box
Device TypeKVM Extender
ManufacturerBlack Box Corporation
Product NameKVX Series KVM Extender Kit over CATx - DVI-D, USB 2.0, Serial, Audio, Local Video
Product TypeKVM Extender
Input Voltage5 V DC
Product ModelKVXLC-100-R2
TAA CompliantYes
Product FamilyKVX
Product SeriesKVX
Show all 35 specs
Receiver Depth3.27"
Receiver Width7.09"
Network (RJ-45)Yes
Receiver Height1.06"

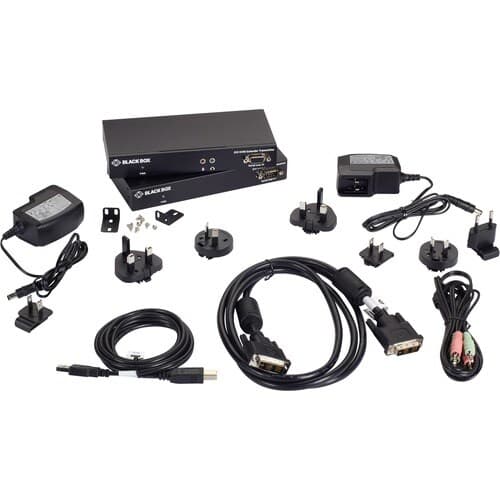

Package Contents<ul> <li>1 x Transmitter</li> <li>1 x Receiver</li> <li>2 x 5V, 2A Power Supplies (includes US, EU, and UK plug types)</li> <li>1 x DVI-D cable 1.8m (6 ft.)</li> <li>1 x 3.5mm audio cable 1.8m (6 ft.)</li> <li>1 x USB-B to USB-A cable 1.8m (6 ft.)</li> <li>2 x Deskmount Kits with Screws (KVXLC-DMK)</li> </ul>
Transmitter Depth3.27"
Transmitter Width7.09"
Transmitter Height1.06"
Number of DVI Ports3
Number of USB Ports5
Connectivity TechnologyWired
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Manufacturer Part NumberKVXLC-100-R2
Maximum Video Resolution1920 x 1200
Maximum Operating Distance330 ft
Manufacturer Website Addresshttp://www.blackbox.com
Number of Computers Supported1
Receiver Weight (Approximate)13.44 oz
Additional Warranty Information<p><b>Warranty:</b> 2 Year Double Diamond™ Warranty (Standard)</p> <p></p> <p> </p> <p></p>
Number of Local Users Supported1
Number of Network (RJ-45) Ports2
Number of Remote Users Supported1
Transmitter Weight (Approximate)12.64 oz
