KVM SWITCH 2X1 8K/4K 1.4 BIKVM SWITCH1.6FT
KVM SWITCH 2X1 8K/4K 1.4 BIKVM SWITCH1.6FT
Key Features
- Bi-Directional Switching: Easily switches between two sources to one display or one source to two displays.
- 8K Resolution Support: Capable of supporting video resolutions up to 8K at 30Hz or 4K at 120Hz, depending on the computer and monitor.
- DP1.4 Specification: Fully supports the DP1.4 specification for advanced performance.
- Power Options: Draws power through the DP male connector, with an optional Type-C female port for additional power supply.
- HDR and HDCP Pass-Through: Supports High Dynamic Range (HDR) and High-bandwidth Digital Content Protection (HDCP) pass-through for superior video quality.
- Audio Support: Compatible with both uncompressed and compressed audio formats.
- Quick Toggle Button: Features a convenient button for rapid switching between video sources or monitors.
- Optimal Cable Length: For best signal quality, it is recommended to use a DP1.4 cable within 2 meters.
- Warranty: Rocstor 2-Year Limited Warranty.
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

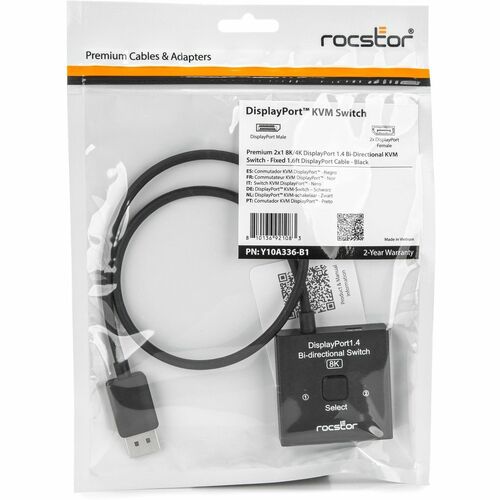

Rocstor's DisplayPort 1.4 2-in-1 Bi-directional Switcher is designed for seamless 8K resolution switching. This versatile device allows you to switch between two sources to one display or one source to two displays effortlessly by pressing the switch button. Equipped with a 50cm fixed DP cable (pigtail), it not only reduces costs but also simplifies the setup process for users. The switcher supports high-definition video across various resolutions, including up to 8K, and handles digital audio efficiently. Power can be supplied through the DP male connector, with an optional Type-C female port available as a backup power supply to deliver 5V power when needed.
This premium 2x1 DisplayPort 1.4 Bi-Directional KVM Switch offers robust functionality, making it an ideal solution for high-resolution displays and multiple source management. Whether you need to toggle between two video sources or switch one source to two different displays, this switcher provides the flexibility and reliability required for seamless connectivity. Backed by Rocstor 2-year limited warranty and lifetime free technical support.
Tech Specs
| Width | 2.1" |
|---|---|
| Height | 0.5" |
| Length | 2.10" |
| Features | LED Indicator |
| Brand Name | Rocstor |
| DisplayPort | Yes |
| Graphic Mode | 4K |
| Manufacturer | Rocstor |
| Product Name | Premium DisplayPort1.4 Bi-directional Switcher for 8K |
| Product Type | KVM Switchbox |
| Package Contents | <ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Premium DisplayPort1.4 Bi-directional Switcher for 8K</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>1 x User Manual</li></ul> |
| Country of Origin | Vietnam |
Show all 22 specsShow fewer
| Packaged Quantity | 1 |
|---|---|
| Weight (Approximate) | 2.20 oz |
| Number of DisplayPorts | 3 |
| Connectivity Technology | Wired |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | Y10A336-B1 |
| Maximum Video Resolution | 7680 x 4320 |
| Manufacturer Website Address | http://www.rocstor.com |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Operating Temperature | 32°F (0°C) |
