APC SCHNEIDER ELECT IT DIRECT SHIP

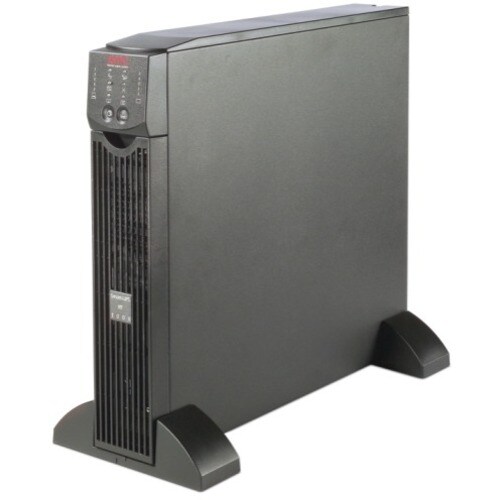

INTL SMART-UPS RT 1000VA TWR ONLINE EXTENDED RUN 230V

SKU: 831355VPN: SURT1000XLI

INTL SMART-UPS RT 1000VA TWR ONLINE EXTENDED RUN 230V

Key Features

  • Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
  • Keep your sensitive devices powered with a backup of up to 10.20 minute at full load
  • 700 W load capacity - backup power for your valuable electronics
  • 1000 VA load capacity - work without any interruption during power outages
  • 3 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
  • Lead Acid battery chemistry for your convenience and better usability
  • IEC 320-C14 plug/connector type for a secure, feasible operation
  • IEC 60320 C13 receptacle type offers maximum safety, convenience, and increased usability
  • 220 V AC input voltage for optimal performance with maximum usability
  • 230 V AC output voltage for better reliance and maximum usability
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

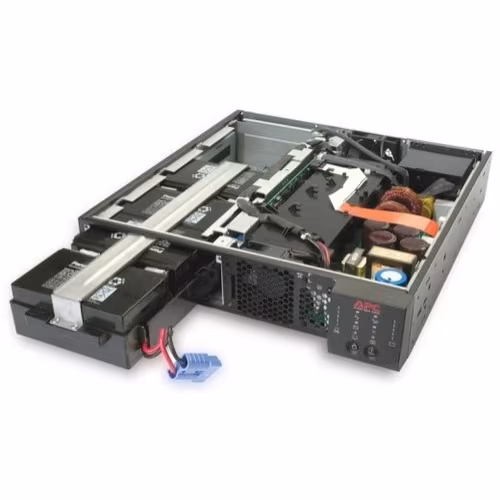

Smart-UPS RT is a family of high preformance UPSs for servers, networking equipment, telecommunication systems, industrial and medical equipment, and other mission-critical applications. Smart-UPS RT UPSs are based on the field-proven, industry-leading Smart-UPS functionality, but features double conversion on-line topology, which delivers tight voltage and frequency regulation, zero transfer time to and from battery, and input power factor correction. While offering advanced performance and high availability features, the Smart-UPS RT can be managed using PowerChute software, as well as an array of SmartSlot accessories. Smart-UPS RT provides battery back up to the load through the use of internal batteries. However, an unlimited number of external battery packs can be added to meet desired levels of runtime. All Smart-UPS RTs and battery packs ship in tower configuration, while easily converting to the 19" rack-mount mode with the addition of an APC Rail Kit.

Tech Specs

INTL SMART-UPS RT 1000VA TWR ONLINE EXTENDED RUN 230V specifications
AlarmLow Battery
Depth19"
Width17"
Height3.4"
Brand NameAPC by Schneider Electric
Form FactorTower
Serial PortYes
Color FamilyBlack
ManufacturerSchneider Electric SA
Product LineSmart-UPS
Product NameSmart-UPS RT 1000VA
Product TypeDouble Conversion Online UPS
Show all 49 specs
Bypass SwitchAutomatic
Hot SwappableYes
Input Voltage220 V AC
Product ColorBlack
Transfer Time0 ns
Waveform TypeSine Wave
Output Voltage230 V AC
Product FamilySmart-UPS RT
Product SeriesRT
Receptacle TypeIEC 60320 C13
Package Contents<li>Smart-UPS RT 1000VA </li><li>CD with software</li><li>Smart UPS signalling RS-232 cable</li><li>User manual</li>
Battery ChemistryLead Acid
Country of OriginPhilippines
Packaged Quantity1 Each
Receptacle Detail6 x IEC 60320 C13
Status IndicatorsLED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery, Overload and Bypass Indicators.
Battery ManagementIntelligent Battery Management
Load Capacity (VA)1000 VA
Emergency Power OFFOptional
Plug/Connector TypeIEC 320-C14
Surge Energy Rating420 J
Thermal Dissipation70.04 W
Load Capacity (Watt)700 W
Weight (Approximate)50.60 lb
Additional Information<ul><li>Automatic Self Test</li><li>Automatic Shutdown</li><li>Automatic Voltage Regulation (AVR)</li><li>Built-in automatic bypass</li><li>Cold-start</li><li>Compact and Lightweight</li><li>Designed and manufactured under ISO9001 / ISO14001 certification</li><li>Downloadable Firmware</li><li>Early-warning Problem Notification</li><li>Faster Recharge Time</li><li>Generator Compatible</li><li>Input Power Factor Correction</li><li>Lightning and Surge Protection</li><li>Load Meter</li><li>Multi-colored Flashing LED</li><li>Network-grade line conditioning</li><li>Overload Handling Capacity</li><li>Programmable Frequency</li><li>Scalable Run Time</li><li>Surge Protection</li><li>Temperature Compensated Battery Charging</li><li>Terminal Mode Programmability</li><li>Unattended Safe & Graceful Shutdown</li><li>Up to 90% efficiency</li><li>Web Management</li><li>Wide input voltage range</li><li>Multiple Output Voltages</li><li>Configurable for 220 : 230 or 240 nominal output voltage</li></ul>
Battery CharacteristicsSpill-proof, Maintenance-free
Environmentally FriendlyYes
Manufacturer Part NumberSURT1000XLI
Certifications & Standards<ul><li>C-tick</li><li>CE</li><li>EN 50091-1</li><li>EN 50091-2</li><li>EN 55022 Class A</li><li>EN 60950</li><li>EN 61000-3-2</li><li>GOST</li><li>PCBC</li><li>VDE</li><li>UL 1449</li></ul>
Backup/Run Time (Full Load)10.20 Minute
Backup/Run Time (Half Load)24.40 Minute
Sound Emission (A-Weighted)50 dB(A)
Manufacturer Website Addresshttp://www.schneider-electric.com
Maximum Operating Temperature122°F (50°C)
Typical Battery Recharge Time3 Hour
Total Number of Expansion Slots1
Number of Battery & Surge Outlets8
