CISCO - HW SWITCHES DT

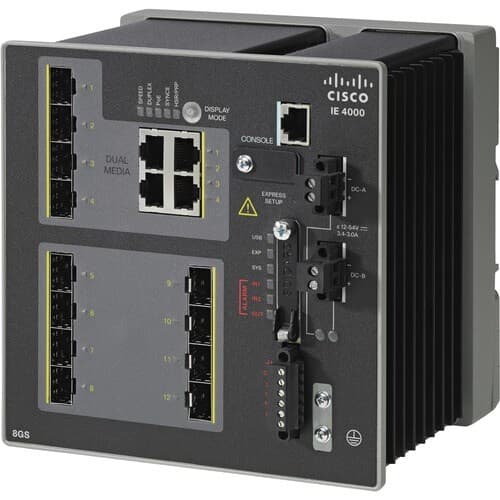

IE 4000 8 X SFP 1G 4 X 1G COMBO LAN BASE

SKU: ZH0813VPN: IE-4000-8GS4G-E

IE 4000 8 X SFP 1G 4 X 1G COMBO LAN BASE

Key Features

  • Effectively increases available bandwidth on your network
  • Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
  • Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 4 ports
  • Can work as layer 3 routing for scalable network design
  • The switch is rail mountable, you can easily install it in racks with concrete stability
  • Management capability allows maximum efficiency and with unrestricted control
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Optical Fiber media support for efficient and reliable connectivity
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements.

The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial switches, such as the Cisco IE 2000 and IE 3000.

The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE 4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security, data, video, and voice services over industrial networks.

Tech Specs

IE 4000 8 X SFP 1G 4 X 1G COMBO LAN BASE specifications
Depth6.1"
Width6.1"
Height5.1"
ModularNo
Brand NameCisco
ManageableYes
Stack PortNo
Form FactorRail-mountable
Uplink PortYes
ManufacturerCisco Systems, Inc
Power SourcePower Supply
Product NameIE-4000-8GS4G-E Ethernet Switch
Show all 32 specs
Product TypeEthernet Switch
Product ModelIE-4000-8GS4G-E
TAA CompliantYes
Product Family4000
Product Series4000
Layer Supported3
Shared SFP SlotYes
Network Technology1000Base-T
Ethernet TechnologyGigabit Ethernet
Expansion Slot TypeSFP
Number of SFP Slots8
Media Type SupportedOptical Fiber
Weight (Approximate)6.35 lb
Environmentally FriendlyYes
Manufacturer Part NumberIE-4000-8GS4G-E
Certifications & Standards<ul><li>TAA Compliant</li><li>CE</li></ul><b>Electromagnetic Emissions:</b><ul><li>FCC 47 CFR Part 15 Class A</li><li>EN 55022A Class A</li><li>VCCI Class A</li><li>AS/NZS CISPR 22 Class A</li><li>CISPR 11 Class A</li><li>CISPR 22 Class A</li><li>ICES 003 Class A</li><li>CNS13438 Class A</li><li>KN22</li></ul><b>Electromagnetic Immunity:</b><ul><li>EN55024</li><li>CISPR 24</li><li>AS/NZS CISPR 24</li><li>KN24</li><li>EN 61000-4-2 Electro Static Discharge</li><li>EN 61000-4-3 Radiated RF</li><li>EN 61000-4-4 Electromagnetic Fast Transients</li><li>EN 61000-4-5 Surge</li><li>EN 61000-4-6 Conducted RF</li><li>EN 61000-4-8 Power Frequency Magnetic Field</li><li>EN 61000-4-9 Pulse Magnetic Field</li><li>EN 61000-4-11 AC Power Voltage</li><li>EN 61000-4-18 Damped Oscillatory Wave</li><li>EN-61000-4-29 DC Voltage Dips</li></ul><b>Industry Standards:</b><ul><li>EN 61000-6-1 Light Industrial</li><li>EN 61000-6-2 Industrial</li><li>EN 61000-6-4 Industrial</li><li>EN 61326 Industrial Control</li><li>EN 61131-2 Programmable Controllers</li><li>IEEE 1613 Electric Power Stations Communications Networking</li><li>IEC 61850-3 Electric Substations Communications Networking</li><li>EN50155 Railway - Electronic Equipment on Rolling Stock (EMC, ENV, Mech)</li><li>EN50121-4 Railway - Signaling and Telecommunications Apparatus</li><li>EN50121-3-2 Railway - Apparatus for Rolling Stock</li><li>ODVA Industrial EtherNet/IP</li><li>PROFINET conformance B</li><li>IP30 (per EN60529)</li></ul><b>Information Technology Equipment:</b><ul><li>UL/CSA 60950-1</li><li>EN 60950-1</li><li>CB to IEC 60950-1 with all country deviations</li><li>NOM to NOM-019-SCFI (through partners and distributor)</li></ul><b>Industrial Floor (Control Equipment):</b><ul><li>UL 508</li><li>CSA C22.2, No 142</li></ul><b>Hazardous Locations:</b><ul><li>ANSI/ISA 12.12.01 CSA C22.2 No 213</li><li>IEC 60079-0, -15 IECEx test report</li><li>EN 60079-0, -15 ATEX certification (Class I Zone 2)</li></ul><b>Shock and Vibration:</b><ul><li>IEC 60068-2-27 (operational shock, 50G, 11ms, Half Sine)</li><li>IEC 60068-2-27 (Non-Operational Shock, 65-80G, 9ms, Trapezoidal)</li><li>IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Operational Vibration)</li><li>IEC 60068-2-6, IEC 60068-2-64, EN 61373 (Non-operational Vibration)</li></ul><b>Corrosion:</b><ul><li>ISO 9223: Corrosion</li><li>class C3-Medium</li><li>class C4-High</li><li>EN 60068-2-52 (Salt Fog)</li><li>EN 60068-2-60 (Flowing Mixed Gas)</li></ul><b>IEEE Standards:</b><br><ul><li>802.1D MAC Bridges, STP</li><li>802.1p Layer2 COS prioritization</li><li>802.1q VLAN</li><li>802.1s Multiple Spanning-Trees</li><li>802.1w Rapid Spanning-Tree</li><li>802.1x Port Access Authentication</li><li>802.1AB LLDP</li><li>802.3ad Link Aggregation (LACP)</li><li>802.3af Power over Ethernet provides up to 15.4W DC power to each end device</li><li>802.3at Power over Ethernet provides up to 25.5W DC power to each end device</li><li>802.3af Power over Ethernet</li><li>802.3at Power over Ethernet Plus</li><li>802.3ah 100BASE-X SMF/MMF only</li><li>802.3x full duplex on 10BASE-T</li><li>802.3 10BASE-T specification</li><li>802.3u 100BASE-TX specification</li><li>802.3ab 1000BASE-T specification</li><li>802.3z 1000BASE-X specification 1588v2 PTP Precision Time Protocol</li></ul>
Port/Expansion Slot Details8 x Gigabit Ethernet Expansion Slot
Manufacturer Website Addresshttp://www.cisco.com
Total Number of Network Ports4
Total Number of Expansion Slots8.0
