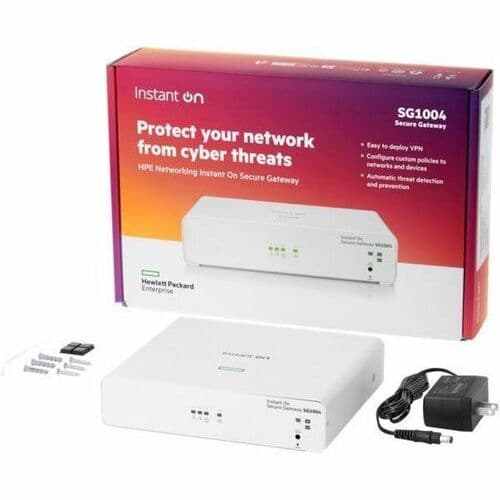

HPE NW ION GTWY 4P G SG1004 US EN PL-I5
HPE NW ION GTWY 4P G SG1004 US EN PL-I5
Key Features
- Cloud-based management: Seamless remote monitoring and management controls through centralized Instant On Cloud Portal/app; automated firmware updates delivered through the cloud.
- Secure the LAN: Implementation of Zero Trust model architecture and enhanced hardware-accelerated firewall features keep your business safe
- WAN redundancy and load balancing: Automatically selects the most optimal WAN connection when multiple ISP connections are detected for uninterrupted internet access
- Enhanced user experience: Improved and more intuitive design for simplified navigation and user experience.
- PoE+ support (SG2505P): Up to 60W of Power over Ethernet (PoE) budget for simplified device deployment.
- Multi-gigabit WAN support (SG2505P): New multi-gigabit WAN ports for faster and more reliable connectivity.
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The HPE Networking Instant On Secure Gateway is a powerful, cloud managed security solution designed for small and growing businesses. It delivers enterprise-grade security-firewall, IDS/IPS, VPN, PoE, and WAN resiliency-without hidden fees or licenses. Managed through a single platform, it offers domain blocking, deep packet inspection, and 24x7 network monitoring to protect against cyber threats. Designed with ease of use in mind, it enables minimum-touch deployment and automated configuration, making network setup and management accessible even for non-technical users. Ideal for securing customer data, transactions, and multi-site connectivity, this gateway provides easy, reliable control tailored to SMB needs, combining simplicity with top-tier protection.
Features | Active Threat Monitoring with Intrusion Detection and Prevention (IDS/IPS)
IDS and IPS monitor network traffic for suspicious activities. IDS detects and alerts administrators about potential security breaches, while IPS actively blocks or prevents threats in real-time.
Together, IDS and IPS enhance network security by identifying and responding to potential intrusions.
Keep the Network Safe with a Stateful Firewall
This monitors and controls network traffic based on policies, creating a barrier between trusted internal networks and untrusted external networks to prevent unauthorized access and cyber threats.
Default settings block external traffic from accessing the LAN. policies can allow or block traffic, enable port-forwarding, and client access.
Keep the Business Online with WAN Resiliency
This feature enables continuous connectivity during network disruptions using multiple ISP connections.
The secure gateway detects issues (link degradation or failure) and reroutes traffic to the best available ISP uplink, reducing downtime and service interruptions.
Multi-Gigabit and PoE Ports (SG2505P)
Great for small and medium businesses with ISP throughputs faster than a gigabit, utilizes the 2.5 G ports on the SG2505P for maximum throughput.
A PoE budget of 60W makes the SG2505P a smart choice for deploying a compact and easy-to-manage network by powering Instant On access points without an additional switch.
Tech Specs
| Depth | 6.5" |
|---|---|
| Width | 7.5" |
| Height | 1.7" |
| Brand Name | Aruba |
| Form Factor | Tabletop |
| Manufacturer | Hewlett Packard Enterprise |
| Product Line | Instant On |
| Product Name | Networking Instant On Secure Gateway |
| Product Type | Router |
| Product Model | SG1004 |
| Product Family | Instant On |
| Network Technology | 10/100/1000Base-T |
Show all 20 specsShow fewer
| Ethernet Technology | Gigabit Ethernet |
|---|---|
| Number of WAN Ports | 1 |
| Weight (Approximate) | 2.20 lb |
| Total Number of Ports | 4 |
| Manufacturer Part Number | S0G33A#ABA |
| Certifications & Standards | <ul><li>UL 62368-1, 3rd Ed.</li><li>FCC 47 CFR part 15B: 2021, Class B</li><li>IEC 62368-1:2014, 2nd Ed. </li><li>IEC 62368-1: 2018, 3rd Ed.</li><li>VCCI-CISPR 32, Class B</li><li>CISPR 32: 2016, Class B</li><li>AS/NZS CISPR 32: 2015, Class B</li><li> CNS 15936: 2020, Class B</li><li>CISPER 35: 2016</li><li>EN 55035:2017/A11:2020</li><li>IEC 61000-4-2</li><li>IEC 61000-4-3</li><li>IEC 61000-4-4</li><li>IEC 61000-4-5</li><li>IEC 61000-4-6</li><li>IEC 61000-4-8</li><li>IEC 61000-4-11</li><li>IEC/EN 61000-3-2</li><li>IEC/EN 61000-3-3</li><li>IEC/EN 63000:2018</li><li>KS C 9832</li></ul> |
| Manufacturer Website Address | http://www.hpe.com |
| Number of Network (RJ-45) Ports | 3 |
