STARTECH.COM

HORIZONTAL RACK MOUNT C13 PDU 8 PORT SERVER RACK POWER STRIP

SKU: 8Q7824VPN: PDU08C13H

HORIZONTAL RACK MOUNT C13 PDU 8 PORT SERVER RACK POWER STRIP

Key Features

  • 8 POWERFUL NEMA C13 OUTLETS: Rack mount PDU provides up to 16A/120V (1920VA) or 20A/240V (4800 VA) for servers & equipment; 1U rack space for easy accessibility; 10ft/3m C19 to NEMA5-20p cord incl.
  • 3600 JOULE CIRCUT PROTECTION: Built-in resettable circuit breaker that acts as a surge protector or shields from unintentional overloads in data center; Safety listed for performance and peace of mind
  • CONFIGURABLE EIA-310D COMPLIANT DESIGN: Installable in standard 19in. 2 or 4 post rack using incl. cage nuts/screws; C20 power cord allows any local plug config for 120 or 240 V single phase in/out

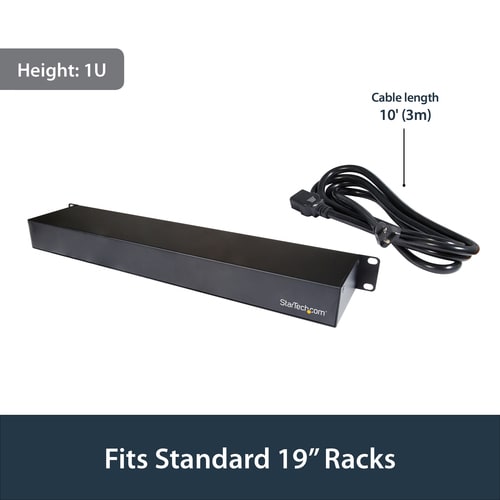

  • SPECS: 1U 19in. Horizontal PDU

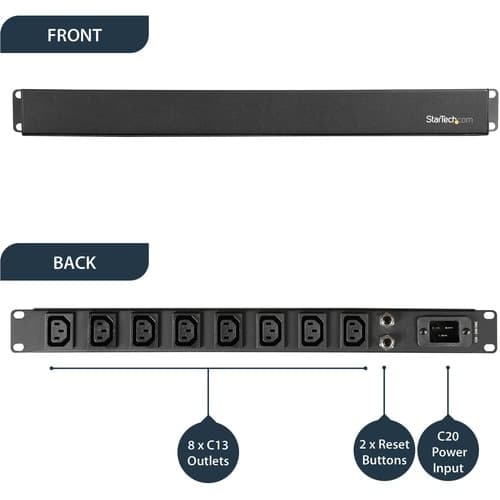

  • 8x IEC C13 Pwr out
  • C20 Pwr input (1 phase)
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

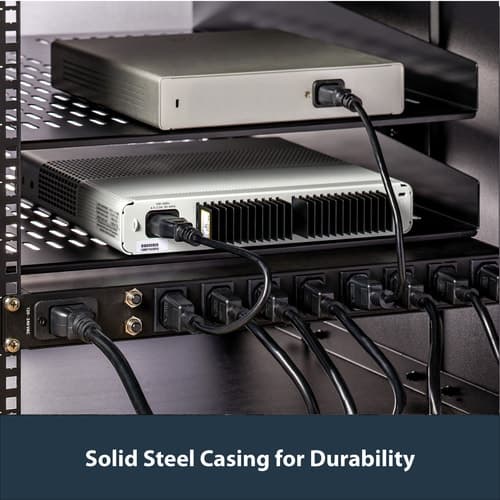

This rack-mount PDU features eight C13 outlets and you can install it into 1U of rack space to power your rack-mount equipment. The PDU provides 16 amps of power to be shared across the eight outlets. Sleek, professional installation Unlike some rack power solutions that mount awkwardly, if at all, this rack-mount PDU is EIA-310D compliant, which ensures a secure and tidy installation into any 19" rack with 1U of available space. Mounting screws and cage nuts are also included to ensure you have everything you need, saving you time and hassle. Flexible power solution For maximum compatibility with your devices, this PDU features C13 outlets which are ideal for a wide range of globally distributed devices including I.T equipment, office equipment, measuring instruments and medical devices. Plus, with a total of eight C13 outlets, the PDU can distribute power to your entire rack. Protects your equipment In the event of random energy surges that can occur during power outages or other anomalies, this PDU prevents costly damages to your equipment with a built-in dual circuit breaker, ensuring your equipment is protected. The housing of this PDU is also constructed of rugged steel to provide maximum durability in any environment. The PDU08C13H is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

HORIZONTAL RACK MOUNT C13 PDU 8 PORT SERVER RACK POWER STRIP specifications
PhaseSingle Phase
Width18.9"
Height1.7"
Length3.9"
Brand NameStarTech.com
Mount TypeRack-mountable
Rack Height1U
ManufacturerStarTech.com
Product Name8-Outlet PDU
Product TypePDU
Input Current20 A
Input Voltage230 V AC
Show all 36 specs
Output Voltage240 V AC
WEEE Statementhttps://media.startech.com/cms/pdfs/pdu08c13h_weee.pdf
Protection TypeSurge Protection
Receptacle TypeIEC 60320 C13

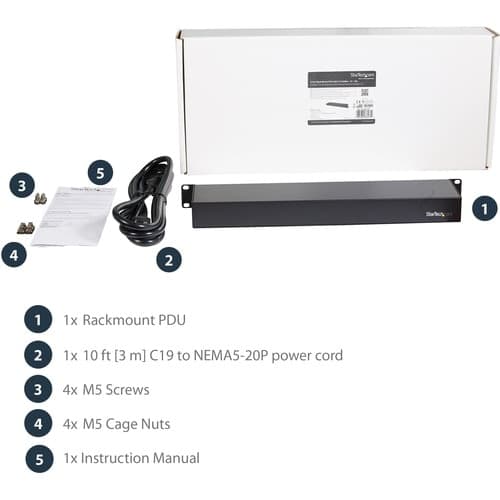

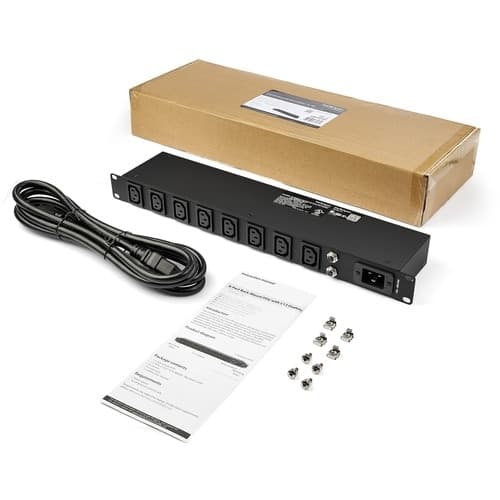

Package Contents<ul> <li>8-Outlet PDU</li> <li>1 x 10 ft [3 m] C19 to NEMA5x20p Power Cord</li> <li>4 x M5 Screws</li> <li>4 x M5 Cage Muts</li> <li>1 x Instruction Manual</li> </ul>
Country of OriginChina
Packaged Quantity1 Each
Power Rating (VA)1920 VA
Receptacle Detail8 x IEC 60320 C13
REACH free of SVHCYes
Input Voltage Range110 V AC - 240 V AC
Plug/Connector TypeIEC 60320 C20
Mounting OrientationHorizontal
Output Voltage Range110 V AC - 240 V AC
Weight (Approximate)4.90 lb
Plug/Connector Detail1 x IEC 60320 C20
REACH Declaration URLhttps://media.startech.com/cms/pdfs/pdu08c13h_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/pdu08c13h_rohs.pdf
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberPDU08C13H
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
End of Life Manual AvailabilityYes
