HMXTX HDMI USB 2.0 AUDIO ZERO U HMXTX HDMI USB 2.0 AUDIO ZERO U

SKU: 9AA042VPN: HMX6150T-HDMI

HMXTX HDMI USB 2.0 AUDIO ZERO U HMXTX HDMI USB 2.0 AUDIO ZERO U

Key Features

  • Crisp and clear picture quality, audio, and USB 2.0 high speed with True Emulation support.
  • Supports resolutions to a maximum of 2560x1600 @60Hz through either DP or HDMI interfaces.
  • USB power means there is no need to provision for an external power supply unit (PSU).
  • Improved resolution and USB support offers DP & HDMI customers greater flexibility.
  • The HMX6150T-HDMI is the first Zero-U HMX transmitter.
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

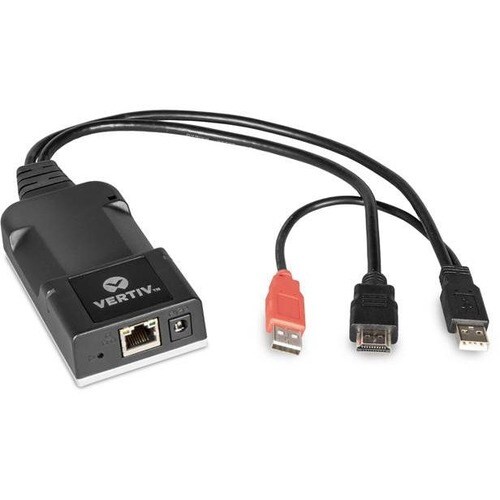

The Vertiv Avocent HMX6150T-HDMI Transmitter is a high performance KVM extender that provides access to system computers via a CATx network, allowing users the ability to access and share computing resources. The system enables you to locate critical computing hardware in a secure, temperature-controlled environment, away from the user workstation to maintain component integrity. This small form factor transmitter (0U rack space) is ideal for demanding applications such as broadcast, control rooms, and collaborative environments. Its IP-based KVM technology removes any distance limitations, allowing the extension of computers away from the user environment. It provides access to HDMI video resolution of up to 2560 x 1600 @60Hz. The HMX6150T extends the current HMX offering through the increased video support from HD to 2K and adding USB 2.0 high speed with True Emulation support.

Tech Specs

HMXTX HDMI USB 2.0 AUDIO ZERO U HMXTX HDMI USB 2.0 AUDIO ZERO U specifications
DVINo
USBYes
VGANo
HDMIYes
HeadphoneNo
PS/2 PortNo
Brand NameVertiv AVOCENT
MicrophoneNo
Device TypeKVM Extender
DisplayPortYes
Form FactorRack-mountable
Rack Height0U
Show all 52 specs
Color FamilyBlack
Graphic Mode2K
ManufacturerVertiv
Product LineHMX
Product NameHMX 6150T | KVM Transmitter | DisplayPort (HMX6150T-DP)
Product TypeKVM Extender Transmitter
Input Voltage5 V DC
Product ColorBlack
Product ModelHMX 6150T
TAA CompliantYes
Host InterfaceHDMI
KVM TechnologyDigital
Product FamilyHMX 6000
Product Series6000
Network (RJ-45)Yes
Country of OriginUnited Kingdom
Packaged Quantity1
Power Consumption3 W
Transmitter Depth1.10"
Transmitter Width2.17"
Number of ST Ports0
Platform SupportedPC
Transmitter Height1"
Digital Audio/VideoYes
Number of DVI Ports0
Number of USB Ports2
Number of VGA Ports0
Number of HDMI Ports1
Number of PS/2 Ports0
Proprietary InterfaceNo
Connectivity TechnologyWired
Environmentally FriendlyYes
Manufacturer Part NumberHMX6150T-HDMI
Maximum Video Resolution2560 x 1600
Certifications & Standards<ul> <li>CE</li> <li>UL</li> <li>FCC</li> </ul>
Maximum Operating Distance300 ft
Manufacturer Website Addresshttp://www.vertiv.com/
Number of Computers Supported1
Number of Network (RJ-45) Ports1
Transmitter Weight (Approximate)6.40 oz
