HARMAN PRO

HIGH FREQUENCY SECTION FOR 3722 SYSTEM

SKU: 7ZF235VPN: 3722-HF

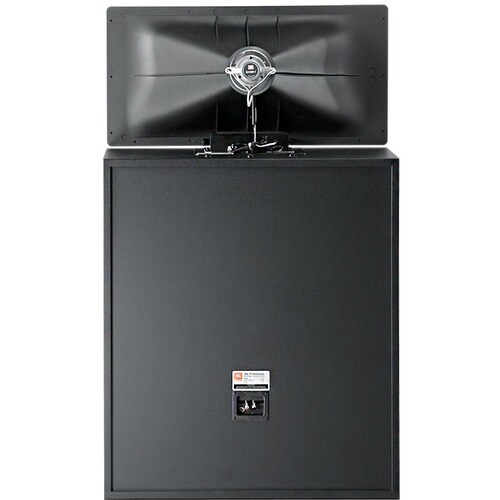

HIGH FREQUENCY SECTION FOR 3722 SYSTEM

Key Features

  • Two-way ScreenArray® design for maximum output, optimal coverage and minimum distortion
  • Available for bi-amplified operation (model 3722) or fully passive operation (model 3722N)
  • SSC™ Screen Spreading Compensation
  • Molded Optimized Aperture Waveguide technology for ultra-low distortion and extremely uniform frequency response
  • Low frequency section features dual 15" transducers with ribbon wire voice coils for low distortion and high efficiency
  • Flat front waveguide design for easy baffle wall installation
  • Shallow profile for minimum behind-screen depth requirements
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

The 3722N provides smooth and accurate reproduction of cinema soundtracks in a compact and very cost effective system

Features

  • 3722 available as a Passive model with network (3722N)
    or BiAmp Ready 3722
  • Power Capacity: 400 W continuous IEC pink noise
  • Sophisticated crossover network
  • High quality in a compact and very cost effective system
  • Smooth response, Controlled coverage

Tech Specs

HIGH FREQUENCY SECTION FOR 3722 SYSTEM specifications
Depth15"
Width30"
Height15"
FeaturesBi-amplification
Brand NameJBL Professional
ManufacturerHarman International Industries, Inc
Product Name3722/3722N Two-Way ScreenArray Cinema Loudspeaker System
Product TypeSpeaker System
Product Model3722-HF
RMS Output Power400 W
Weight (Approximate)16 lb
Manufacturer Part Number3722-HF
Show all 15 specs
Maximum Frequency Response18 kHz
Minimum Frequency Response30 Hz
Manufacturer Website Addresshttp://www.harman.com
