HDMI OVER IP EXTENDER WITH IR TRANSMITTER

SKU: 02BM31VPN: CE-H23B11-S2

In Stock

Request pricing

Pricing for this item is configured per-order. Add it to your inquiry below and we'll send a tailored quote.

Key Features

Video Extender Transmitter provides efficient and feasible audio/video transmission, decoding, and extending
480p supported video mode for maximum viewing feasibility and adaptability
1920 x 1080 maximum video resolution for a spectacular, sharp display with added reliability
HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
HDMI out enables you to transfer data from your devices to video extender transmitter with added efficiency
Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
The CE-H23B11-S2 video extender transmitter provides plenty of freedom with wired connectivity
1 input devices supported to better accommodate your specific requirements
393.70 ft maximum operating distance to allow efficient coverage and maximum usability
Full HD graphics mode for an immersive and sharp viewing experience

Adding to inquiry lets you bundle multiple products into a single quote request.

Features

Receives HDMI signals with stereo audio and transmitts it to a remote display over UTP CAT5e/6 cabling up to 120 meters, requires HDMI Over IP Extender with IR - Decoder (RX) (part # CE-H23C11-S2) sold separately

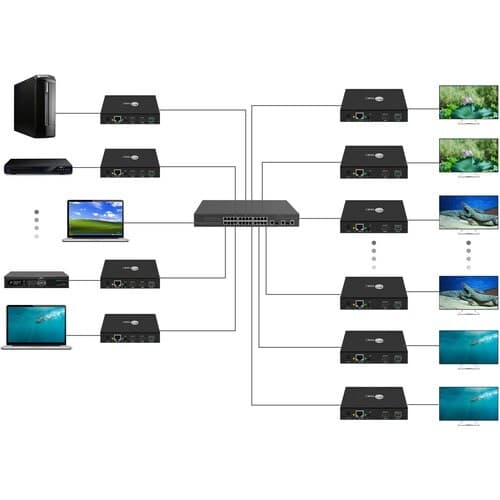

Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional encoder (TX)units (part# CE-H23B11-S2) and decoder (RX)units (part# CE-H23C11-S2) sold separately
Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear imagesSupports IR pass back function to control the source device from RX location

Supports computer control software to select and switch between source devices (Matrix only)

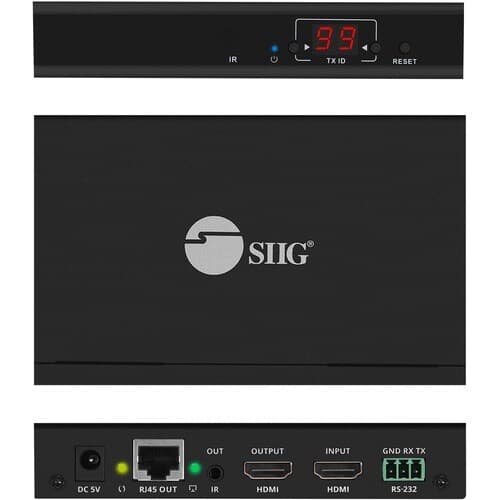

HDMI output on the transmitter allows you to monitor the HDMI signal at the source location

RS-232 pass-through connection to control RS-232 enabled devices at either direction

HDMI OVER IP EXTENDER WITH IR TRANSMITTER specifications
HDMI In	Yes
HDMI Out	Yes
Brand Name	SIIG
Color Family	Black
Manufacturer	SIIG, Inc
Product Name	HDMI Over IP Extender with IR - Transmitter
Product Type	Video Extender Transmitter
Product Color	Black
Product Model	CE-H23B11-S2
Graphics Modes	Full HD
Network (RJ-45)	Yes

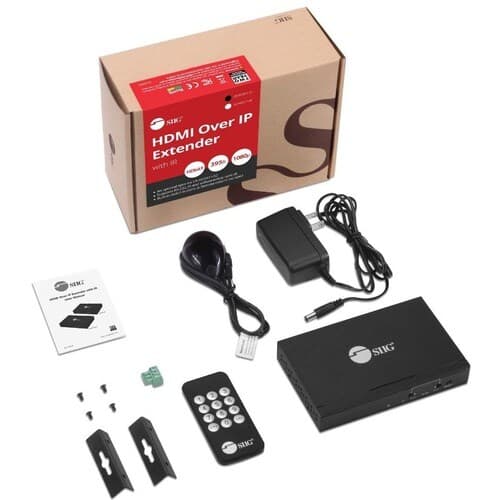

Package Contents	<ul> <li>HDMI Over IP Extender with IR - Transmitter</li> <li>Power Adapter</li> <li>IR Blaster Extension Cable</li> <li>2 x Mounting Ears </li> <li>4 x Screw Kit</li> <li>Remote Control</li> <li>3 Pin Phoenix Connector</li> <li>User Reference Guide</li> </ul>

Show all 32 specs

Application/Usage	Office
Country of Origin	China
Transmitter Depth	3.27"
Transmitter Width	5.50"
Transmitter Height	0.94"
Media Type Supported	Twisted Pair
Number of HDMI Inputs	1
Supported Video Modes	720p
Number of HDMI Outputs	1
Connectivity Technology	Wired
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	CE-H23B11-S2
Maximum Video Resolution	1920 x 1080
Maximum Operating Distance	393.70 ft
Twisted Pair Cable Standard	Category 6
Manufacturer Website Address	http://www.siig.com
Number of Network (RJ-45) Ports	1
Transmitter Weight (Approximate)	9.60 oz
Number of Input Devices Supported	1
