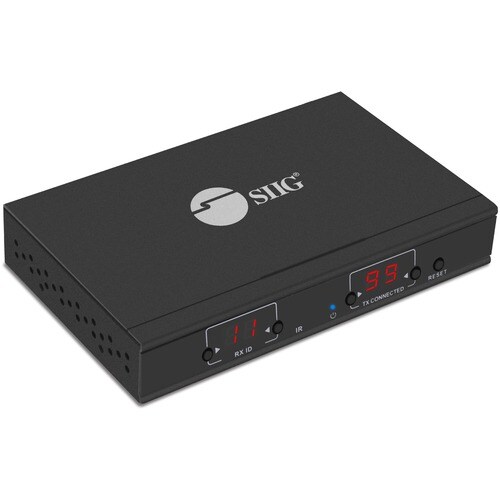

HDMI OVER IP EXTENDER WITH IR RECEIVER

SKU: 02BM32VPN: CE-H23C11-S2

In Stock

Request pricing

Pricing for this item is configured per-order. Add it to your inquiry below and we'll send a tailored quote.

Key Features

Video Extender Receiver is all you need for dependable and productive audio/video transmission
480p supported video mode for pleasurable viewing and dependable usage
1920 x 1080 maximum video resolution for a spectacular, sharp display with added reliability
HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
The CE-H23C11-S2 video extender receiver provides plenty of freedom with wired connectivity
1 output devices supported for maximum feasibility and usage convenience
393.70 ft maximum operating distance for feasible operation and optimal coverage
Full HD graphics mode for an immersive and sharp viewing experience
Video Extender Receiver efficiently decodes audio video signals from the input device and sends them to the receiver to enable the display on your office projector for convenient conference setup

Adding to inquiry lets you bundle multiple products into a single quote request.

Features

Receives HDMI signals with stereo audio over UTP CAT5e/6 cabling up to 120 meters away, requires HDMI Over IP Extender with IR - Encoder (TX)(part # CE-H23B11-S2) sold separately
Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional encoder (TX)units (part# CE-H23B11-S2) and decoder (RX)units (part# CE-H23C11-S2) sold separately
Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear imagesSupports IR pass back function to control the source device from RX location
Supports computer control software to select and switch between source devices (Matrix only)
Supports HDbit-T protocol with H.264 compression over IP

HDMI output on the transmitter allows you to monitor the HDMI signal at the source location

RS-232 pass-through connection to control RS-232 enabled devices at either direction

HDMI OVER IP EXTENDER WITH IR RECEIVER specifications
HDMI Out	Yes
Brand Name	SIIG
Manufacturer	SIIG, Inc
Product Name	HDMI Over IP Extender with IR - Receiver
Product Type	Video Extender Receiver
Product Color	Black
Product Model	CE-H23C11-S2
Graphics Modes	Full HD
Receiver Depth	3.27"
Receiver Width	5.50"
Network (RJ-45)	Yes
Receiver Height	0.94"

Show all 29 specs

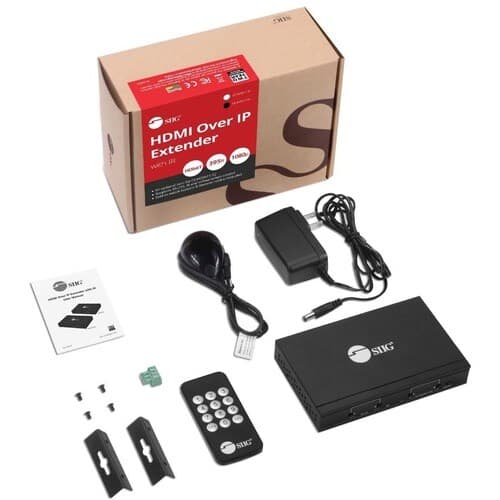

Package Contents	<ul> <li>HDMI Over IP Extender With IR - Receiver</li> <li>Power Adapter</li> <li>IR Receiver Extension Cable</li> <li>2 x Mounting Ears</li> <li>4 x Screw Kit</li> <li>Remote Control</li> <li>3 Pin Phoenix Connector</li> <li>User Reference Guide</li> </ul>
Application/Usage	Shopping Center
Country of Origin	China
Media Type Supported	Twisted Pair
Supported Video Modes	720p
Number of HDMI Outputs	1
Connectivity Technology	Wired
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	CE-H23C11-S2
Maximum Video Resolution	1920 x 1080
Maximum Operating Distance	393.70 ft
Twisted Pair Cable Standard	Category 6
Manufacturer Website Address	http://www.siig.com
Receiver Weight (Approximate)	9.60 oz
Number of Network (RJ-45) Ports	1
Number of Output Devices Supported	1
