HDMI OVER IP EXTENDER WITH IR - KIT

SKU: 02BM30VPN: CE-H23A11-S2

In Stock

$239.99$178.83

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

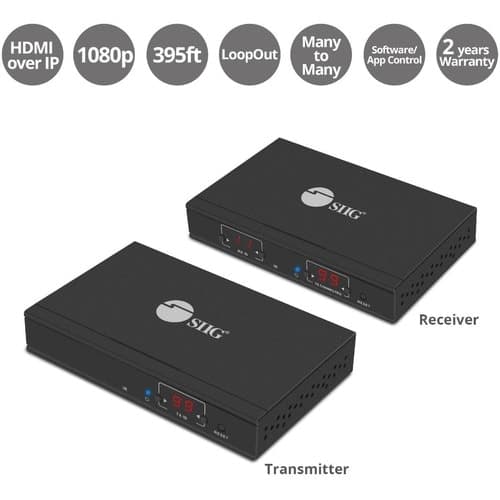

Video Extender Transmitter/Receiver is all you need for dependable and productive audio/video transmission
480p supported video mode for maximum viewing feasibility and adaptability
1920 x 1080 maximum video resolution for a spectacular, sharp display with added reliability
HDMI in allows convenient transfer of content and data to video extender transmitter/receiver to ensure maximum dependability
HDMI out enables you to transfer data from your devices to video extender transmitter/receiver with added efficiency
Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
The CE-H23A11-S2 video extender transmitter/receiver provides plenty of freedom with wired connectivity
1 input devices supported for maximum productive usability
1 output devices supported for maximum feasibility and usage convenience
393.70 ft maximum operating distance for feasible operation and optimal coverage

Adding to inquiry lets you bundle multiple products into a single quote request.

Features

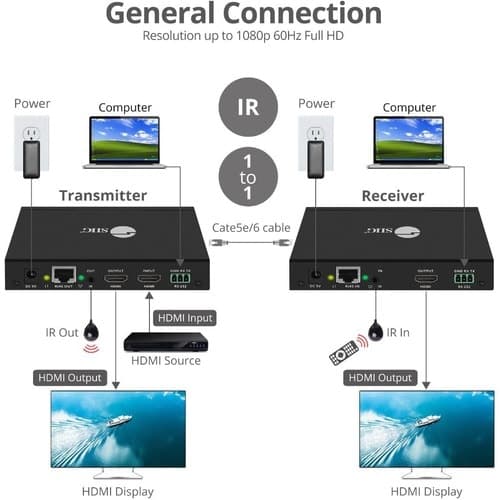

Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters

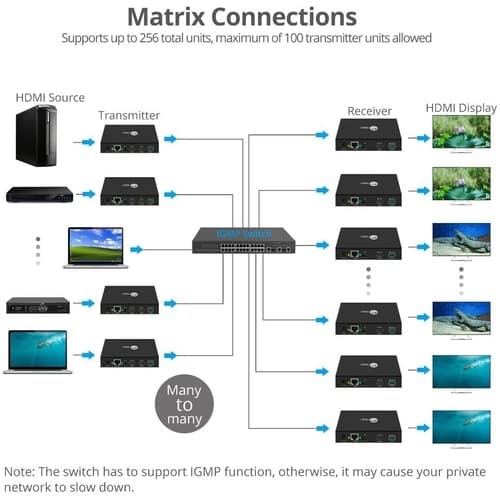

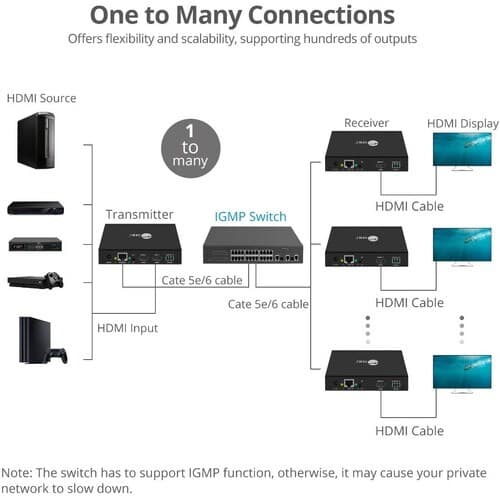

Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units (part# CE-H23B11-S2) and receiver units (part# CE-H23C11-S2) sold separately
Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images

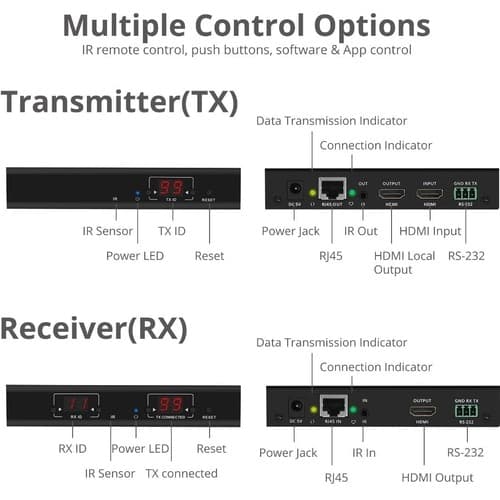

Supports IR pass back function to control the source device from RX location
Supports computer control software to select and switch between source devices (Matrix only)
Supports HDbit-T protocol with H.264 compression over IP
HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
RS-232 pass-through connection to control RS-232 enabled devices at either direction

HDMI OVER IP EXTENDER WITH IR - KIT specifications
HDMI In	Yes
HDMI Out	Yes
Brand Name	SIIG
Manufacturer	SIIG, Inc
Product Name	HDMI Over IP Extender with IR - Kit
Product Type	Video Extender Transmitter/Receiver
Product Color	Black
Product Model	CE-H23A11-S2
Graphics Modes	Full HD

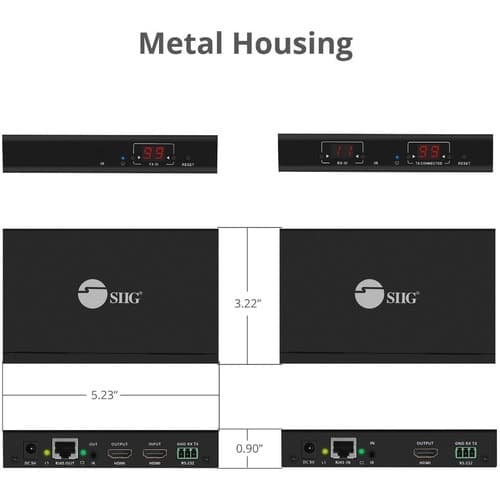

Receiver Depth	5.50"
Receiver Width	3.27"
Network (RJ-45)	Yes

Show all 38 specs

Receiver Height	0.94"

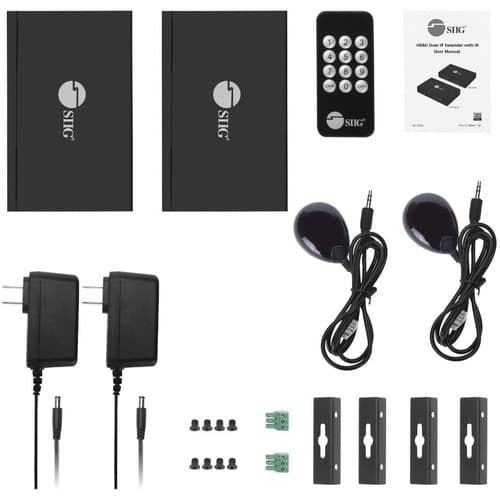

Package Contents	<ul> <li>HDMI Over IP Extender with IR - Kit</li> <li>2 x Power Adapters</li> <li>IR Blaster Extension Cable and IR Receiver Extension Cable</li> <li>4 x Mounting Ears </li> <li>8 x Screw Kit</li> <li>Remote Control</li> <li>2 x 3 Pin Phoenix Connectors</li> <li>User Reference Guide</li> </ul>
Application/Usage	Educational Facilities
Country of Origin	China
Remote (IR) Input	1
Transmitter Depth	5.50"
Transmitter Width	3.27"
Remote (IR) Output	1
Transmitter Height	0.94"
Media Type Supported	Twisted Pair
Number of HDMI Inputs	1
Supported Video Modes	480p
Number of HDMI Outputs	2
Connectivity Technology	Wired
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	CE-H23A11-S2
Maximum Video Resolution	1920 x 1080
Maximum Operating Distance	393.70 ft
Twisted Pair Cable Standard	Category 6
Manufacturer Website Address	http://www.siig.com
Receiver Weight (Approximate)	9.60 oz
Number of Network (RJ-45) Ports	2
Transmitter Weight (Approximate)	9.60 oz
Number of Input Devices Supported	1
Number of Output Devices Supported	1
