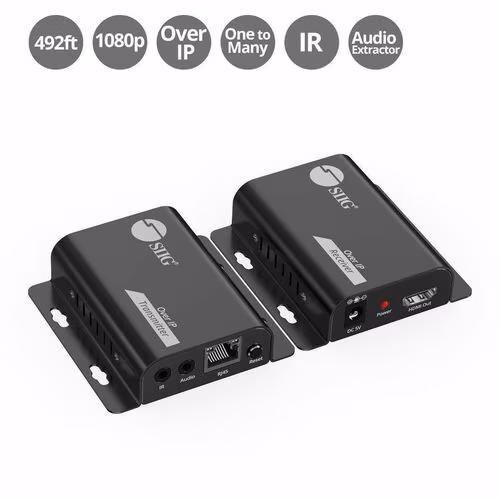

HDMI OVER IP EXTENDER WITH IR - HDMI OVER IP EXTENDER WITH IR - 150

SKU: ZS1645VPN: CE-H3IP01-S1

HDMI OVER IP EXTENDER WITH IR - HDMI OVER IP EXTENDER WITH IR - 150

Key Features

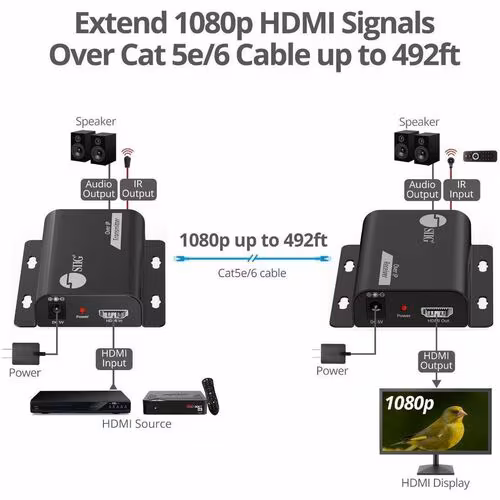

  • Long-Distance HDMI Transmission - Up to 492ft (150m) Extend 1080p HDMI video and audio signals up to 492 feet over standard Cat5e/6 network cables with exceptional clarity and stability
  • Stunning Full HD 1080p @ 60Hz Delivers crisp, vivid visuals with smooth frame rates - perfect for presentations, signage, and multimedia playback

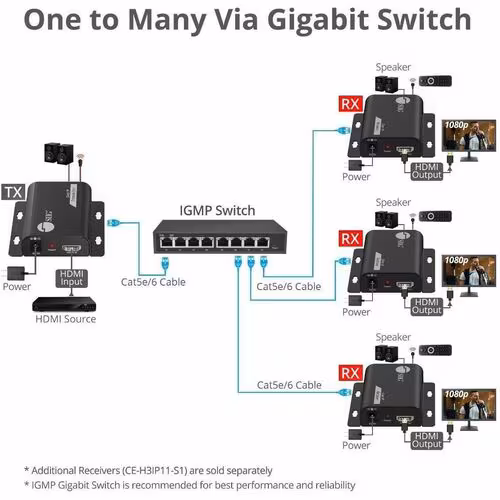

  • Scalable, Flexible One-to-One or One-to-Many Setups Easily expand your video distribution using standard unmanaged Gigabit network switches to create One-to-Many Configuration. One transmitter can connect to up to 253 receivers, the additional receiver unit (part# CE-H3IP11-S1) is sold separately, ensuring a flexible and future-ready solution

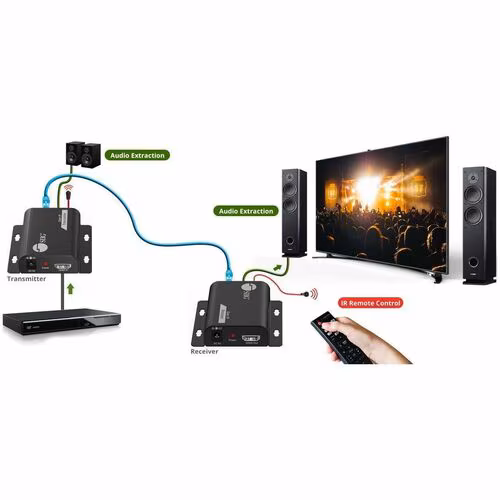

  • Stereo Audio + Audio Extraction Support Supports stereo audio through HDMI and features 3.5mm output jacks on both transmitter and receiver for PCM 2CH audio extraction
  • IR Remote Control Extension (20-60KHz) Easily control your source device from the receiver location with integrated IR pass-through support

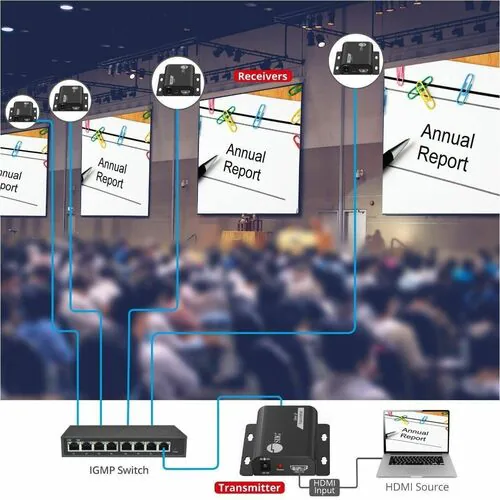

  • Scalable Network Protocol (TCP/IP) Designed for flexible IP-based installations. Connect one transmitter to up to 253 receivers across your network

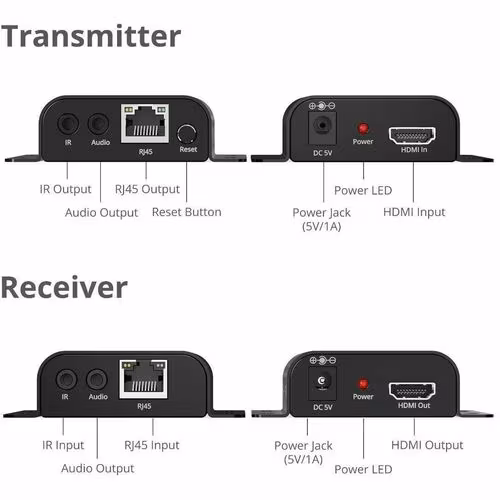

  • Quick Reset Buttons Fast troubleshooting with dedicated reset buttons on transmitter - no need to unplug power
  • Secure & Flexible Installation The plug-and-play design requires no drivers or software. Durable and mountable metal housing with ESD protection ensures reliable long-term performance
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

HDMI Over IP Extender with IR- 492ft (150m), Full HD 1080p Transmission with IR Control, Audio Extraction, and One-to-Many Support; A high-performance HDMI Over IP Extender designed for long-distance signal transmission up to 492ft (150m) via standard Cat5e/6 network cables. Ideal for digital signage, education, broadcasting, and commercial AV systems, the additional receiver unit (part# CE-H3IP11-S1) is sold separately

Tech Specs

HDMI OVER IP EXTENDER WITH IR - HDMI OVER IP EXTENDER WITH IR - 150 specifications
HDMI InYes
HDMI OutYes
Brand NameSIIG
Color FamilyBlack
ManufacturerSIIG, Inc
Product NameHDMI Over IP Extender with IR - 492ft (150m), 1080p @ 60Hz, IR Control, Audio Extraction, One-to-Many Support
Product TypeVideo Extender Transmitter/Receiver
Product ColorBlack
Graphics ModesFull HD
Receiver Depth3.04"
Receiver Width2.96"
Network (RJ-45)Yes
Show all 38 specs
Receiver Height0.87"

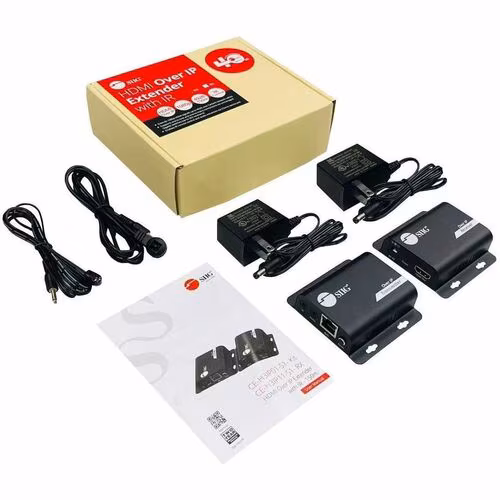

Package Contents<ul><li>HDMI Over IP Extender with IR - 150m</li><li>2x Power adapter 5V/1A</li><li>1x IR emitter cable</li><li>1x IR receiver cable</li><li>User Manual</li></ul>
Application/UsageRetail
Country of OriginChina
Packaged Quantity1
Remote (IR) Input1
Transmitter Depth3.04"
Transmitter Width2.96"
Remote (IR) Output1
Transmitter Height0.87"
Data Link ProtocolsTCP/IP
Number of HDMI Inputs1
Supported Video Modes720p
Number of HDMI Outputs1
Connectivity TechnologyWired
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Manufacturer Part NumberCE-H3IP01-S1
Maximum Video Resolution1920 x 1080
Maximum Operating Distance492.13 ft
Twisted Pair Cable StandardCategory 6
Manufacturer Website Addresshttp://www.siig.com
Receiver Weight (Approximate)4.16 oz
Number of Network (RJ-45) Ports2
Transmitter Weight (Approximate)4.16 oz
Number of Input Devices Supported1
Number of Output Devices Supported1
