HDMI KVM EXTENDER OVER CAT HDMI USB KVM CONSOLE EXTENDER

SKU: TW5326VPN: SV565UTPHDU

In Stock

$1,051.64$1,013.02

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Key Features

Uncompressed 1080p and 1920x1200 HD video extension
Extend up to 330 ft (100m) over a single Cat5e / Cat6 cable
HDCP, CEC and Lip Sync pass-through support
OS independent - no software or drivers required
3 USB 2.0 ports with transfer rates up to 30Mbps
Supports connection to a single computer or cascading to an existing KVM switch
Supports most combo keyboard and mouse sets (including Wireless)

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

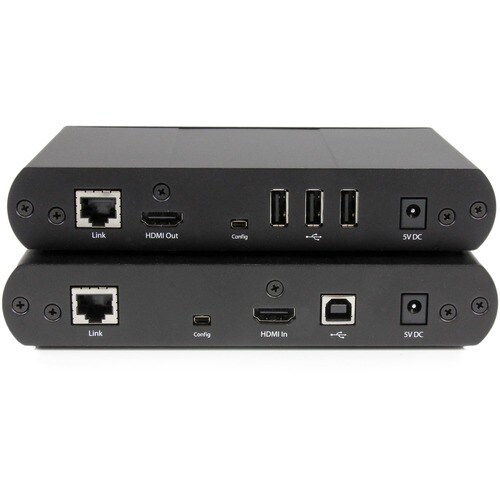

The SV565UTPHDU USB HDMI® KVM Extender lets you control a PC from up to 330ft (100m) away over a single Cat 5e or Cat 6 cable connection, with uncompressed 1080p HDMI video and access to up to 3 connected USB devices. A flexible solution for powering large high-definition displays remotely, this HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance. Additional features such as 3Dsupport, HDCP, CEC and Lip Sync pass-through enable you to display your content exactly as you need it on the remote display. This versatile KVM console extender can be connected to a single system, or cascaded to an existing KVM switch for remote operation of multiple systems, and features 3 USB 2.0 ports on the remote end, allowing you to connect a keyboard, mouse, printer or other peripherals. Since the extender uses Cat 5e (or better) network cable, you have the option to use existing infrastructure wiring, which helps avoid the hassle and expense of running bulky video cables. Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

HDMI KVM EXTENDER OVER CAT HDMI USB KVM CONSOLE EXTENDER specifications
USB	Yes
HDMI	Yes
Brand Name	StarTech.com
Color Family	Black
Graphic Mode	WUXGA
Manufacturer	StarTech.com
Product Name	KVM Console/Extender
Product Type	KVM Console/Extender
Input Voltage	240 V AC
Product Color	Black
Receiver Depth	6.90"
Receiver Width	4.40"

Show all 36 specs

Network (RJ-45)	Yes
Receiver Height	1.20"
Package Contents	<ul> <li>1 x Local Transmitter Unit</li> <li>1 x Remote Receiver Unit</li> <li>4 x Mounting Brackets</li> <li>1 x HDMI Cable</li> <li>1 x USB Cable</li> <li>2 x Universal Power Adapters (NA, EU ,UK)</li> <li>1 x Quick-start guide</li> </ul>
Country of Origin	Canada
Packaged Quantity	1 Kit
Power Consumption	15 W
Transmitter Depth	6.90"
Transmitter Width	4.40"
Transmitter Height	1.20"
Input Voltage Range	100V AC to 240V AC
Number of USB Ports	6
Number of HDMI Ports	2
Connectivity Technology	Wired
Environmentally Friendly	Yes
Manufacturer Part Number	SV565UTPHDU
Maximum Video Resolution	1920 x 1200
Certifications & Standards	<ul> <li>CE</li> <li>FCC</li> <li>UL</li> </ul>
Maximum Operating Distance	330 ft
Manufacturer Website Address	http://www.startech.com
Number of Computers Supported	1
Receiver Weight (Approximate)	1.87 lb
Number of Local Users Supported	1
Number of Network (RJ-45) Ports	2
Transmitter Weight (Approximate)	1.87 lb
