SIIG

HDMI 4K30HZ HDBITT OVER IP EXTENDER 120M

SKU: 06VD70VPN: CE-H25D11-S2

HDMI 4K30HZ HDBITT OVER IP EXTENDER 120M

Key Features

  • With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft. Connect your HDMI source device (PC, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver
  • Supports up to 4K @30Hz and 1080p. HDCP 1.4 compliant. Supports 2-channel Stereo Audio. Auto adjustment for different cable lengths to produce the best video/audio experience. We recommend using high performance pure copper Cat6 cables to ensure reliable performance

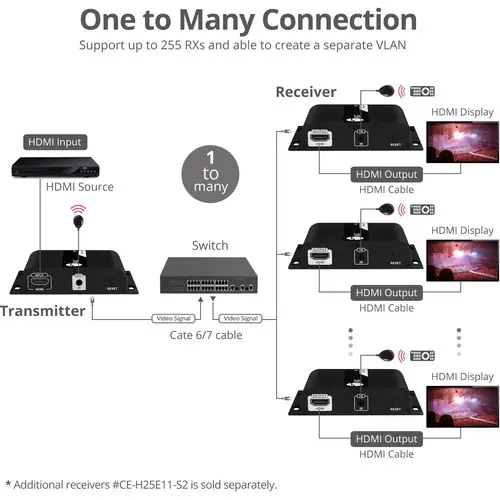

  • Direct 1-to-1 connection, 1-to-many through unmanaged Gigabit network switches, or many-to-many via VLAN through a Smart Ethernet Switch. With HDBitT transport protocol, you can connect up to 255 Receivers* per Transmitter to not only extend but split HDMI signals to multiple displays. *Additional Receivers (CE-H25E11-S2) are sold separately
  • One-directional IR control from RX side to TX side. Allows the source device to recognize remote commands from afar. You can control the HDMI source device at a remote location with the included IR cables that forward commands over a Cat6 cable
  • High quality surface mountable metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

SIIG HDMI 4K30Hz HDbitT over IP Extender - 120m - Extends HDMI audio/video signals up to 120m over cost effective Cat 6/7 cable, while maintaining signal strength and superior audio/video quality, 4K30Hz, HDCP 1.4, One to Many, Many-to-Many, IR Control, work for RX (CE-H25E11-S2)

Tech Specs

HDMI 4K30HZ HDBITT OVER IP EXTENDER 120M specifications
HDMI InYes
HDMI OutYes
Frequency50 Hz
Brand NameSIIG
Form FactorSurface-mountable
ManufacturerSIIG, Inc
Product NameHDMI 4K30Hz HDbitT over IP Extender - 120m
Product TypeVideo Extender Transmitter/Receiver
Product ColorBlack
Graphics Modes4K
Receiver Depth3.70"
Receiver Width4.22"
Show all 34 specs
Network (RJ-45)Yes
Receiver Height0.93"
Package Contents<ul> <li>1 x Transmitter</li> <li>1 x Receiver</li> <li>2 x Power Adapter</li> <li>IR Blaster extension cable & IR Receiver Extension Cable</li> <li>Quick Start Guide</li> </ul>
Country of OriginChina
Transmitter Depth3.70"
Transmitter Width4.22"
Transmitter Height0.93"
Media Type SupportedTwisted Pair
Number of HDMI Inputs1
Number of HDMI Outputs1
Connectivity TechnologyWired
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Environmentally FriendlyYes
Manufacturer Part NumberCE-H25D11-S2
Maximum Operating Distance393.70 ft
Twisted Pair Cable StandardCategory 7
Manufacturer Website Addresshttp://www.siig.com
Receiver Weight (Approximate)5.92 oz
Number of Network (RJ-45) Ports2
Transmitter Weight (Approximate)5.92 oz
Number of Input Devices Supported1
Number of Output Devices Supported1
