HDMI 2.0 4K60HZ OVER IP

SKU: 8JX781VPN: CE-H25B11-S1

In Stock

Request pricing

Pricing for this item is configured per-order. Add it to your inquiry below and we'll send a tailored quote.

Key Features

Video Extender Transmitter provides efficient and feasible audio/video transmission, decoding, and extending
HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
Twisted pair media type is very easy to connect and can carry both analog and digital data at the same time for maximum connection efficiency
1 input devices supported for maximum productive usability
393.70 ft maximum operating distance to allow efficient coverage and maximum usability
4K graphics mode for an immersive and sharp viewing experience

Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Receives 4K HDMI signals from a source device and extends the signal through economical Cat5e/6/7 cabling to an HDMI display device up to 120 meters using advanced HDBitT technology, use with HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Decoder (RX)(part # CE-H25C11-S1) sold separately

Transmits 4K HDMI signals with stereo audio to a remote display over Cat5e/6/7 cabling up to 120 meters, requires HDMI 2.0 4K60Hz Over IP Extender/Matrix with IR - Decoder (RX)(part # CE-H25C11-S1) sold separately.

Note: A good quality Cat5e/6/7 cable is essential in delivering quality content. Cat6/6a/7 is recommended over Cat5e

Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional decoder (RX)units (part# CE-H25C11-S1) sold separately, and Matrix Kits (part # CE-H25A11-S1) sold separately.

Note: Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability

Delivers up to 4K@60Hz video resolution to deliver stunning and crystal clear images
IR pass back function to control the source device from RX location
Computer control software to select and switch between source devices (Matrix only)
HDbitT protocol with H.264 compression over IP delivers superior performance and reliability

Tech Specs

HDMI 2.0 4K60HZ OVER IP specifications
HDMI In	Yes
Brand Name	SIIG
Manufacturer	SIIG, Inc
Product Name	HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Transmitter
Product Type	Video Extender Transmitter
Product Color	Black
Graphics Modes	4K
Network (RJ-45)	Yes

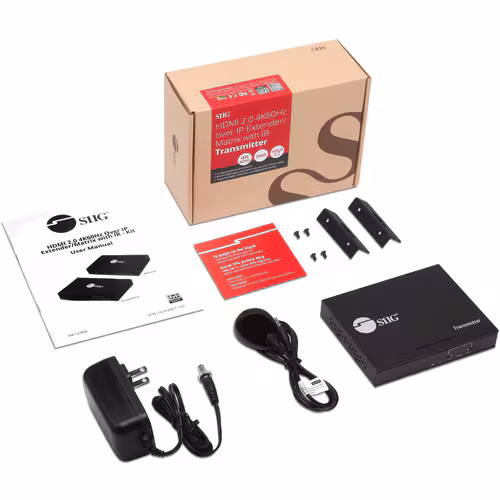

Package Contents	<ul> <li>HDMI 2.0 4K60Hz Over IP Extender / Matrix with IR - Transmitter</li> <li>Power Adapter</li> <li>IR Blaster Cable</li> <li>Mounting Ear (2pcs) and Screw (4pcs)</li> <li>Insert Card</li> <li>User Manual</li> </ul>
Country of Origin	China
Transmitter Depth	5.28"
Transmitter Width	4.33"

Show all 25 specs

Transmitter Height	1.18"
Media Type Supported	Twisted Pair
Number of HDMI Inputs	1
Connectivity Technology	Wired
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	CE-H25B11-S1
Maximum Operating Distance	393.70 ft
Twisted Pair Cable Standard	Category 7
Manufacturer Website Address	http://www.siig.com
Number of Network (RJ-45) Ports	1
Transmitter Weight (Approximate)	11.52 oz
Number of Input Devices Supported	1
