SIIG
HDMI 2.0 4K HDR REPEATER 20M
$59.99$27.00
SIIG
HDMI 2.0 4K HDR OVER HDBASET
SKU: 8JX758VPN: CE-H24P11-S1
HDMI 2.0 4K HDR OVER HDBASET
Key Features
- Video Extender Receiver is a reliable audio/video transmission extending solution
- 3840 x 2160 maximum video resolution for a vivid, crystal clear display with added productivity
- HDMI out enables you to transfer data from your devices to video extender receiver with added efficiency
- Twisted pair media type helps minimize electromagnetic radiation and it also effectively resist external interference
- 2 output devices supported for maximum feasibility and usage convenience
- 198 ft maximum operating distance for feasible operation and optimal coverage
- 4K graphics mode for an immersive and sharp viewing experience
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Receives HDMI signals over CAT5e/6 cable up to 198ft with resolution auto-scaling, IR control, and Power over Cable support
- Receives Full HD 1080p HDMI signals up to 198ft (60m) and 4K@60Hz signals up to 114ft (35m) over CAT5e/6 cable
- Provides additional receiver unit for HDMI 2.0 4K HDR 1x4 Splitter HDBaseT Extender with Auto-scaling (part# CE-H24N11-S1) sold separately
- Supports 4K@60Hz YUV 4:4:4 8-bit, 4K@60Hz HDR YUV 4:2:0 10-bit resolutions
- Supports PoC (Power over Cable) technology which allows the transmitter and receiver unit(s) to be powered by only one power supply connected to the transmitter unit
- Receiver unit supports 2 HDMI outputs for more display connections
- Supports EDID management for increased device compatibility
- Supports resolution auto-down scaling from 4K to 1080p allowing displays of different capabilities to be connected simultaneously
- Pure unaltered uncompressed 7.1ch digital HDMI over CAT5e/6 cable transmission offers the best audio signal
- DTS-HD Master Audio and Dolby TrueHD high bit rate audio for true sound compatibility
- Supports full bi-directional IR pass-through signal from 30KHz to 56KHz frequency
Tech Specs
| USB | Yes |
|---|---|
| HDMI Out | Yes |
| Brand Name | SIIG |
| Manufacturer | SIIG, Inc |
| Product Name | HDMI 2.0 4K HDR over HDBaseT Receiver |
| Product Type | Video Extender Receiver |
| TAA Compliant | Yes |
| Graphics Modes | 4K |
| Receiver Depth | 5.47" |
| Receiver Width | 2.76" |
| Network (RJ-45) | Yes |
| Receiver Height | 0.75" |
Show all 28 specsShow fewer

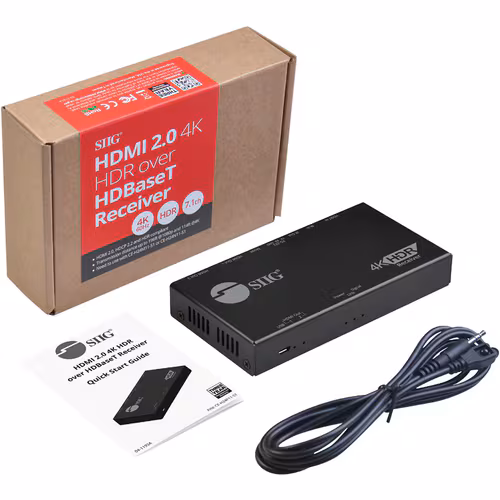

| Package Contents | <ul> <li>HDMI 2.0 4K HDR over HDBaseT Receiver</li> <li>IR Receiver Cable</li> <li>Terminal Block </li> <li>Mounting Kit (Screw kit: 4x20 mm 2pcs, Mounting ears 2pcs, Screw kit: 3x4 mm 4pcs)</li> <li>Quick Start Guide</li> </ul> |
|---|---|
| Country of Origin | Taiwan |
| Number of USB Ports | 1 |
| Media Type Supported | Twisted Pair |
| Number of HDMI Outputs | 2 |
| Connectivity Technology | Wired |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | CE-H24P11-S1 |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Operating Distance | 198 ft |
| Twisted Pair Cable Standard | Category 6 |
| Manufacturer Website Address | http://www.siig.com |
| Receiver Weight (Approximate) | 6.24 oz |
| Number of Network (RJ-45) Ports | 1 |
| Number of Output Devices Supported | 2 |
