HD HDMI EXTENDER OVER IP TRANSM WITH POE RS-232 & IR - TRANSMITTER

SKU: 8PW598VPN: CE-H26411-S1

In Stock

$269.99$167.11

Actual pricing depends on volume, configuration, and current promotions. Reach out and we'll put together a real quote — often below this number.

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

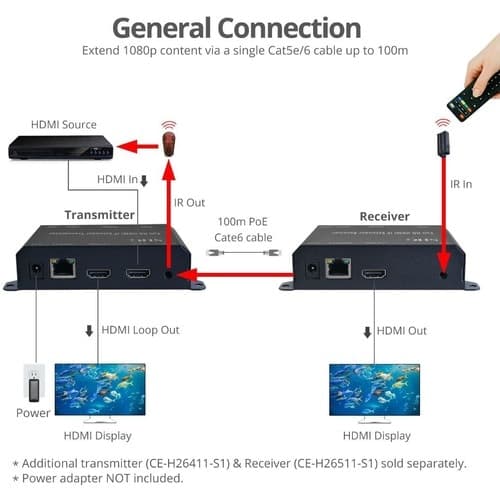

Transmits HDMI signals over CAT5e/6 cabling up to 100 meters to a remote display using PoE Gigabit switches
Features

Transmitts HDMI signals with stereo audio to a remote display over UTP Cat5e/6 cabling up to 100 meters. Note: Requires Full HD HDMI Extender over IP with PoE, RS-232 & IR - Decoder (RX), part# CE-H26511-S1, sold separately

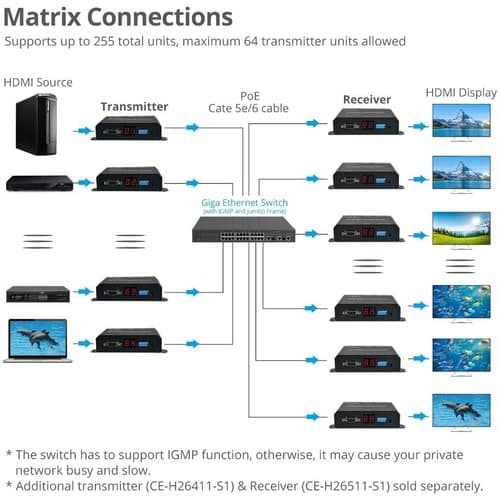

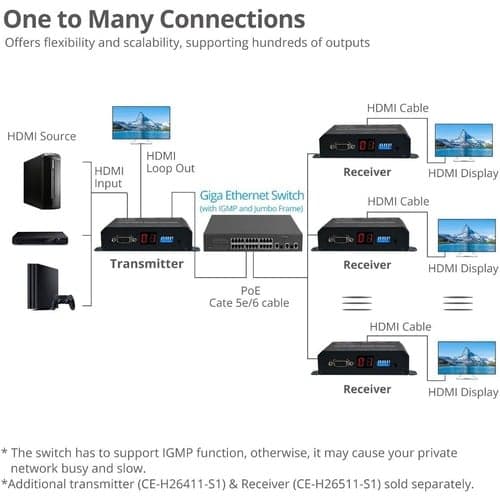

Works as a scalable TX/RX Matrix over dedicated IP network using PoE Gigabit Switches, allows up to 255 total units, limited to 64 transmitters. Requires additional encoder (TX)units (part# CE-H26411-S1) and decoder (RX)units (part# CE-H26511-S1) sold separately
Note: IGMP PoE Gigabit Switch is recommended for best performance and reliability
Power over Ethernet (PoE) powers the transmitter(s) and receiver(s) over Cat cable from your PoE Gigabit Switch (purchase separately)
Full HD 1080p video resolution delivers stunning and clear images
Local HDMI loop-out allows you to monitor the extended display from the source location
IR pass back function controls the source device from remote RX location

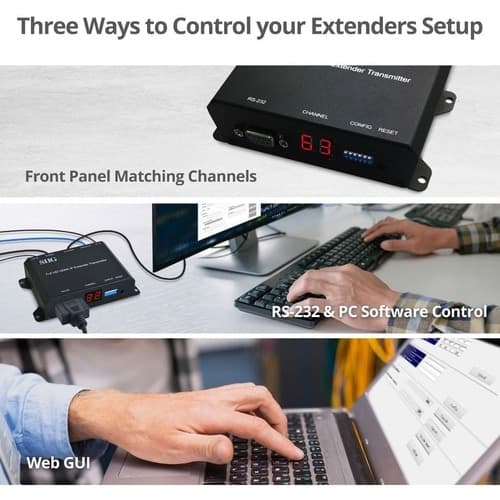

Computer control software allows you to select and switch between source devices (Matrix mode only)
Video protocol with H.264 compression over IP
Features MP3 audio compression and stereo 192Kbps encoder/ decoder

HD HDMI EXTENDER OVER IP TRANSM WITH POE RS-232 & IR - TRANSMITTER specifications
HDMI	Yes
Brand Name	SIIG
Device Type	KVM Extender
Graphic Mode	Full HD
Manufacturer	SIIG, Inc
Product Name	Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter
Product Type	KVM Extender Transmitter
Product Color	Black
Network (RJ-45)	Yes

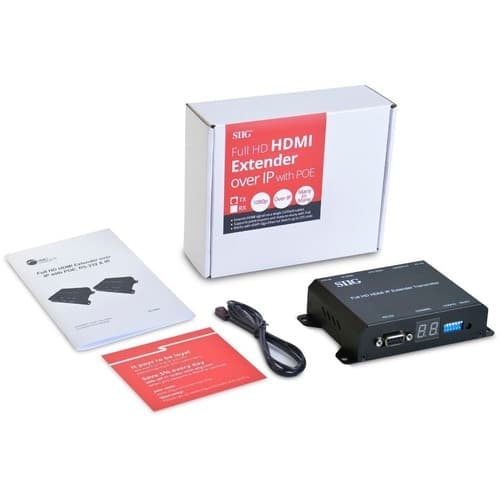

Package Contents	<ul> <li>Full HD HDMI Extender over IP with PoE, RS-232 & IR - Transmitter</li> <li>1 x IR Emitter cable</li> <li>Quick Start Guide</li> </ul>
Country of Origin	China
Transmitter Depth	1.19"

Show all 26 specs

Transmitter Width	5.12"
Transmitter Height	3.23"
Number of HDMI Ports	2
Connectivity Technology	Wired
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmentally Friendly	Yes
Manufacturer Part Number	CE-H26411-S1
Maximum Video Resolution	1920 x 1080
Maximum Operating Distance	328.08 ft
Manufacturer Website Address	http://www.siig.com
Number of Computers Supported	1
Number of Local Users Supported	1
Number of Network (RJ-45) Ports	1
Transmitter Weight (Approximate)	10.24 oz
