STARTECH.COM

HARD DRIVE BAY MOBILE RACK SATA SAS HDD 5.25 TRAYLESS ADAPTER

SKU: 8Z4102VPN: HSB1SATSASBA

HARD DRIVE BAY MOBILE RACK SATA SAS HDD 5.25 TRAYLESS ADAPTER

Key Features

  • Hot swap drives between systems, using a 3.5" SATA or SAS drive in a 5.25" front bay
  • Durable aluminum construction
  • Trayless design for ease of use
  • Supports SAS I/II and SATA I/II/III
  • Lockable, secure drive door
  • Venting to optimize heat dissipation
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

This removable hard drive hot-swap bay makes it easy to swap 3.5" SATA or SAS drives in and out of your server or desktop computer, using an available 5.25" front drive bay. It features a trayless design that saves you installation time and enables you to insert or remove drives as needed, creating a convenient solution for drive maintenance and interchangeability of data between multiple systems. Hot-swap drives easily This hot-swap bay/mobile rack is ideal for IT professionals, such as system administrators or computer operators, for quickly swapping, replacing, or transporting drives between various systems and locations. With support for both SATA and SAS 3.5" drives, it saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers. Valuable drive protection The hot-swap bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation. To safeguard your data, you can lock the drive bay door to prevent unauthorized access to your drive. Fast data transfers To maximize the speed and performance of your drives, the mobile rack supports SAS I and II and SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller. The HSB1SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Tech Specs

HARD DRIVE BAY MOBILE RACK SATA SAS HDD 5.25 TRAYLESS ADAPTER specifications
Depth7.1"
Width5.7"
Height1.5"
Brand NameStarTech.com
Cooling FanNo
Form FactorInternal
Color FamilyBlack
ManufacturerStarTech.com
Product Name5.25 to 3.5 Hard Drive Hot Swap Bay - For 3.5" SATA/SAS Drives-Trayless-Aluminum
Product TypeDrive Bay Adapter
Wireless LANNo
Product ColorBlack
Show all 27 specs
Host InterfaceSerial ATA/600
Drive InterfaceSATA/600

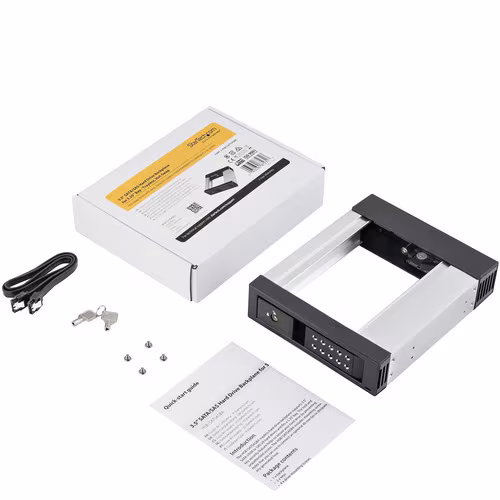

Package Contents<ul> <li>5.25 to 3.5 Hard Drive Hot Swap Bay - For 3.5" SATA/SAS Drives-Trayless-Aluminum</li> <li>1 x SATA Data Cable</li> <li>2 x Keys</li> <li>4 x Screws</li> <li>1 x Quick-start Guide</li> </ul>
Product MaterialAluminum
Country of OriginChina
Packaged Quantity1 Each
Number of 3.5" Bays1
Weight (Approximate)11.90 oz
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberHSB1SATSASBA
Compatible Drive Bay Width5.25"
Manufacturer Website Addresshttp://www.startech.com
Number of Total Expansion Bays1
Number of Hard Drives Supported1
