BLACK BOX CORPORATION
GIGATRUE 550 CAT6 BULK PLN VIOLET 1K
SKU: 680L24VPN: EYN865B-PB-1000

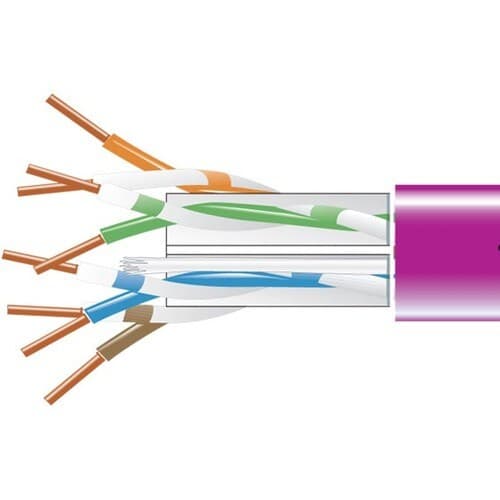

GIGATRUE 550 CAT6 BULK PLN VIOLET 1K
Key Features
- Plenum-rated Violet CMP flame-retardant PVC jacket with FEP insulation
- Ideal for Gigabit Ethernet, VoIP, digital video and audio
- Tested to 550 MHz/1 Gbps transmission rate with 23-AWG construction
- UTP 4-pair solid copper wire with cross-member for added strength
- Premium high-speed cabling intended for Cat6 plenum applications
- Meets ANSI/TIA/EIA-568-C.2 Category 6 and ISO/IEC 11801, Class E
- Descending sequential two-foot markings on cable
- TAA Compliant, GSA Certified, ETL Component Level Verified
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
Thick, 23 AWG, 4-pair solid-copper wire for top performance in long runs and horizontal applications including drop ceilings and air ducts. Cable is marked in two-foot increments so you always know how much you have left in the pull-box.
Ideal for Gigabit Ethernet, VoIP, digital video and audio, and other high-performance networking applications. The cross-member design means superior strength and performance. This cable is tested to 550 MHz/1 Gbps communications for fast transmission and excellent signal quality.
Designed for plenum (in-wall) use, these high-quality CMP rated cables feature a flame-retardant PVC, low-smoke jacket and EP insulation. Meets fire codes and specifications so you can confidently use it in all your plenum runs.
This cable is ETL Verified, UL Listed and meets all safety codes and regulations. Guaranteed to meet or exceed ANSI/TIA/EIA-568-C.2 Category 6 and ISO/IEC 11801 Class E requirements.
Tech Specs
| Features | Flame Retardant |
|---|---|
| Conductor | Bare Copper |
| Shielding | No |
| Brand Name | Black Box |
| Cable Type | Category 6 |
| Jacket Type | CMP |
| Cable Length | 1000 ft |
| Manufacturer | Black Box Corporation |
| Package Type | Bulk |
| Product Line | GigaTrue |
| Product Name | CAT6 550-MHz Solid Bulk Cable UTP CMP Plenum Purple 1000FT Pull-Box |
| Product Type | Network Cable |
Show all 29 specsShow fewer
| Product Color | Purple |
|---|---|
| TAA Compliant | Yes |
| Shipping Width | 9" |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shipping Height | 16.25" |
| Device Supported | Network Device |
| Country of Origin | Taiwan |
| Data Transfer Rate | 1 Gbit/s |
| American Wire Gauge | 23 AWG |
| Manufacturer Part Number | EYN865B-PB-1000 |
| Certifications & Standards | <ul><li>ETL-Verfied</li><li>ANSI/TIA/EIA-568-C.2 Category 6</li><li>ISO/IEC 11801 Class E</li><li>UL 444 Listed</li></ul> |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Manufacturer Website Address | http://www.blackbox.com |
| Shipping Weight (Approximate) | 29 lb |
| Connector on First End Details | Bare Wire |
| Connector on Second End Details | Bare Wire |
