PANDUIT
FFC 600MM 48RU 1200MM BLK HMRSHP LR PAN SPRD CAST
SKU: 9AY958VPN: XG64822BS0001
FFC 600MM 48RU 1200MM BLK HMRSHP LR PAN SPRD CAST
Key Features
- Performance:Best in class static load rating of 3,500 LBS and 2,500 LBS rolling load is the result of a sturdy and robust cabinet design that safely allows housing of heavier and high-density equipment. 80% open perforated doors assures maximum airflow thru the cabinet for high thermal application.
- Rapid Deployment: Easy to adjust equipment rails, tool-less vertical cable manager bracket and tool-less top cap rear entry allows for a faster cabinet installation time than other cabinets.
- Versatility:Cabinet is available in wide range of sizes and options for hot aisle/cold aisle or thermal containment deployment
- Scalability:Configure to order platform to achieve the cabinet to your specification and save time and reduce Capex in your network deployment
- Bonding:Cabinets and accessories are integrally bonded without the use of grounding wires to provide a safe and reliable network while reducing installation costs
- Durable coating:Cabinets are powder coated in a durable, low maintenance polyester epoxy paint available in black (RAL9005) or white (RAL9003)
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

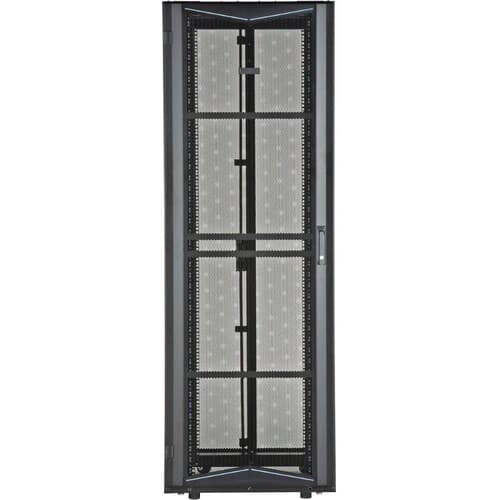

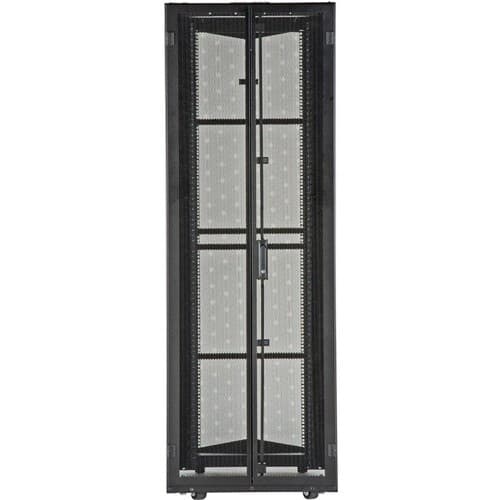

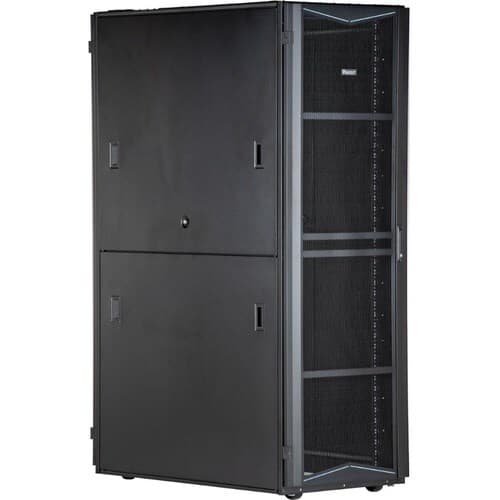

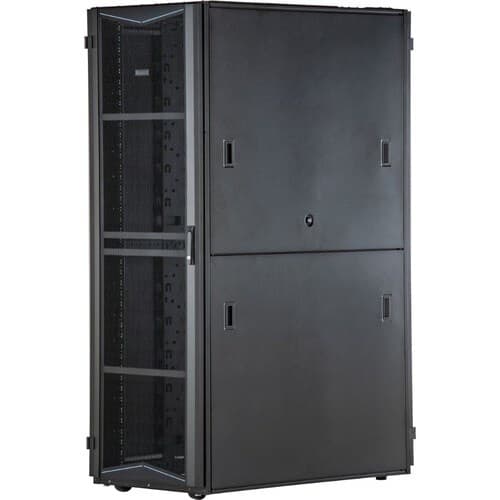

FlexFusion Cabinet, 600mm x 48RU x 1200mm, Black, Hardware Mount Rail, Top Cap w/ Brush Seal, Single Hinge Perforated Front Door, Split Perforated Rear Door, Standard Locks, Left and Right Side Panels, Left PDU Bracket, Casters
Tech Specs
| Depth | 47.2" |
|---|---|
| Width | 23.6" |
| Height | 89.2" |
| Features | Adjustable Mounting Rails |
| Brand Name | Panduit |
| Rack Width | 19" |
| Form Factor | Floor Standing |
| Rack Height | 48U |
| Manufacturer | PANDUIT CORP |
| Product Line | FlexFusion |
| Product Name | FlexFusion Cabinet |
| Product Type | Rack Cabinet |
Show all 25 specsShow fewer
| Product Color | Jet Black |
|---|---|
| Product Family | FlexFusion |
| Package Contents | <ul> <li>FlexFusion Cabinet</li> <li>Adjustable Front and Rear Equipment Rails</li> <li>Rail Position Markers</li> <li>Heavy-Duty Levelling Legs</li> <li>Ganging Brackets</li> <li>Standard Floor Mounting Brackets</li> <li>25 each M6 Cage Nuts and Screws</li> </ul> |
| Product Material | Steel |
| Application/Usage | LAN Switch |
| Assembly Required | No |
| Country of Origin | Mexico |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | XG64822BS0001 |
| Manufacturer Website Address | http://www.panduit.com |
| Dynamic/Rolling Weight Capacity | 2504.45 lb |
| Static/Stationary Weight Capacity | 3507.55 lb |
