STARTECH.COM

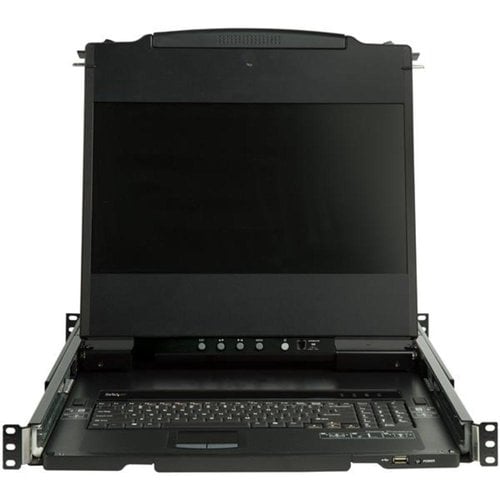

DVI VGA RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH

SKU: 5TN577VPN: RKCOND17HD

DVI VGA RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH

Key Features

  • Flexible Design: Rackmount KVM console w/ dual rails that allow the screen & keyboard to be pulled in & out independently, perfect for system monitoring as needed and to be put away when not in use
  • High Definition: Rack mount monitor w/high-resolution widescreen (16:9) 1080p LCD panel perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring
  • Versatile Interfaces: 17.3" Active Matrix TFT 16:9 widescreen | Dual Rails | 1U height | Full keyboard + Trackpad | Integrated Power Supply | Front Facing USB Port | Supports VGA / DVI & USB
  • Wide compatibility: Single port HD KVM console drawer works w/ any KVM switch brand or model that supports VGA or DVI and USB interfaces and conveniently slides into the server rack when not in use
  • Max Durability: Features a durable steel housing design and rails to stand up to frequent use, rated to work in environments from 0 to 40 deg. C and a 44,230 hour MTBF with 24/5 Tech Support
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Providing centralized control of your single PC or dozens of servers, this dual rail rackmount KVM console also gives you easy access to and visibility of your system while it's mounted in a server rack or cabinet. Dual Rail Design The dual rail KVM console design maximizes space in your datacenter's rack cabinets by allowing the LCD monitor and the keyboard/mouse to move separately from each other. You can tuck the keyboard away while the display stays active, allowing you to conveniently monitor your computer through closed glass or mesh rack cabinet doors. High Definition LCD Monitor The 1080p KVM console is 17.3" and LED back-lit, for low power consumption. It supports high definition resolutions up to 1920x1080 providing sharper video performance. Digital & Analog Support Whether you are running a multi-port KVM with an analog display or a single port KVM with a high definition display, this DVI/ VGA KVM console can support both signals. Simple Setup This KVM console comes with everything you need to set up: 1 Audio Cable 1 Set of KVM Cables (USB/VGA) 2 Rear Mounting Brackets M5 Cage Nuts and Screws Once your KVM console is mounted to your rack, you can use the USB port on the front to easily connect any USB compatible peripheral such as a fingerprint scanner or mousethumb drive. StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This dual rail KVM console is backed by a 2-year warranty and free lifetime technical support.

Tech Specs

DVI VGA RACKMOUNT KVM CONSOLE INTEGRATED LCD MONITOR KVM SWITCH specifications
DVIYes
USBYes
VGAYes
Depth28.6"
Width18.9"
Height1.7"
KeyboardYes
Brand NameStarTech.com
KVM SwitchNo
Device TypeLCD Rack Console
Rack Height1U
Screen ModeFull HD
Show all 45 specs
Screen Size17.3"
Color FamilyBlack
ManufacturerStarTech.com
Product Name17" HD Rackmount KVM Console - Dual Rail
Product TypeLCD Rack Console
Input Current1 A
Input Voltage230 V AC
Product ColorBlack
WEEE Statementhttps://media.startech.com/cms/pdfs/rkcond17hd_weee.pdf
Package Contents<ul> <li>17" HD Rackmount KVM Console - Dual Rail</li> <li>2 x Rear Mounting Bracket </li> <li>1 x KVM Cables</li> <li>1 x Firmware Upgrade Cable</li> <li>1 x Audio Cable</li> <li>8 x M5 Cage Nuts </li> <li>8 x M5 Screws</li> <li>5 x Power Cords (NA, JP, UK, EU, ANZ)</li> <li>1 x Quick-Start Guide</li> </ul>
Product MaterialSteel
Country of OriginChina
Packaged Quantity1 Each
Power Consumption10.20 W
Screen Resolution1920 x 1080
Platform SupportedPC
REACH free of SVHCYes
Display Screen TypeLED
Input Voltage Range100V AC to 240V AC
Number of DVI Ports2
Number of USB Ports3
Number of VGA Ports2
Pointing Device TypeTouchPad
Weight (Approximate)26.46 lb
REACH Declaration URLhttps://media.startech.com/cms/pdfs/rkcond17hd_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/rkcond17hd_rohs.pdf
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 2
Environmentally FriendlyYes
Manufacturer Part NumberRKCOND17HD
Environmental CertificationEU RoHS
Manufacturer Website Addresshttp://www.startech.com
Number of Computers Supported1
End of Life Manual AvailabilityYes
