ZEBRA ENTERPRISE ADC-A4

DS3608-ER RUGGED GRN VIBRATION MOTOR USB KIT SCAN HIGH CURENT CABL

SKU: 6G1728VPN: DS3608-ER3U4602ZVW

DS3608-ER RUGGED GRN VIBRATION MOTOR USB KIT SCAN HIGH CURENT CABL

Key Features

  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Perfect for applications that require direct association with a workstation or a notebook
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

Unstoppable performance for extended range 1D/2D barcode scanning

Every day, workers in your warehouse scan thousands of barcodes to ensure order accuracy and on-time delivery. Their productivity depends on the quality of the scanner you put in their hands. If your workers need to capture 1D and 2D barcodes near and far, with the corded DS3608-ER and cordless DS3678-ER scanner, you can give them the best - unmatched rugged design, unmatched scanning performance and unrivaled manageability. The advanced imager delivers lightning-fast capture of any 1D or 2D barcode displayed on a screen or printed on a label in virtually any condition, nearer and farther than any scanner in this class - from 3 in./7.6 cm to as far as 70 ft./21.4 m away. The ultra-rugged design is practically indestructible - ideal for punishing environments. The DS3608-ER/DS3678-ER couldn't be easier and less time-consuming to deploy and manage. And when it comes to cordless technology, the DS3678-ER is loaded with Zebra-only features that put it in a class of its own. The DS3608-ER/DS3678-ER - the unstoppable performance you need to maximize workforce productivity and throughput in your operations.

Superior scanning range
The advanced imager reads 1D and 2D barcodes printed on a label up to 60 percent closer and 35 percent farther than similar models in this class, with an extraordinary scanning range from 3 in. to 70 ft. (7.6 cm to 21.4 m). Now, one scanner can easily read barcodes on a picklist in hand and on the uppermost shelves of your warehouse racks, as well as extra-wide codes just a hands-length away - even if they are under shrinkwrap, damaged, dirty or poorly printed. The result? Workers can capture barcodes as fast as they can pull the trigger for first-time every time scanning - and extraordinary productivity.

Ultra-rugged - the most indestructible design in its class
The DS3608-ER/DS3678-ER is our most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-ER/DS3678-ER is built to survive an 8 ft./2.4 m drop to concrete - 23 percent more durable than any other scanner in this class. The DS3608-ER/DS3678-ER operates reliably after 5,000 tumbles, simulating the real-world tumbling that occurs with a drop. Both models are dust proof, spray proof and waterproof to IP67 - they can be sprayed down with jetting water and even submersed in water.

Easy management with our complimentary industry-best tools
Remotely configure scanners, upgrade firmware, format data properly for your back end and monitor PowerPrecision+ battery statistics and more with 123Scan and Scanner Management Service (SMS).

Tech Specs

DS3608-ER RUGGED GRN VIBRATION MOTOR USB KIT SCAN HIGH CURENT CABL specifications
Depth5.2"
Width3"
Height7.3"
RuggedYes
Brand NameZebra
Form FactorHandheld
Color FamilyDual Color
ManufacturerZebra Technologies Corporation
Power SourceDC

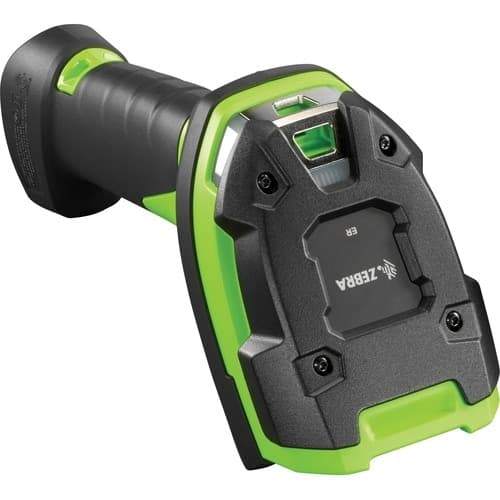

Product NameDS3608-ER Handheld Barcode Scanner
Product TypeBarcode Scanner Kit
Scan PatternOmni-directional
Show all 40 specs
Product ColorBlack
Product ModelDS3608-ER
Scanner RangeExtended Range
Host InterfaceUSB
Product Family3600
Product Series3600
Package Contents<ul> <li>DS3608-ER Handheld Barcode Scanner</li> <li>USB Cord</li> </ul>
Application/UsageIndustrial
Country of OriginChina
Image Sensor TypeImager
Drop Specification<p>Withstands multiple 8.0 ft./2.4 m drops to concrete</p>
Cable Type IncludedUSB
Scanning Capability2D
Reading Angle (Roll)360°
Reading Angle (Skew)60°
Weight (Approximate)11.80 oz
Maximum Ambient Light107639 lux
Reading Angle (Pitch)60°
Minimum Print Contrast25%
Connectivity TechnologyCable
Field of View (Vertical)20°
Manufacturer Part NumberDS3608-ER3U4602ZVW
Field of View (Horizontal)32°
Barcode Symbology Supported<p><b>1D:</b></p> <ul> <li>Code 39</li> <li>Code 128</li> <li>Code 93</li> <li>Codabar/NW7</li> <li>Code 11</li> <li>MSI Plessey</li> <li>UPC/EAN</li> <li>I 2 of 5</li> <li>Korean 3 of 5</li> <li>GS1 DataBar</li> <li>Base 32 (Italian Pharma)</li> </ul> <p><b>2D:</b></p> <ul> <li>PDF417</li> <li>Micro PDF417</li> <li>Composite Codes</li> <li>TLC-39</li> <li>Aztec</li> <li>DataMatrix</li> <li>MaxiCode</li> <li>QR Code</li> <li>Micro QR</li> <li>Chinese Sensible (Han Xin)</li> <li>Postal Codes</li> <li>DotCode</li> </ul> <p><b>Digimarc:</b></p> <ul> <li>Digital watermark technology</li> </ul> <p><b>IUID Support:</b></p> <ul> <li>Supports IUID parsing, the ability to read and separate IUID fields per application requirements</li> </ul>
Manufacturer Website Addresshttp://www.zebra.com
Ingress Protection (IP) RatingIP67
Maximum Element Resolution (DataMatrix)10 mil
Minimum Element Resolution (DataMatrix)7.5 mil
