DP80 VESA 2M 656FT CABLE M-M DP80 CERTIFIED CABLE 2M/656FT
DP80 VESA 2M 656FT CABLE M-M DP80 CERTIFIED CABLE 2M/656FT
Key Features
- Offers intense audio and video compatibility
- Features DisplayPort cable type for optimal performance and better dependability
- Display Stream Compression (DSC) 1.2 feature for better usability and increased efficiency
- Fully compatible with PCs
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview

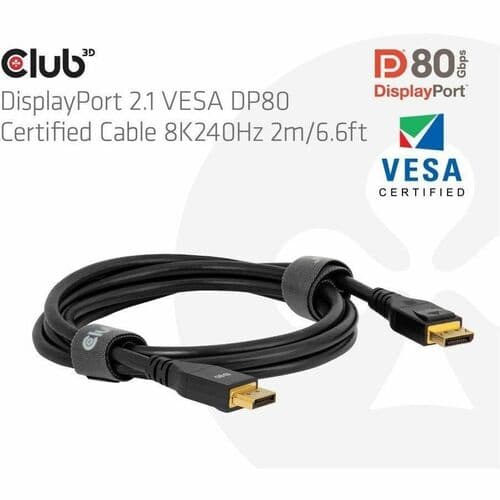

The Club 3D CAC-1094 DisplayPort™ 2.1 Cable enables the connection of your DisplayPort™ supported (Gaming) PC or Laptop to an (Ultra) High Resolution Monitor or other DisplayPort™ supported device. DisplayPort™ 2.1 UHBR10/13.5/20 up till 80 Gbps, also has support for Display Stream Compression 1.2 (DSC), Forward Error Correction, and extends the maximum number of inline audio channels to 32.Thanks to improvements in both the DisplayPort™ connector and cable design, the new VESA certified DP80 UHBR cables enable consumers to get the highest performance possible from their VESA certified devices. These new cables are backed by VESA's UHBR Certification Program, which provides added assurance that if your cable has the DP40 or DP80 logo from VESA, it will meet the specs for the highest data rates supported by current and future products certified by VESA.

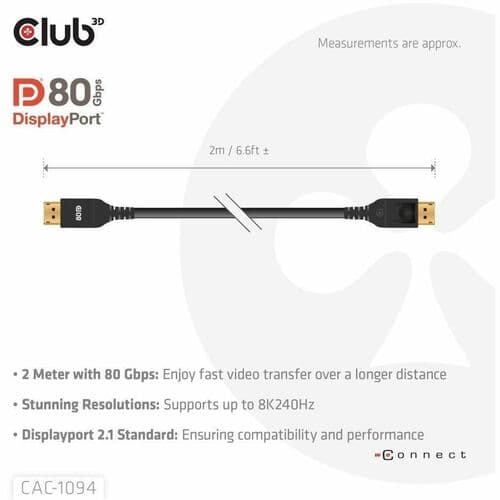

- EXCEPTIONAL CABLE LENGTH: This is the first DP80 cable to reach two metres.
- HIGH PERFORMANCE: The DP80 is the top-tier version of the DisplayPort™ 2.1 standard. It can support a video signal of up to 8K60Hz with HDR without compression. With DSC enabled, the frequency can be increased to 8K240Hz.
- VESA CERTIFIED: This ensures that the highest standards are met in terms of both physical and electrical quality in a 26 AWG cable.

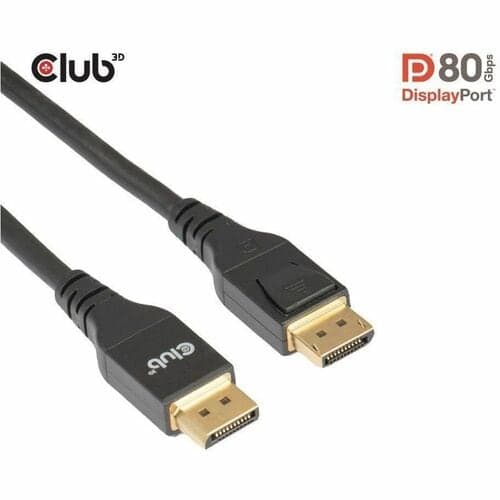

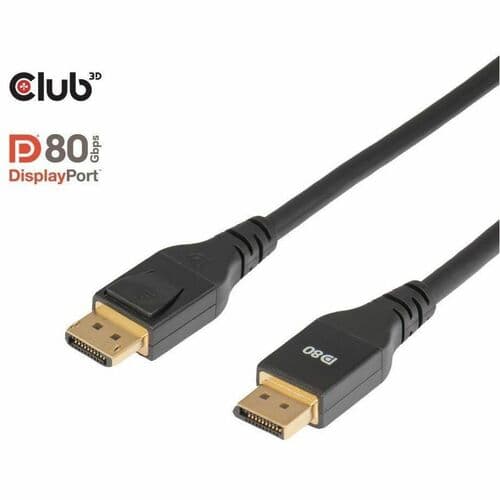

- QUALITY CONSTRUCTION: Nickel-plated connectors with PVC strain reliefs for durability; Twisted Pair wire with braided alloy shield for enhanced EMI protection.
Tech Specs
| Features | EMI Protection |
|---|---|
| Shielding | Yes |
| Brand Name | Club 3D |
| Cable Type | DisplayPort |
| Cable Length | 6.56 ft |
| Manufacturer | Club 3D |
| Product Name | DisplayPort 2.1 VESA DP80 Certified Cable 8K240Hz 2m/6.56ft |
| Product Type | A/V Cable |
| Device Supported | Monitor |
| Application/Usage | Gaming |
| Connector Plating | Nickel |
| Packaged Quantity | 1 |
Show all 27 specsShow fewer
| Connector Material | Polyvinyl Chloride (PVC) |
|---|---|
| Data Transfer Rate | 80 Gbit/s |
| Shielding Material | Braided Alloy |
| American Wire Gauge | 26 AWG |
| Supported Resolution | 7680 x 4320 |
| Weight (Approximate) | 0.33 lb |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Manufacturer Part Number | CAC-1094 |
| Connector Type on First End | DisplayPort 2.1 Digital Audio/Video - Male |
| Connector Type on Second End | DisplayPort 2.1 Digital Audio/Video - Male |
| Manufacturer Website Address | http://www.club-3d.nl |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Male |
| Connector on First End Details | 1 x DisplayPort 2.1 Digital Audio/Video - Male |
| Connector on Second End Details | 1 x DisplayPort 2.1 Digital Audio/Video - Male |
