ROCSTOR

DOCKING STATION USB-C TRIPPLE DISPLAY RD11 3X HDMI

SKU: NJ2074VPN: Y10P026-S1

DOCKING STATION USB-C TRIPPLE DISPLAY RD11 3X HDMI

Key Features

  • Flexible Display Options: DP1.4 Alt Mode & DisplayLink USB Mode: Ensures versatile video output capabilities for various devices.
  • Host Connectivity: USB-A to Type-C Converter: Enables connection to USB-A hosts for enhanced compatibility.
  • High-Speed Data Transfer: USB-A 10G Port: Supports up to 10Gbps data transmission with 1.5A downstream charging for fast and efficient performance.
  • Additional USB Ports: Three USB-A 5G Ports: Provide up to 5Gbps data transmission with 1.5A or 900mA downstream charging for multiple devices.
  • Triple video ports: HDMI, DisplayPort, supporting up to 3 simultaneous 4K/60Hz outputs
  • High-Quality Sound: 3.5mm audio jack
  • Gigabit Ethernet: 10M/100M/1000M/2.5G
  • Power Supply: 100W Power Delivery (PD) for fast charging
  • Compatibility: Windows, macOS, including Apple M1/M2/M3 Processors
  • Warranty: Rocstor 3-Year Limited Warranty
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

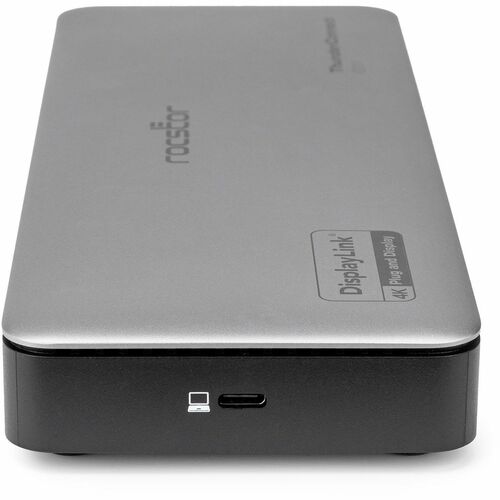

The Rocstor RD11 ThunderConnect RD11 Docking Station is a versatile 13-in-1 USB-C Triple Display Docking Station that enhances the capabilities of your Type-C or USB-A port (with a USB to Type-C converter). Featuring DisplayPort Alt mode and a DisplayLink solution, this docking station offers an array of video, data, audio, Ethernet, and power ports to meet diverse user needs. With 5 video outputs, capable of simultaneously displaying on 3 monitors in MST mode, and 5 USB data ports (including 1 USB-C 10G, 1 USB-A 10G, and 3 USB-A 5G), it ensures seamless video transmission and efficient data transfer. The docking station also provides super-fast Ethernet connectivity with a 2.5G Ethernet port and a dedicated 3.5mm audio port for high-quality sound.

Experience unparalleled connectivity with the RD11 Docking Station, equipped with a DC power jack that offers up to 134W or 100W power supply for uninterrupted performance. Whether you are using a Type-C, Thunderbolt, or USB-A host, this docking station extends your connectivity options, making it an ideal solution for various devices, including MacBooks and other USB-C supported hosts. Designed to support high-definition video and fast data transfer, this docking station is perfect for multitasking and enhancing productivity in both professional and personal settings.

The RD11 Docking Station is engineered for compatibility with all Type-C, Thunderbolt, or USB-A hosts that support USB mode. Its comprehensive range of ports and features, including triple simultaneous 4K/60Hz monitor support, makes it a powerful and flexible addition to any workspace. This docking station not only boosts your device's connectivity but also enhances overall performance with its intelligent design and high-speed capabilities. Backed by Rocstor 3-year limited warranty and lifetime free technical support.

Tech Specs

DOCKING STATION USB-C TRIPPLE DISPLAY RD11 3X HDMI specifications
HDMIYes
Width3.30"
Height0.90"
Length8.8"
Brand NameRocstor
USB Type-AYes
USB Type-CYes
DisplayPortYes
Form FactorPortable
HDMI Version1.4
ManufacturerRocstor
Product LineThunderConnect
Show all 50 specs
Product NameThunderConnect RD11 USB-C 13-in-1 Triple Display Docking Station
Product TypeDocking Station
Compatibility<p><strong>Compatible Products:</strong></p><ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Chromebook</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Dell XPS Laptops</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Apple MacBook</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Microsoft Surface Tablet</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Microsoft Surface Notebook</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>USB-C Laptops</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>USB-C Tablets</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>USB4 Laptops</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Thunderbolt 3 Laptops</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>Thunderbolt 4 Laptops</li></ul>
Product ModelRD11
Host InterfaceUSB4
Network (RJ-45)Yes
Device SupportedTablet
Limited Warranty3 Year
Package Contents<ul><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>ThunderConnect RD11 USB-C 13-in-1 Triple Display Docking Station</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>1 x User Manual</li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>1 x DC Power (134W or 100W) </li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>1 x DC Power Cable </li><li data-list="bullet"><span class="ql-ui" contenteditable="false"></span>1 x Type-C M to Type-C M Cable (10G,5A)</li></ul>
Country of OriginVietnam
Packaged Quantity1
USB Type-C Detail1 x USB-C Gen 2 10G
Security Slot TypeKensington Security Slot
USB Power Delivery96W
Brand CompatibilityMicrosoft
Charging CapabilityYes
DisplayPort Version1.4
Ethernet Technology2.5 Gigabit Ethernet
Management FeaturesWake-on-LAN
Weight (Approximate)15.70 lb
Number of RJ-45 Ports1
Screen Mode Supported4K @ 60Hz
Supported Resolutions7680 x 4320
Number of HDMI Outputs3
Connectivity TechnologyWired
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Kensington Security SlotYes
Manufacturer Part NumberY10P026-S1
Total Number of USB Ports5
Maximum Data Transfer Rate1.25 GB/s
Number of USB Type-A Ports4
Number of USB Type-C Ports1
Operating System SupportedMac OS X 10.14 Mojave
Manufacturer Website Addresshttp://www.rocstor.com
Maximum Power Supply Wattage134 W
Number of Displays Supported3
Number of DisplayPort Outputs2
Headphone/Microphone Combo PortYes
