STARTECH.COM

DISPLAYPORT TO MINI DISPLAYPORT CABLE ADAPTER DP TO MDP SHORT CORD

SKU: CT6660VPN: DP2MDPMF6IN

DISPLAYPORT TO MINI DISPLAYPORT CABLE ADAPTER DP TO MDP SHORT CORD

Key Features

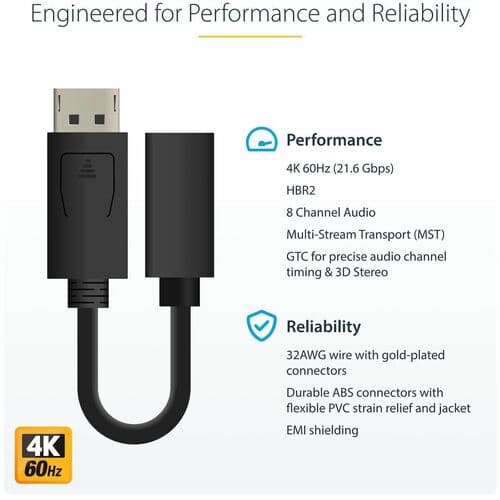

  • DISPLAYPORT TO MINI DISPLAYPORT 1.2 CABLE: 6in (15 cm) DP male to mDP female extension cable; 4K (3840x2400p 60Hz) x 2K (2560x1600p 120Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST); GTC for precise audio channel timing and 3D Stereo
  • RELIABLE DESIGN: DisplayPort to Mini DisplayPort adapter cable has durable ABS connectors with flexible PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
  • QUALITY CONSTRUCTION: 32AWG wire with gold-plated connectors for improved signal integrity and reliability; Superior EMI shielding with Aluminium foil & Braid provide higher quality video and audio; Backwards compatible with DP 1.1
  • APPLICATIONS: DisplayPort to Mini DisplayPort cable is ideal for home/office/boardroom/classroom works with laptop with standard DP port and workstations with FirePro™ S9000/7000, W8100/7100 graphic cards; Use with UHD/4K monitor/projector/display

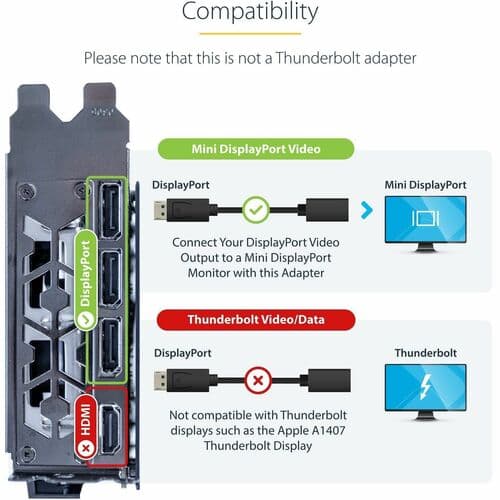

  • NOTE: This DisplayPort to MiniDisplayPort adapter is not compatible with TB monitors like the Apple A1407 Thunderbolt Display; The adapter cannot be used to connect Thunderbolt accessories like docks or audio interfaces to a DP port~
Request a Quote on This Product

Adding to inquiry lets you bundle multiple products into a single quote request.

Overview

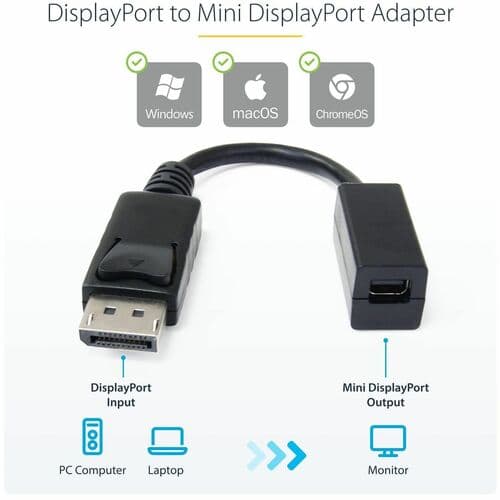

The DP2MDPMF6IN DisplayPort® to Mini DisplayPort Adapter turns a mini DisplayPort (male) connector into a regular DisplayPort (male) connector, making it easy to connect a mini DisplayPort-equipped monitor to a laptop that only provides a standard DisplayPort output (e.g. Apple®; Toshiba® etc.). This 6in DisplayPort to Mini DisplayPort Video Cable Adapter is designed & manufactured to DisplayPort v1.2 standards; Max resolution: 2560x1600 60Hz (depends on the cable quality; Attached cable must be at least DP 1.2).

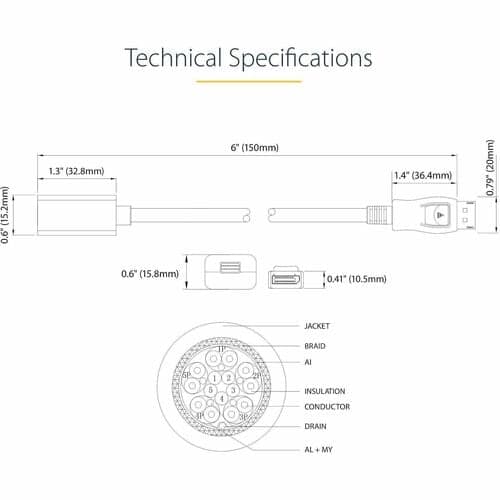

Tech Specs

DISPLAYPORT TO MINI DISPLAYPORT CABLE ADAPTER DP TO MDP SHORT CORD specifications
FeaturesMolded
ConductorCopper
Brand NameStarTech.com
Cable TypeDisplayPort/Mini DisplayPort
Jacket TypeCMG
Cable Length6"
Color FamilyBlack
ManufacturerStarTech.com
Product Name6in DisplayPort to Mini DisplayPort Cable Adapter
Product TypeVideo Cable Adapter
Product ColorBlack
Product ModelDP2MDPMF6IN
Show all 39 specs
Shipping Width7.87"
WEEE Statementhttps://media.startech.com/cms/pdfs/dp2mdpmf6in_weee.pdf
Jacket MaterialPolyvinyl Chloride (PVC)
Shipping Height0.63"
Device SupportedNotebook
Connector PlatingNickel
Country of OriginChina
Packaged Quantity1 Each
REACH free of SVHCYes
American Wire Gauge32 AWG
Supported Resolution2560 x 1600
Weight (Approximate)0.03 lb
REACH Declaration URLhttps://media.startech.com/cms/pdfs/dp2mdpmf6in_rohs.pdf
EU RoHS Declaration URLhttps://media.startech.com/cms/pdfs/dp2mdpmf6in_rohs.pdf
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)
Environmentally FriendlyYes
Manufacturer Part NumberDP2MDPMF6IN
Connector Type on First EndDisplayPort 1.2 Digital Audio/Video - Male
Environmental CertificationEU RoHS
Connector Type on Second EndMini DisplayPort 1.2 Digital Audio/Video - Female
Manufacturer Website Addresshttp://www.startech.com
Connector Gender on First EndMale
Shipping Weight (Approximate)0.96 oz
Connector Gender on Second EndFemale
Connector on First End Details1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector on Second End Details1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Female
End of Life Manual AvailabilityYes

Datasheets & Resources
