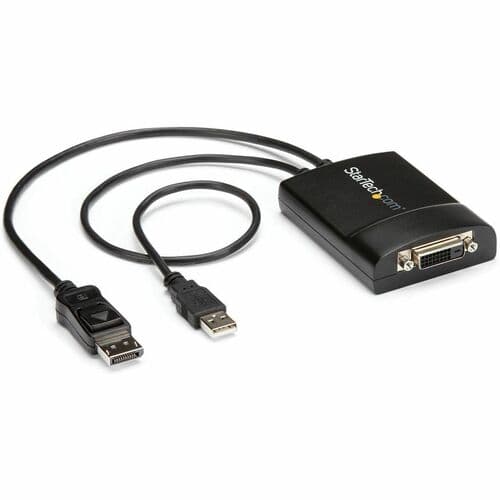

DISPLAYPORT TO DVI ADAPTER - DP 1.2 TO DVI-D VIDEO CONVERTER DONGLE
SKU: QR2304VPN: DP2DVID2
DISPLAYPORT TO DVI ADAPTER - DP 1.2 TO DVI-D VIDEO CONVERTER DONGLE
Key Features

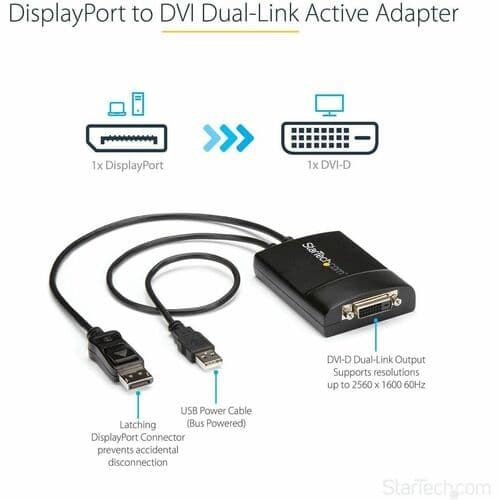

- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D dual-link adapter connects a DVI display supporting 2560x1600 60Hz (dual-link) or 1920x1200/1080p 120Hz (single-link); HDCP compliant; | 15" (37cm) attached cable | USB-Powered | EDID pass-through
- COMPATIBILITY: Active video converter supports DP (single mode) or DP++ (multi-mode) source including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations

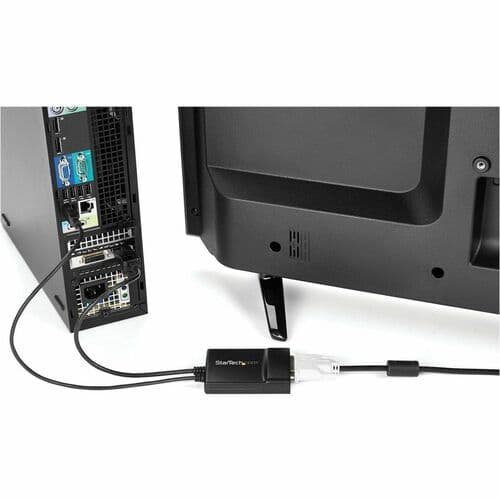

- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation | Compact design |Tested w/ DVI cables up to 25ft | Supports widescreen/ultrawide & Apple Cinema Display HD | Ideal for digital signage
- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching nickel-plated DP connector with gold-plated contacts ensure a solid host connection | Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection | 18" (46cm) USB cable
- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS; DisplayPort male to DVI female adapter dongle
Request a Quote on This Product
Adding to inquiry lets you bundle multiple products into a single quote request.
Overview
The DP2DVID2 DisplayPort® to DVI (Dual-Link) Adapter actively converts the output signal from a DisplayPort video source for use with a DVI-D display (monitor, etc.) or projector, helping to eliminate the equipment costs of upgrading a DVI display to a newer model for the sake of compatibility. The adapter supports high resolution video (up to 2560x1600 at 60Hz), maintaining the outstanding graphical performance from a DisplayPort-equipped desktop video card, laptop or MacBook®. DP2DVID2 performs an active DisplayPort-DVI conversion that is suitable for video sources that output either multimode (DP++) or single-mode DisplayPort signals. This ensures the adapter can be used even with graphics cards that aren't capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards. Back by StarTech.com 3-year warranty, with free lifetime technical support.
Tech Specs
| Width | 2.5" |
|---|---|
| Height | 0.9" |
| Features | Screw Lock |
| Brand Name | StarTech.com |
| Cable Length | 1.22 ft |
| Color Family | Black |
| Manufacturer | StarTech.com |
| Product Name | DisplayPort to DVI Adapter |
| Product Type | Video Adapter |
| Product Color | Black |
| Contact Plating | Gold |
| Connector Plating | Nickel |
Show all 27 specsShow fewer
| Country of Origin | China |
|---|---|
| Packaged Quantity | 1 Each |
| Weight (Approximate) | 5.60 oz |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmentally Friendly | Yes |
| Manufacturer Part Number | DP2DVID2 |
| Certifications & Standards | <ul><li>CE</li><li>FCC</li></ul> |
| Connector Type on First End | DisplayPort Digital Audio/Video - Male |
| Environmental Certification | EU RoHS |
| Connector Type on Second End | DVI-D (Dual-Link) Digital Video - Female |
| Manufacturer Website Address | http://www.startech.com |
| Connector Gender on First End | Male |
| Connector Gender on Second End | Female |
| Connector on First End Details | 1 x 20-pin DisplayPort Digital Audio/Video - Male |
| Connector on Second End Details | 1 x 19-pin DVI-D (Dual-Link) Digital Video - Female |
